Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Z&H |
| Model Number: | 5411W MBR |
| Certifiexcavatorion: | ISO9001:2008 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case,By carton ,Customer Requirement |
| Delivery Time: | 2-7 work days |
| Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
| Supply Ability: | 3000 per day |

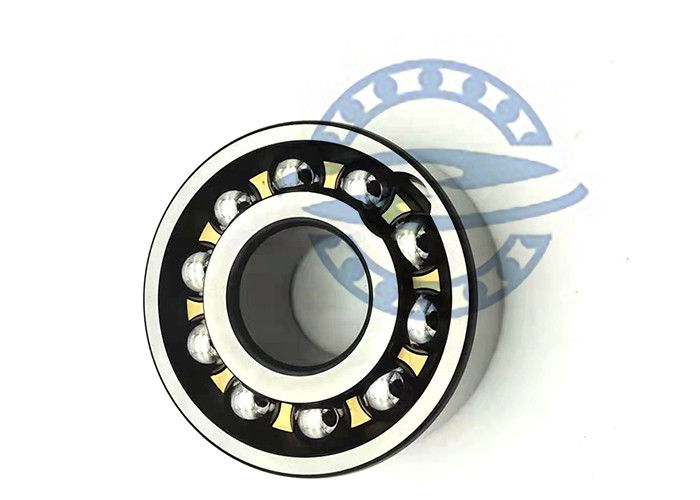

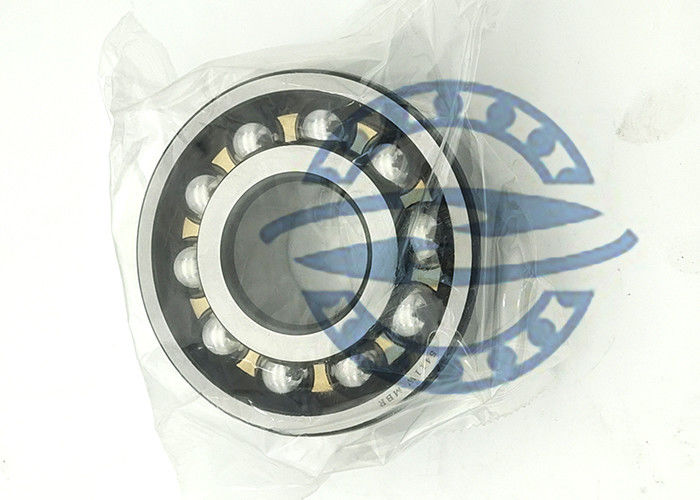

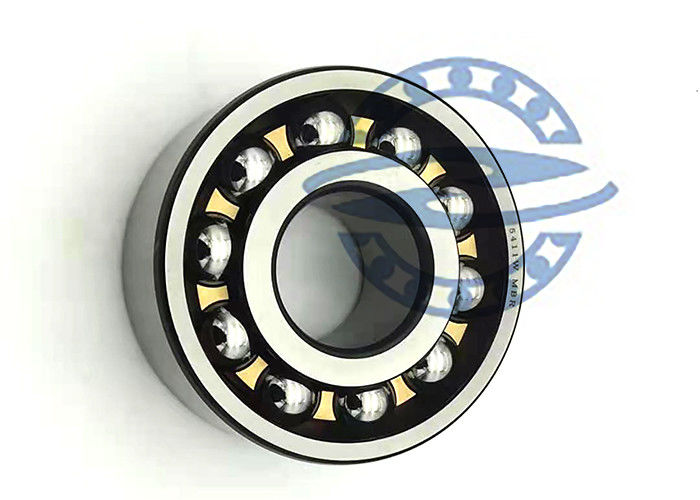

| Name: | Angular Contact Ball Bearing | Number No: | 5411W MBR |
|---|---|---|---|
| Size: | 55*140*63.5 Mm | Weight: | 5 Kg |
| Material: | Chrome Steel | Precision Rating: | P0 P6 P5 P4 P2 |
| Package: | 1pc/plastic Bag + Color Box +carton + Pallet | Service: | OEM Customized Services |
| High Light: | 5411W Angular Contact Ball Bearing,55MM Angular Contact Ball Bearing,P6 Angular Contact Ball Bearing |
||
| New Designations : | 5411W | |
| Main demensions : | 55 × 140 × 63.5 | Bore Dia × Outside Dia × Width Dia (mm) |
| ID : | 55 mm | Inside diameter/Bore size |
| OD : | 140 mm | Outside diameter |
| T(B) : | 63.5 mm | Thickness/high/width |
| M : | 5 kg | Weight, Mass |
| excavatoregory : | Double row angular contact ball bearings |
| Designation | Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Mass | ||||
| dynamic | static | Reference speed | Limiting speed | ||||||
| d | D | B | C | C0 | Pu | ||||
| 3200ATN9 | 10 | 30 | 14 | 7,61 | 4,3 | 0,183 | 22000 | 24000 | 0,051 |
| 3200A-2ZTN9/MT33 | 10 | 30 | 14 | 7,61 | 4,3 | 0,183 | 22000 | 24000 | 0,051 |
| 3200A-2RS1TN9/MT33 | 10 | 30 | 14 | 7,61 | 4,3 | 0,183 | - | 17000 | 0,051 |
| 3200A-2RS1 | 10 | 30 | 14,3 | 7,61 | 4,3 | 0,183 | - | 17000 | 0,051 |
| 3200A-2Z | 10 | 30 | 14,3 | 7,61 | 4,3 | 0,183 | 22000 | 24000 | 0,051 |
| 3201A-2Z | 12 | 32 | 15,9 | 10,1 | 5,6 | 0,24 | 20000 | 22000 | 0,058 |
| 3201A-2RS1 | 12 | 32 | 15,9 | 10,1 | 5,6 | 0,24 | - | 15000 | 0,058 |
| 3201A-2RS1TN9/MT33 | 12 | 32 | 15,9 | 10,1 | 5,6 | 0,24 | - | 15000 | 0,058 |
| 3201A-2ZTN9/MT33 | 12 | 32 | 15,9 | 10,1 | 5,6 | 0,24 | 20000 | 22000 | 0,058 |
| 3201ATN9 | 12 | 32 | 15,9 | 10,1 | 5,6 | 0,24 | 20000 | 22000 | 0,058 |
| 3202ATN9 | 15 | 35 | 15,9 | 11,2 | 6,8 | 0,285 | 17000 | 18000 | 0,066 |
| 3202A-2ZTN9/MT33 | 15 | 35 | 15,9 | 11,2 | 6,8 | 0,285 | 17000 | 18000 | 0,066 |
| 3202A-2RS1TN9/MT33 | 15 | 35 | 15,9 | 11,2 | 6,8 | 0,285 | - | 14000 | 0,066 |
| 3202A-2RS1 | 15 | 35 | 15,9 | 11,2 | 6,8 | 0,285 | - | 14000 | 0,066 |
| 3202A-2Z | 15 | 35 | 15,9 | 11,2 | 6,8 | 0,285 | 17000 | 18000 | 0,066 |
| 3302A-2Z | 15 | 42 | 19 | 15,1 | 9,3 | 0,4 | 15000 | 16000 | 0,13 |
| 3302A-2RS1 | 15 | 42 | 19 | 15,1 | 9,3 | 0,4 | - | 12000 | 0,13 |
| 3302A-2RS1TN9/MT33 | 15 | 42 | 19 | 15,1 | 9,3 | 0,4 | - | 12000 | 0,13 |
| 3302ATN9 | 15 | 42 | 19 | 15,1 | 9,3 | 0,4 | 15000 | 16000 | 0,13 |
| 3302A-2ZTN9/MT33 | 15 | 42 | 19 | 15,1 | 9,3 | 0,4 | 15000 | 16000 | 0,13 |
| 3203A-2RS1TN9/MT33 | 17 | 40 | 17,5 | 14,3 | 8,8 | 0,365 | - | 12000 | 0,096 |
| 3203A-2ZTN9/MT33 | 17 | 40 | 17,5 | 14,3 | 8,8 | 0,365 | 15000 | 16000 | 0,096 |
| 3203ATN9 | 17 | 40 | 17,5 | 14,3 | 8,8 | 0,365 | 15000 | 16000 | 0,096 |
| 3203A-2RS1 | 17 | 40 | 17,5 | 14,3 | 8,8 | 0,365 | - | 12000 | 0,1 |
| 3203A-2Z | 17 | 40 | 17,5 | 14,3 | 8,8 | 0,365 | 15000 | 16000 | 0,1 |
| 3303A-2Z | 17 | 47 | 22,2 | 21,6 | 12,7 | 0,54 | 14000 | 14000 | 0,18 |
| 3303A-2RS1 | 17 | 47 | 22,2 | 21,6 | 12,7 | 0,54 | - | 11000 | 0,18 |
| 3303A-2RS1TN9/MT33 | 17 | 47 | 22,2 | 21,6 | 12,7 | 0,54 | - | 11000 | 0,18 |
| 3303A-2ZTN9/MT33 | 17 | 47 | 22,2 | 21,6 | 12,7 | 0,54 | 14000 | 14000 | 0,18 |
| 3303ATN9 | 17 | 47 | 22,2 | 21,6 | 12,7 | 0,54 | 14000 | 14000 | 0,18 |
| 3204ATN9 | 20 | 47 | 20,6 | 20 | 12 | 0,51 | 14000 | 14000 | 0,16 |
| 3204A-2ZTN9/MT33 | 20 | 47 | 20,6 | 20 | 12 | 0,51 | 14000 | 14000 | 0,16 |
| 3204A-2RS1TN9/MT33 | 20 | 47 | 20,6 | 20 | 12 | 0,51 | - | 10000 | 0,16 |
| 3204A | 20 | 47 | 20,6 | 20 | 12 | 0,51 | 14000 | 14000 | 0,16 |
| 3204A-2RS1 | 20 | 47 | 20,6 | 20 | 12 | 0,51 | - | 10000 | 0,16 |
| 3204A-2Z | 20 | 47 | 20,6 | 20 | 12 | 0,51 | 14000 | 14000 | 0,16 |
| E2.3204A-2Z | 20 | 47 | 20,6 | 20 | 12 | 0,51 | 14000 | 14000 | 0,16 |
| 3304A-2Z | 20 | 52 | 22,2 | 23,6 | 14,6 | 0,62 | 13000 | 13000 | 0,22 |
| E2.3304A-2Z | 20 | 52 | 22,2 | 23,6 | 14,6 | 0,62 | 13000 | 13000 | 0,22 |
| 3304A-2RS1 | 20 | 52 | 22,2 | 23,6 | 14,6 | 0,62 | - | 9000 | 0,22 |
| 3304A | 20 | 52 | 22,2 | 23,6 | 14,6 | 0,62 | 13000 | 13000 | 0,22 |
| 3304A-2RS1TN9/MT33 | 20 | 52 | 22,2 | 23,6 | 14,6 | 0,62 | - | 9000 | 0,22 |
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
