Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22317CA
Long service time 22317CA 22317E 22317W33 CHROME STEEL 85*180*60mm
Product introduction(Good Bearing and good price)
22317CA Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing.
| d |
85 mm
|
Bore diameter |
|---|---|---|
| D |
180 mm
|
Outside diameter |
| B |
60 mm
|
Width |
| d2 |
≈108 mm
|
Shoulder diameter of inner ring |
| D1 |
≈154 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.99 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.166 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
577 kN
|
|---|---|---|
| Basic static load rating | C0 |
620 kN
|
| Fatigue load limit | Pu |
61 kN
|
| Reference speed |
2 800 r/min
|
|
| Limiting speed |
3 800 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| da |
min.99 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.166 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| PART NO | 22317 CA C3 W33 |
|---|---|
| DESCRIPTION | 22317 CA C3 W33 |
| D | 85mm (3.3465 inch) |
| D | 180mm (7.0866 inch) |
| B | 60mm (2.3622 inch) |
| BASIC DYNAMIC RATING CR | 431 kN (96893 pounds) |
| BASIC STATIC RATING COR | 539 kN (121172 pounds) |
| LIMITING SPEED GREASE (RPM) | 2, 000 |
| LIMITING SPEED OIL (RPM) | 2, 600 |
| RS (MIN) | 3mm (0.1181 inch) |
| E | 0.34 |
| Y1 | 2 |
| Y2 | 3 |
| Y0 | 2 |
| WEIGHT UNIT OF MEASURE: | EA |
|---|---|
| WEIGHT: | 16.87 |
| SALE QTY MULTIPLE: | 1 |
| PACKAGED LENGTH: | 7.24 |
| PACKAGED WIDTH: | 2.48 |
| PACKAGED HEIGHT: | 7.24 |
| NO. LINKS/FT. : | 0 |
| BORE DIA: | 85mm (3.3465 inch) |
| BORE CONFIGURATION: | Cylindrical |
| SERIES: | 22300 |
| CAGE: | CA - 1 pc Brass |
| RADIAL CLEARANCE: | C3 |
| ANGULAR MISALIGNMENT: | 2° |
| BORE DIA | 85mm (3.3465 inch) |
|---|---|
| BORE CONFIGURATION | Cylindrical |
| SERIES | 22300 |
| CAGE | CA - 1 pc Brass |
| RADIAL CLEARANCE | C3 |
| ANGULAR MISALIGNMENT | 2° |
22317CA Collection
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP207 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | 6213 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | NUP308 |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | KMF41-PC60-7 |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | M2X63 |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 |

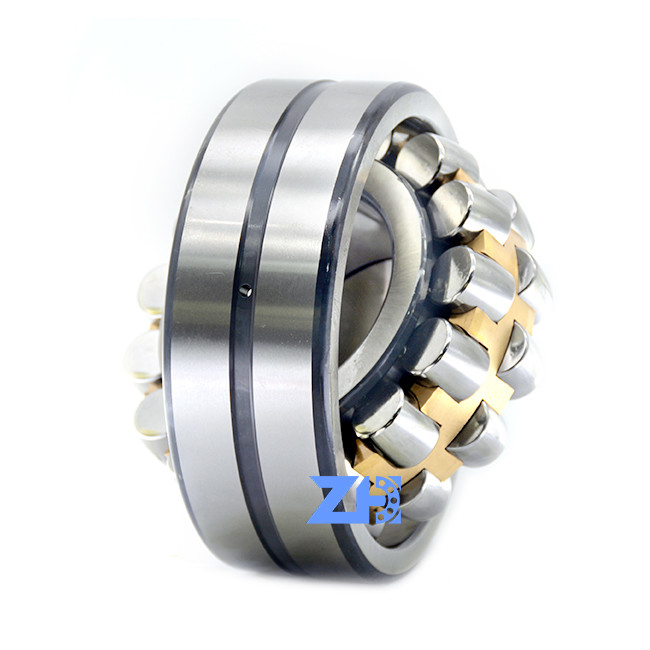

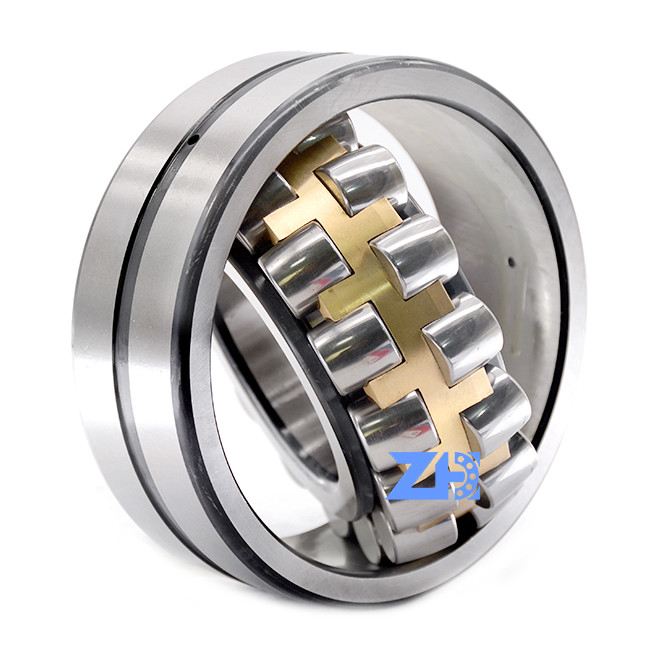

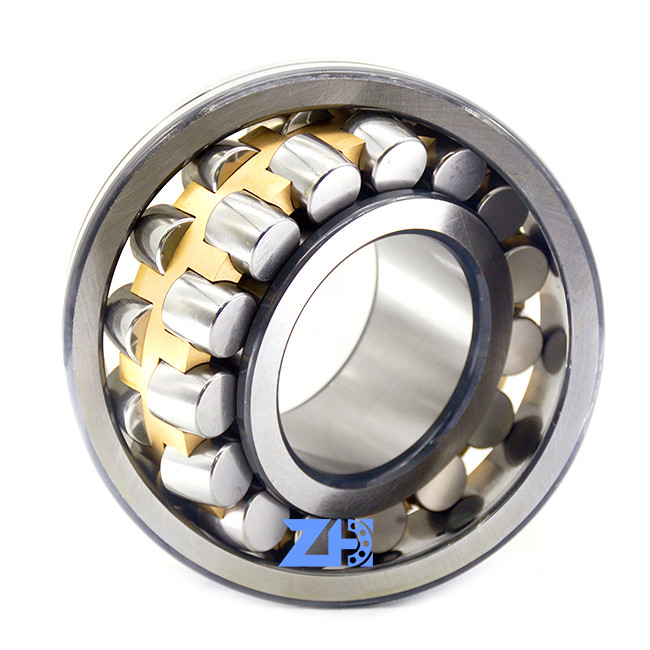

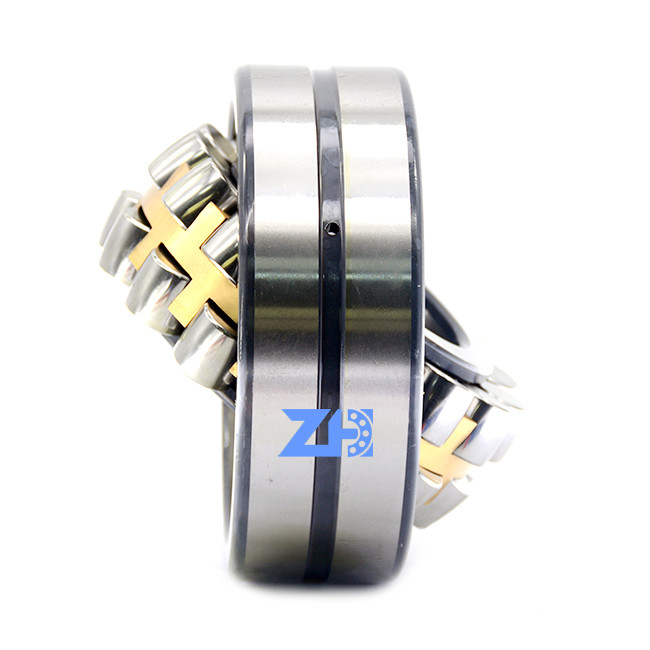

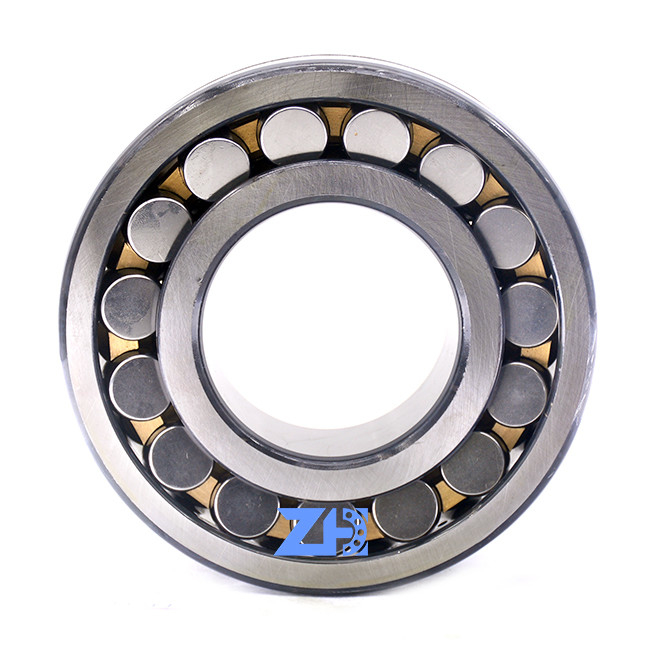

Picture show
