Place of Origin: | China |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | GE50ES |
Certifiexcavatorion: | ISO9001:2008 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | interview |
Packaging Details: | Wooden case,By carton or on request. |
Delivery Time: | 2-7 work days |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | 30000 Set/Sets per Month |
Product Name: | Spherical Joint Bearing | Model: | GE50ES |
---|---|---|---|
Packing: | Standard Export Package,Clients Requested | Size: | 50*75*35mm |
MOQ: | 1 | Transportation: | Air Transportation,Express Delivery,follow Clients |
Quality: | High Quality | Delivery: | 3-7 Days |
High Light: | 7861-92-2310,PC200-3 Excavator Spare Parts,PC200-6 Excavator Spare Parts |

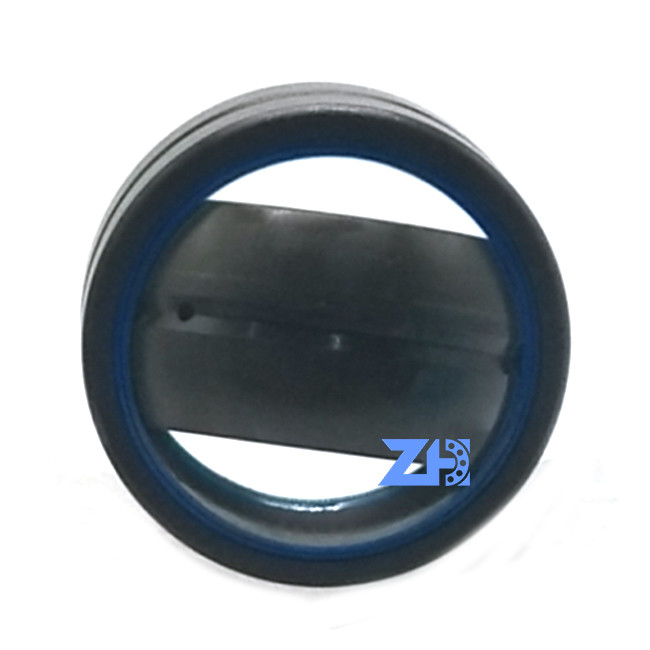

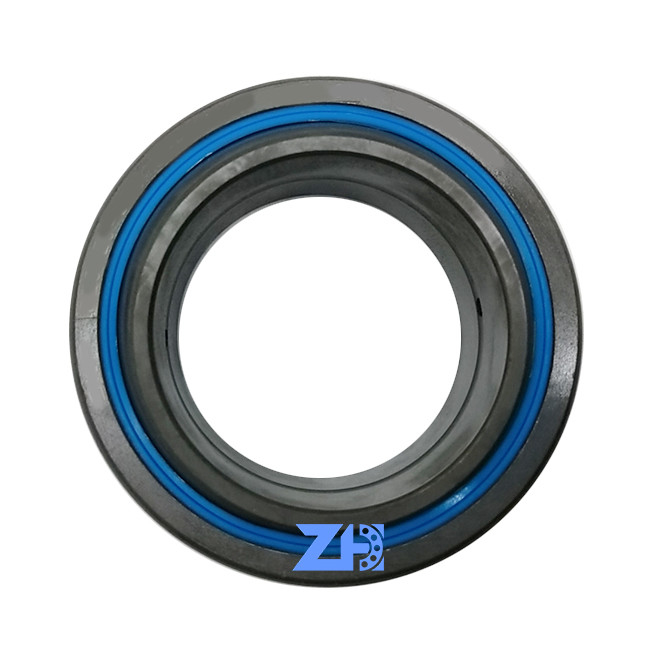

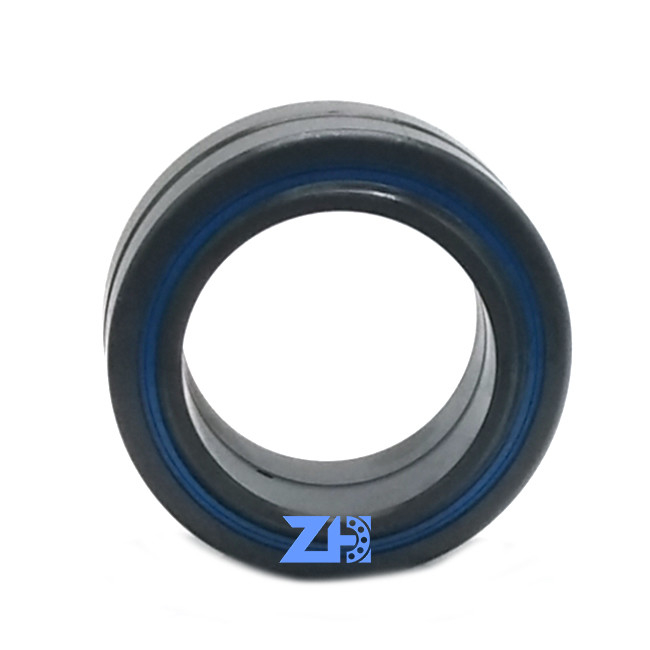

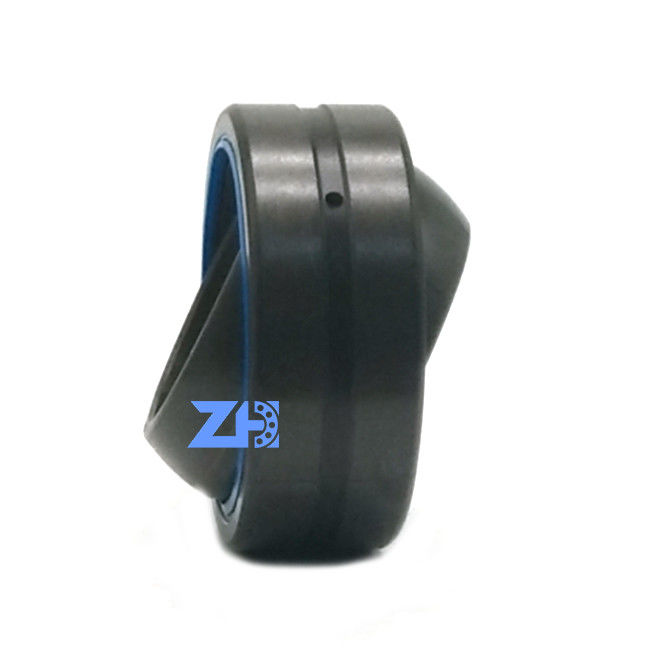

Spherical joint bearing 50*75*35mm GE50ES GE50ES-2RS GE50ES-ZZ GE50ES-RS
Product introduction(Good bearings, the use of high quality materials, good factory ZH, the use of high quality materials at preferential prices in large quantities)
GE50ESRadial spherical plain bearings are mainly used in high-speed, heavy-load, high-precision industrial equipment, such as:
1. Rail transit equipment, such as bogies and gearboxes of high-speed trains;
2. Machine tool spindles, used in high-speed cutting, precision machining and other fields;
3. High-speed centrifugal compressor in aero-engine;
4. Heavy machinery and equipment, such as cranes, concrete pump trucks, cement mixer trucks, etc.;
5. Robots, textile machinery, automated production lines, etc. In general, radial spherical plain bearings are more suitable for high-speed, high-load, and high-precision mechanical equipment than other types of bearings, so they are widely used in various industrial equipment.
d |
50 mm
|
Bore diameter |
---|---|---|
D |
75 mm
|
Outside diameter |
B |
35 mm
|
Width |
C |
28 mm
|
Width outer ring |
α |
6 °
|
Angle of tilt |
dk |
66 mm
|
Raceway diameter inner ring |
b |
4.6 mm
|
Width annular lubrication groove at outer ring |
b1 |
4.8 mm
|
Width annular lubrication groove at inner ring |
M |
3 mm
|
Diameter lubrication hole (outer ring) |
r1 |
min.0.6 mm
|
Chamfer dimension bore |
r2 |
min.1 mm
|
Chamfer dimension outer rin |
da |
min.54.6 mm
|
Abutment diameter shaft |
---|---|---|
da |
max.56 mm
|
Abutment diameter shaft |
Da |
min.62.7 mm
|
Abutment diameter housing |
Da |
max.70.5 mm
|
Abutment diameter housing |
ra |
max.0.6 mm
|
Fillet radius shaft |
rb |
max.1 mm
|
Fillet radius housing |
Basic dynamic load rating | C |
156 kN
|
---|---|---|
Basic static load rating | C0 |
780 kN
|
Specific dynamic load factor | K |
100 N/mm²
|
Specific static load factor | K0 |
500 N/mm²
|
Material constant | KM |
330
|
GE50ES Collection
NUP2209 | NUP207 | SG20 | TM09 | HMGF35 | NUP2206 | AP5S67 | NUP2207 |
NUP2212 | 6213 | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | NUP2207 |
M2X146 | NUP308 | NUP309 | DNB50/60 | NUP2211=250 | 30309D=110 | T7FC055=300 | JMF195 |
NUP309 | JMF29 | NUP206 | NUP307 | NUP207 | NUP207/NUP306 | NUP309 | NUP2212 |
NUP2212 | HMGF36 | 6305M | NUP2209=160 | NUP307 | NUP309=180 | JMF250 | NUP2211 |
32205 | NUP206=100 | GM17VA | NUP2207=140 | NUP2211 | NUP309=180 | NUP206E | 30312D=155 |
T7FC060 | NUP308 | JMV-44/22 | 30312D | HMGC48 | NUP310 | 15578 | NUP307 |
M2X150 | 30314D=250 | KMF125-PC200-7 | 30312D | NUP309 | 6008 | NUP306 | 30311D |
M2X170 | 30312D | NUP2310 | 30309D | 30312D | MAG150 | 30312D | T7FC055 |
M2X210 | 30314D | 30210 | 30210 | GM35VA | NUP309 | NIP2310 | MAG120 |
HMGF57 | JMF151 | 30311D | KMF125-PC200-8 | 30312D=155 | NUP2209 | NUP208E | NUP2208=210 |
NUP306 | 11749/11710 | SG04 | KMF160-PC360-7 | M2X96 | M2X120 | NUP308=14 | NUP307=110 |
NUP307 | KMF41-PC60 | SG025 | MSG-27P | MCB172 | 32207 | T7FC065 | NUP308 |
M5X130 | NUP205E | 4T-30307 | NUP309 | NUP307 | M2X55 | JMV-53/31 | GM35VL |
M5X180 | NUP207=120 | SG08 | T7FC055 | NUP2208 | M2X63 | MAG85 | NUP2206=130 |
