NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208

C9 Excavator Engine Parts

320-3060 Oil Pressure Sensor

276-6793

Place of Origin:

CHINA

Brand Name:

QIEAL ZH

Model Number:

NF 208

Contact Us
Request A Quote
Product Details
Weight:
0,39 KGS
Inner Diameter [d]:
40 Mm
Outer Diameter [D]:
80 Mm
Inner Ring Width [B]:
18 Mm
Precision Rating:
P0,P6, P5, P4
Vibration:
ZV1, ZV2, ZV3, Or As Requested
Packaging Details:
Standard Export Package
Type:
Roller
Structure:
Cylindrical
Model Number:
NF-208
Highlight:

C9 Excavator Engine Parts

,

320-3060 Oil Pressure Sensor

,

276-6793

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiation
Packaging Details
Wooden case,By carton or on request.
Delivery Time
2-7 work days
Payment Terms
L/C,D/A,D/P,T/T, Western Union, Alibaba online payment,Paipal,etc.
Supply Ability
Negotiation
Product Description

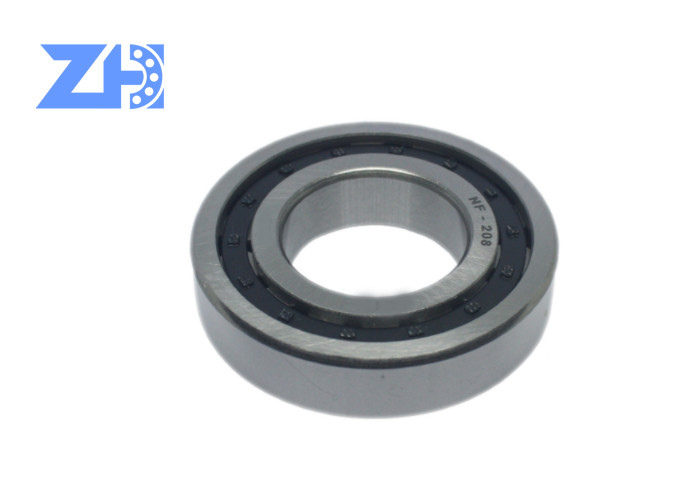

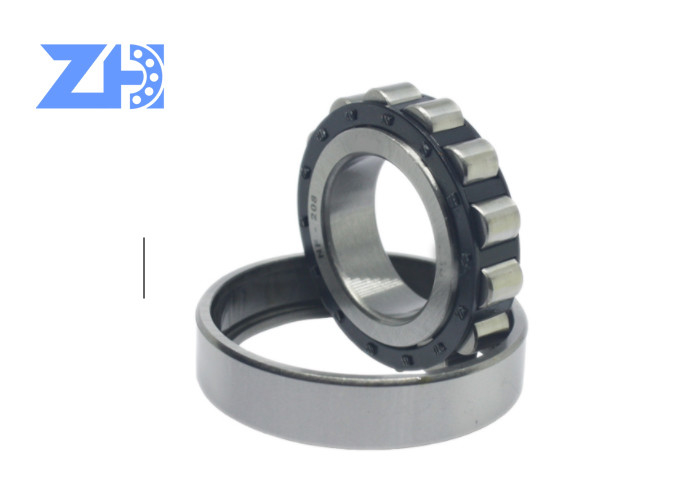

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208



Product Introduction:
NF-208 Cylindrical roller bearing is of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in appliexcavatorions involving heavy radial and impact loading.


The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for appliexcavatorions that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

The rollers of cylindrical roller bearings are a key component. Their geometry, the so-called logarithmic profile, provides an optimum stress distribution in the contact zones in the bearing, their surface finish maximizes lubricant film formation and optimizes rolling motion of the rollers. The benefits derived from this compared with traditional designs include enhanced operational reliability and a greater insensitivity to misalignment.
Type
Cylindrical Roller Bearing
Model
NF-208
Brand
YNR/OEM
d (mm)
40mm
Material
Chrome steel
D (mm)
80mm
Type
Open/Seal
B (mm)
18mm
Precision rate
P0, P6, P5, or as requested
Weight(lbs)
0.96lbs
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 0
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 1

PS: Please contact us if didn't find the bearing number you need~

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 2NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 3NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 4NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 5

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 6
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 7
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 8
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 9
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 10
More Bearings
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 11
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 12
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 13

Deep Groove Ball Bearing

Tapered Roller Bearing

Spherical Roller Bearing

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 14
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 15
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 16

Thin-section/wall Ball Bearing

Angular Contact Ball Bearing

Thrust Ball Bearing

NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 17
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 18
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 19

Cylindrical Roller Bearing

Thrust Roller Bearing

Full Complement Roller Bearing



Packing & Delivery
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 20
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 21
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 22
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 23

1. Normally use default industrial package with our own logo, customerized logo and marking is also acceptable.


2. Make special plywood box for big bearing or small bearing big order.

Our Service
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 24
NF-208 Cylindrical Roller Bearing NF208 NF 208 Cylindrical Roller Bearing NF 208 25

Leading time

--Normally we have most bearings in stock with plenty quantities, so we are able to ship the goods immediately once confirm your payment.
-- For big order or special new design bearing, we need around 20 days for production then ship out.

Payment terms

-- 30% paid in advance as deposit, the balance shall be cleared before shipping.

-- other payment methods: Paypal, WestUnion, etc.





FAQ

1,What about the MOQ?Can you accept sample order?
------Our company MOQ is 1pc,we can accept sample order.

2,Can you accept OEM/ODM?
------Yes,we can.Customizing according to your requirement or drawing.


3,Do you supply door to door service?
------By air or express(DHL,FEDEX,EMS etc.)


4,Could you tell me the materials of your bearings?
------ Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.

5, Your company is a factory or trading company?
------ We have our own factory,also doing trade.
