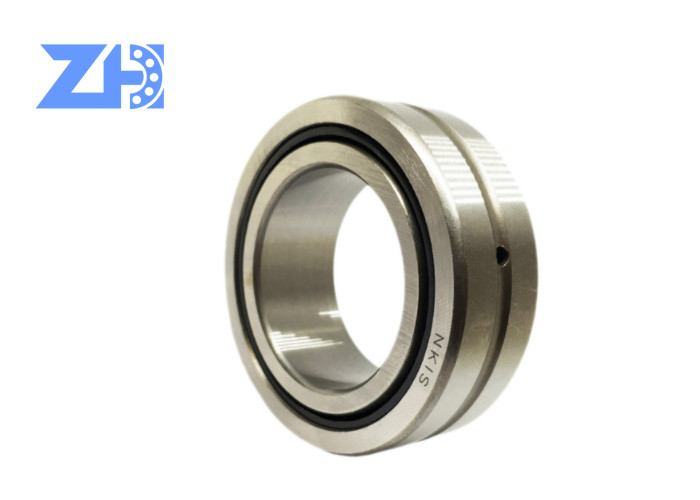

Heavy Duty NKIS 65 65X95X28MMneedle Roller Bearing With Inner Ring

Product Details:

Place of Origin:	CHINA
Brand Name:	QIEAL ZH
Model Number:	NKIS65
Certifiexcavatorion:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Customer Requirement
Delivery Time:	2-7 work days
Payment Terms:	L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.
Supply Ability:	100 per day

Contact Now

Detailed Product Description

Bore Size:	15 - 65 Mm	Weight:	0,65 KGS
Inner Diameter [d]:	65 Mm	Outer Diameter [D]:	95 Mm
Inner Ring Width [B]:	28 Mm	Inner Ring Type:	With Inner Ring
Seals Type:	Open, One Side Sealed,Double Sealed	Lubriexcavatorion:	Oil Grease
Structure:	Needle Bearing With Machined Rings	Appliexcavatorion:	Automotive.tractor.construction Machinery.rolling Mill
High Light:	MAG85 Final Drive Travel Motor , TM07F Final Drive Travel Motor

Heavy Duty NKIS 65 65X95X28MMneedle Roller Bearing With Inner Ring

Product Description

Machined-ring needle roller bearing include:Machined outer ring , Cage with needles,Separable inner ring

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-loexcavatoring bearings and are part of the group of radial needle roller bearings. These bearings comprise machined outer rings, needle roller and cage assemblies and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the appliexcavatorion. In contrast to the outer cups of drawn cup needle roller bearings, which are produced by forming methods, the bearing rings are machined. Due to their non-loexcavatoring bearing function, the bearings cannot guide the shaft axially in any direction.

NKI series Shaft diameter: 5-100mm
NKI5/12 NKI 5/16 NKI6/12 NKI6/16 NKI7/12 NKI 7/16 NKI9/12 NKI9/16 NKI10/16 NKI10/20 NKI12/16 NKI12/20 NKI15/16 NKI15/20 NKI17/16 NKI17/20 NKI20/16 NKI20/20 NKI22/16 NKI22/20 NKI25/20 NKI25/30 NKI28/20 NKI28/30 NKI30/20 NKI30/30 NKI32/20 NKI32/30 NKI35/20 NKI35/30 NKI38/20 NKI40/20 NKI40/30 NKI42/20 NKI42/30 NKI45/25 NKI45/35 NKI50/25 NKI50/35 NKI55/25 NKI55/35 NKI60/25 NKI60/35 NKI65/25 NKI65/35 NKI70/25 NKI70/35 NKI75/25 NKI75/35 NKI80/25 80/35 NKI85/26 NKI85/36
NKIS series Shaft diameter:15-65mm
NKIS15 15X35X20MM

NKIS17 17X37X20MM

NKIS 20 20X42X20MM

NKIS 25 25X47X22MM

NKIS 30 30X52X22MM

NKIS 35 35X58X22MM

NKIS 40m 40X65X22MM

NKIS 45 45X72X22MM

NKIS 50 50X80X28MM

NKIS 55 55X85X28MM

NKIS 60 60X90X28MM

NKIS 65 65X95X28MM
NA49 series:NA4900 NA4901 NA4902 NA4903 NA4904 NA4905NA4907 NA 4908 NA 4909 NA4910 NA4911 NA4912 NA4913 NA4914 NA4915 NA4916 NA4917 NA4918 NA4919 NA4920 NA4922 NA4924 NA4926 NA4928 NA49/28 NA19/32 NA49/22 NA69 Series: NA6901 NA6902 NA6903 NA6904 NA6905 NA6906 NA6907 NA6908 NA6909 NA6910 NA6911 NA6912 NA6913 NA6914 NA6915 NA6916 NA6917 NA6918 NA6919 NA69/22 NA69/32 NA69/28
NA48 series:NA4822 NA4824 NA4826 NA4828 NA4830 NA4832 NA4834 NA4836 NA4838 NA4840 NA4844 NA4848 NA4852 NA4856 NA4860 NA4864 NA4868 NA4872 NA4876

Shaft diameter	Model number	Dimensions					Basic Load Ratings		Limiting
		d	Fw	D	B	r	Cr	Cor	Speed
mm						min.	kN	kN	rpm
5	NKI 5/12TN	5	8	15	12	0.3	3.9	4.1	32000
	NKI 5/16TN	5	8	15	16	0.3	5.1	5.8	32000
6	NKI 6/12TN	6	9	16	12	0.3	4.5	5	30000
	NKI 6/16	6	9	16	16	0.3	5.9	7.1	30000
7	NKI 7/12TN	7	10	17	12	0.3	4.75	5.5	29000
	NKI 7/16TN	7	10	17	16	0.3	6.2	7.8	29000
9	NKI 9/12	9	12	19	12	0.3	6.4	7.1	27000
	NKI 9/16	9	12	19	16	0.3	9	11	27000
10	NKI 10/16	10	14	22	16	0.3	11.0	12.5	19000
	NKI 10/20	10	14	22	20	0.3	12.8	15.6	19000
12	NKI 12/16	12	16	24	16	0.3	11.5	13.8	17000
	NKI 12/20	12	16	24	20	0.3	14.6	18.8	17000
15	NKI 15/16	15	19	27	16	0.3	13.8	18.5	14000
	NKI 15/20	15	19	27	20	0.3	17.6	25.1	14000
17	NKI 17/16	17	21	29	16	0.3	14.3	19.8	13000
	NKI 17/20	17	21	29	20	0.3	18.1	26.9	13000
20	NKI 20/16	20	24	32	16	0.3	15.1	22.3	12000
	NKI 20/20	20	24	32	20	0.3	19.3	30.3	12000
22	NKI 22/16	22	26	34	16	0.3	16.1	24.7	11000
	NKI 22/20	22	26	34	20	0.3	20.4	33.5	11000
25	NKI 25/20	25	29	38	20	0.3	22.1	33.9	10000
	NKI 25/30	25	29	38	30	0.3	33.5	57.9	9500
28	NKI 28/20	28	32	42	20	0.3	23.5	37.7	9000

30	NKI 30/20	30	35	45	20	0.3	24300	41500	13000

32	NKI 32/20	32	37	47	20	0.3	24900	43500	12000

35	NKI 35/20	35	40	50	20	0.3	26000	47000	11000

38	NKI 38/20	38	43	53	20	0.3	27000	51000	11000

40	NKI 40/20	40	45	55	20	0.3	27500	53000	10000

42	NKI 42/20	42	47	57	20	0.3	28500	56000	10000

45	NKI 45/25	45	50	62	25	0.6	38000	74000	9000

50	NKI 50/25	50	55	68	25	0.6	43.7	81.7	6000

55	NKI 55/25	55	60	72	25	0.6	43.1	90.7	5500

60	NKI 60/25	60	68	82	25	0.6	48.6	100.6	4900

65	NKI 65/25	65	73	90	25	1.0	54.2	100.8	4600

70	NKI 70/25	70	80	95	25	1.0	54.7	113.4	4100

75	NKI 75/25	75	85	105	25	1.0	71.7	126.5	3900

80	NKI 80/25	80	90	110	25	1.0	74.9	136.0	3700

85	NKI 85/26	85	95	115	26	1.0	79.5	149.4	3600

90	NKI 90/26	90	100	120	26	1.0	82.3	159.5	3500

95	NKI 95/26	95	105	125	26	1.0	83.6	164.8	3300

100	NKI 100/30	100	110	130	30	1.1	100.9	213.9	3100

110	NKI 110/30	110	120	140	30	1.1	113	275	3900

Heavy Duty NKIS 65 65X95X28MMneedle Roller Bearing With Inner Ring 2

1	Needle Roller and Cage Assemblies	K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
1	Needle Roller and Cage Assemblies	PCJ
2	Needle Roller and Cage Assemblies for Connecting Rod	PK
2	Needle Roller and Cage Assemblies for Connecting Rod	KBK
3	Drawn Cup Needle Roller Bearings	HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
		HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
		DCL
		HCK
4	Machined-Ring Needle Roller Bearings	RNA48, RNA49, RNA59, RNA69, NK, NKS
		NA48, NA49, NA59, NA69, NK+IR, NKS+IR
		MR
		MR+MI
		RNA49‥L, RNA49‥LL
		NA49‥L, NA49‥LL
5	Machine-ring Needle Roller Bearings Separable Type	RNAO, RNAO‥ZW
5	Machine-ring Needle Roller Bearings Separable Type	NAO, NAO‥ZW
6	Self Aligning Needle Roller Bearings	RPNA‥R
6	Self Aligning Needle Roller Bearings	PNA‥R
7	Inner ring	IR
7	Inner ring	MI
8	Clearance-Adjustable Needle Roller Bearings	RNA49‥S
8	Clearance-Adjustable Needle Roller Bearings	NA49‥S
9	Complex Bearings	NKX, NKX‥Z
		NKX+IR, NKX‥Z+IR
		NKXR, NKXR‥Z
		NKXR+IR, NKXR‥Z+IR
		NKIA
		NKIB
		AXN
		ARN
10	Cam Followers	KRM‥XH, KRMV‥XH
		KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
		KR, KR‥X, KR‥LL, KR‥XLL
		KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
		KRV, KRV‥X, KRV‥LL, KRV‥XLL
		KRT, KRT‥X, KRT‥LL, KRT‥XLL
		KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
		KRU, KRU‥X, KRU‥LL, KRU‥XLL
		KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
		NUKR‥H, NUKR‥XH
		NUKR, NUKR‥X
		NUKRT, NUKRT‥X
		NUKRU, NUKRU‥X
		CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
		CR, CR‥X, CR‥LL, CR‥XLL
		CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
		CRV, CRV‥X, CRV‥LL, CRV‥XLL
11	Roller Followers	RNAB2, RNAB2‥X
		NAB2, NAB2‥X
		RNA22‥LL, RNA22‥XLL
		NA22‥LL, NA22‥XLL
		NATR, NATR‥X, NATR‥LL, NATR‥XLL
		NATV, NATV‥X, NATV‥LL, NATV‥XLL
		NACV, NACV‥X, NACV‥LL, NACV‥XLL
		NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
		NUTW, NUTW‥X
12	Thrust Roller Bearings	AXK11, AS11, WS811, GS811
		811, 812, 893, 874, K811, K812, K893, K874, WS811
		WS812, WS893, WS874, GS811, GS812, GS893, GS874
		AXA21, ARA821, ZS
		AXB21, ARB821, ZS
13	One-way Clutches	HF
13	One-way Clutches	HFL
