Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Model Number: | 22207 CC W33 |
Certifiexcavatorion: | ISO-9001 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | Negotiation |
Delivery Time: | 5-7 work days |
Payment Terms: | L/C,,D/P,T/T, Alibaba online payment,Paypal,etc. |
Supply Ability: | 500 per day |
Weight: | 0,43 KGS | Inner Diameter [d]: | 35 Mm |
---|---|---|---|
Outer Diameter [D]: | 72 Mm | Inner Ring Width [B]: | 23 Mm |
Bore Type: | Cylindrical | Precision Rating: | P0 P6 P5 P4 |
Structure: | Spherical | Size: | 35*72*23 Mm |
Material: | GCR15/ CHROME STEEL | Package: | Industrial Packing |
High Light: | E312 Excavator Spare Parts,E311 Excavator Spare Parts,E311 Final Drive Assy |

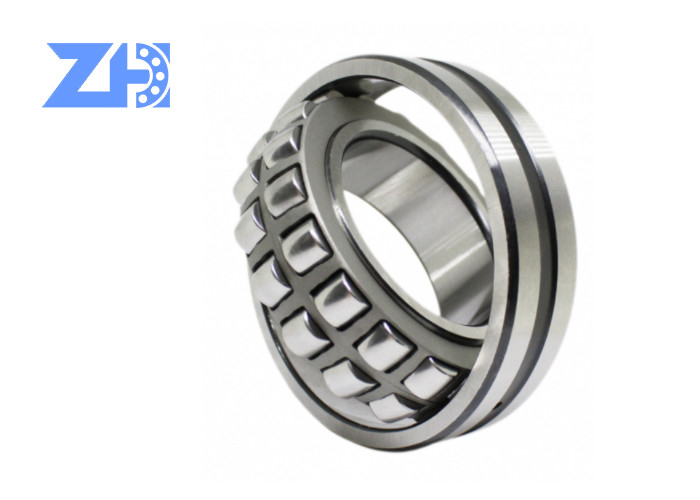

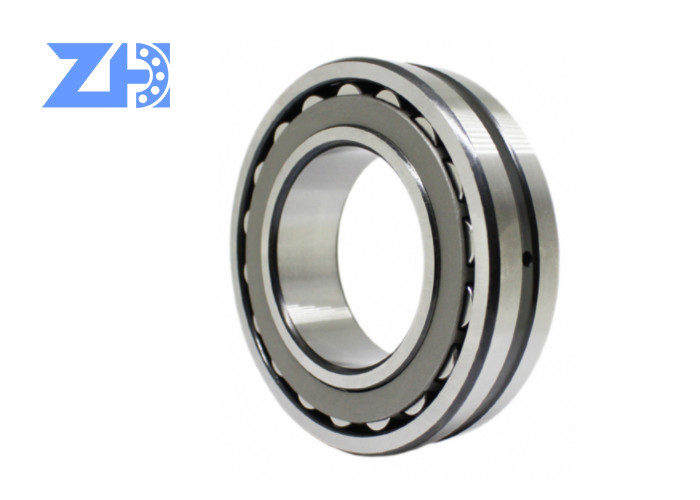

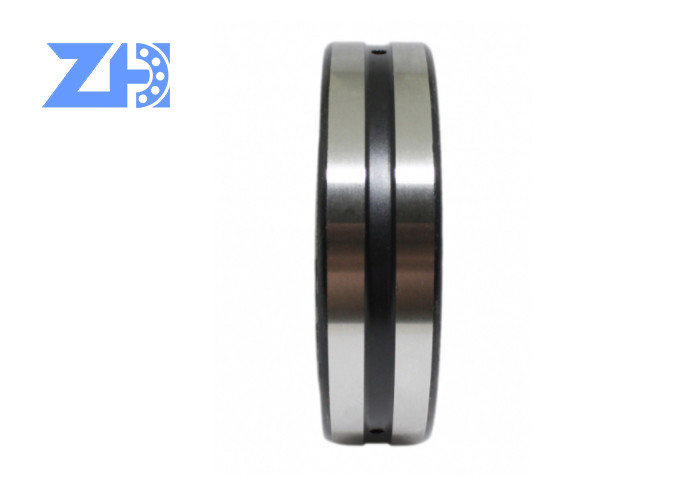

Spherical Roller Bearing 22207 E CC/W33 CA/W33 Size 35x72x23 35*72*23
22207 Spherical Roller Bearing
two rows of symmetrical rollers, a common sphere outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis.
self-aligning, pivoting inner ring, misalignments and shaft deflections can be compensated.
accommodate both heavy radial loads and axial loads in both directions .
The followings are several common designs of spherical roller bearings, they all use a cylindrical bore design.
CC Design Bearings have two stamped window-type steel cages, an inner ring without flanges and a floating guide ring centred on the inner ring .
CA Design Bearings have a machined double prong-type brass cage, an inner ring with a retaining flange on both sides and a floating guide ring centred on the inner ring .
E Design Bearings have two stamped window-type steel cages, an inner ring without flanges and a floating guide ring centred on the inner ring (d ≤ 65 mm) or on the cages(d > 65 mm).
designations: | 22207E 22207CC/W33 22207CA/W33 |
inside : | 35 mm |
outside : | 72 mm |
width : | 23 mm |
product mass : | ≈ 0.45 kg |
bore : | Cylindrical |
ring material : | GCR15/ Chrome Steel |
roller material : | GCR15/ Chrome Steel |
cage material : | Stamped Steel or Brass |
lubriexcavatorion design : | Annular groove and three lubriexcavatorion holes in the outer ring. |
sealed : | Open |
number of row : | Double Row |
precision rating : | P0 P6 P5 P4 |
appliexcavatorion industries : | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc. |
price list : | Negotiate |
service : | OEM or Customer Logo Acceptable and Sample Offer |
package : | As Customer Required |
more service : | plz Contact Us . The contact address is at the bottom. |
These products have both CC and CA design, and also provide cylindrical bore and tapered bore.
If you need spherical roller bearings with inner diameter ≥500mm or bearings of other designs,plz feel free to contact us.
,
Q1: Are you trading company or manufacturer?
A1: We are factory plus trader
Q2: Do you provide free samples?
A2: Yes, We provide samples.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
