Place of Origin: | CHINA |
Brand Name: | QIEAL ZH |
Model Number: | 6202 ZZC3 |
Certifiexcavatorion: | ISO9001:2008 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case,By carton or on request. |
Delivery Time: | 2-7 work days |
Payment Terms: | L/C, T/T, Western Union,, D/P |
Supply Ability: | 500 per day |
Type: | BALL | Structure: | Deep Groove |
---|---|---|---|
Applicable Industries: | Energy & Mining | Precision Rating: | P0 P6 P5 P4 P2 |
Seals Type: ZZ 2RS OPEN: | Standard Size | Number Of Row: | Single Row |
Material: | Chrome Steel GCR15 | Appliexcavatorion: | Washing Machine |
Cage: | Steel Cage.Brass Cage.Nylon Cage | Size: | 15*35*11mm |
High Light: | 3948095 Excavator Engine Parts,6CT Excavator Engine Parts,114mm Excavator Piston |

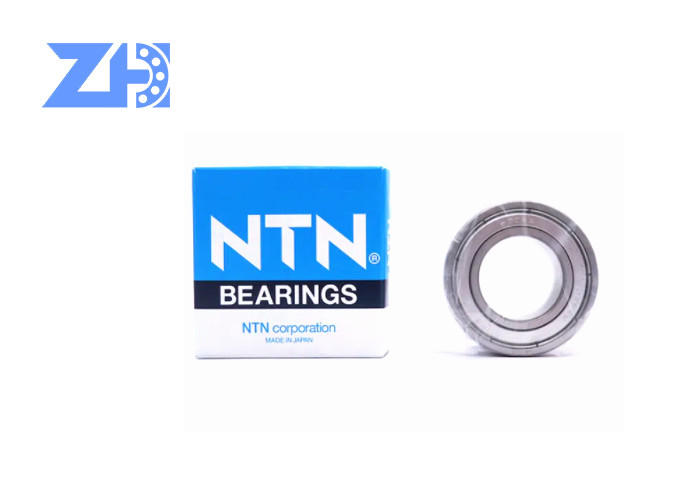

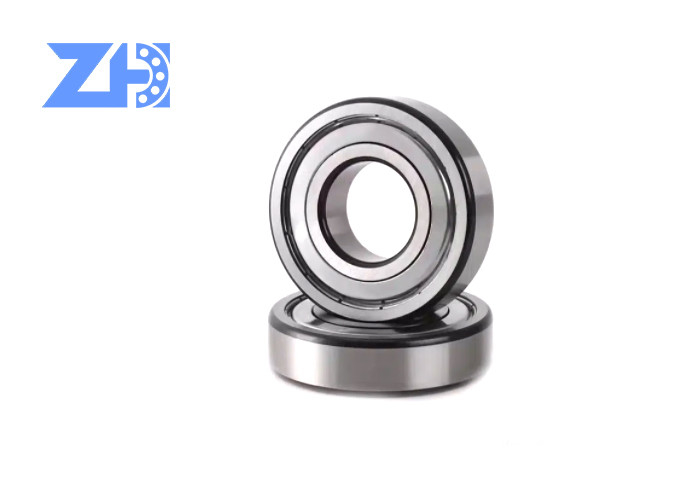

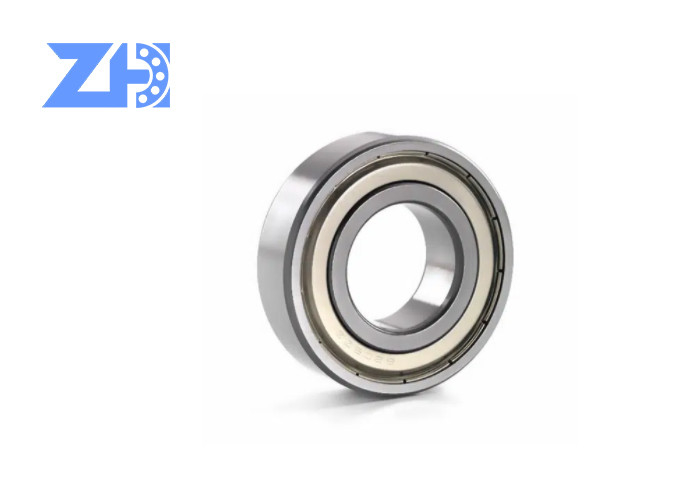

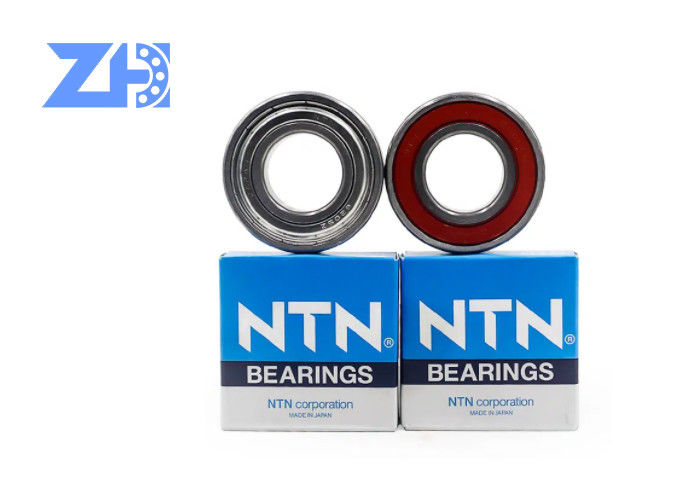

6202 ZZ C3 Ceiling Fan Deep Groove Ball Bearing 15*35*11mm
Overview of Deep groove ball bearings
The bearings are the most typical rolling bearings with extensive appliexcavatorions. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Bearing structure
Deep groove ball bearing has simple structure, compared with other types of easy to achieve high manufacturing accuracy, so easy to become series mass production, lower manufacturing costs, the use of very common. Deep groove ball bearing except basic types, there are various kinds of structural change, such as: deep groove ball bearings with dust cover, deep groove ball bearings with a rubber sealing ring, deep groove ball bearings with snap groove, deep groove ball bearings have high load capacity of ball filling gap, double deep groove ball bearings.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.
Cage material
Generally use steel stamping cage or solid brass cage. When the diameter is less than 400 mm, use steel stamping cage without rear code, solid brass multipurpose holder without rear code when the diameter greater than 400 mm.
Appliexcavatorion
The bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines
6200 SERIES BALL BEARINGS | LIGHT | |||||||||||||
NPB Part No. RFQ per item |
Bore | Outside Diameter | Width | Max. Fillet Radius |
Balls | Static Load Lbs. |
Dynamic Load Lbs. |
||||||
Frac. | Inch | Tol. | Frac. | Inch | Tol. | Tol. | +.0000 -.0050 |
No. | Diam. | ||||
Open | Seal/Shield | ||||||||||||
6200 | 10 | .3937 | -.0003 | 30 | 1.1811 | -.0004 | 9 | .3543 | .025 | 8 | 3/16 | 500 | 885 |
6201 | 12 | .4724 | -.0003 | 32 | 1.2598 | -.0005 | 10 | .3937 | .025 | 7 | 7/32 | 595 | 1055 |
6202 | 15 | .5906 | -.0003 | 35 | 1.3780 | -.0005 | 11 | .4331 | .025 | 8 | 7/32 | 675 | 1180 |
6203 | 17 | .6693 | -.0003 | 40 | 1.5748 | -.0005 | 12 | .4724 | .025 | 8 | 1/4 | 890 | 1500 |
6204 | 20 | .7874 | -.0004 | 47 | 1.8504 | -.0005 | 14 | .5512 | .040 | 8 | 5/16 | 1390 | 2220 |
6205 | 25 | .9843 | -.0004 | 52 | 2.0472 | -.0005 | 15 | .5906 | .040 | 9 | 5/16 | 1565 | 2415 |
6206 | 30 | 1.1811 | -.0004 | 62 | 2.4409 | -.0005 | 16 | .6299 | .040 | 9 | 3/8 | 2255 | 3360 |
6207 | 35 | 1.3780 | -.0005 | 72 | 2.8346 | -.0005 | 17 | .6693 | .040 | 9 | 7/16 | 3070 | 4430 |
6208 | 40 | 1.5748 | -.0005 | 80 | 3.1496 | -.0005 | 18 | .7087 | .040 | 9 | 15/32 | 3520 | 5035 |
6209 | 45 | 1.7717 | -.0005 | 85 | 3.3465 | -.0005 | 19 | .7480 | .040 | 9 | 1/2 | 4005 | 5655 |
6210 | 50 | 1.9685 | -.0005 | 90 | 3.5433 | -.0006 | 20 | .7874 | .040 | 10 | 1/2 | 4450 | 6065 |
6211 | 55 | 2.1654 | -.0006 | 100 | 3.9370 | -.0006 | 21 | .8268 | .060 | 10 | 9/16 | 5630 | 7500 |
6212 | 60 | 2.3622 | -.0006 | 110 | 4.3307 | -.0006 | 22 | .8661 | .060 | 10 | 5/8 | 6955 | 9065 |
6213 | 65 | 2.5591 | -.0006 | 120 | 4.7244 | -.0006 | 23 | .9055 | .060 | 10 | 21/32 | 7665 | 9900 |
6214 | 70 | 2.7559 | -.0006 | 125 | 4.9213 | -.0008 | 24 | .9449 | .060 | 10 | 11/16 | 8415 | 10715 |
Our services
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Appliexcavatorions
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specifiexcavatorion is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufacture of bearings for more than 20 years, "Quality is our culture".
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
D.Paypal
