Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
SK75-8
NJ308 NJ308ET2XU NJ308ET2XUP 2RNJ308ET2XUP2J NJ308ET2XUP2K NJ308ET2XUP2L NJ308ET2XUP2A NJ308ET2A NJ308ET2XUP2W
P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introduction

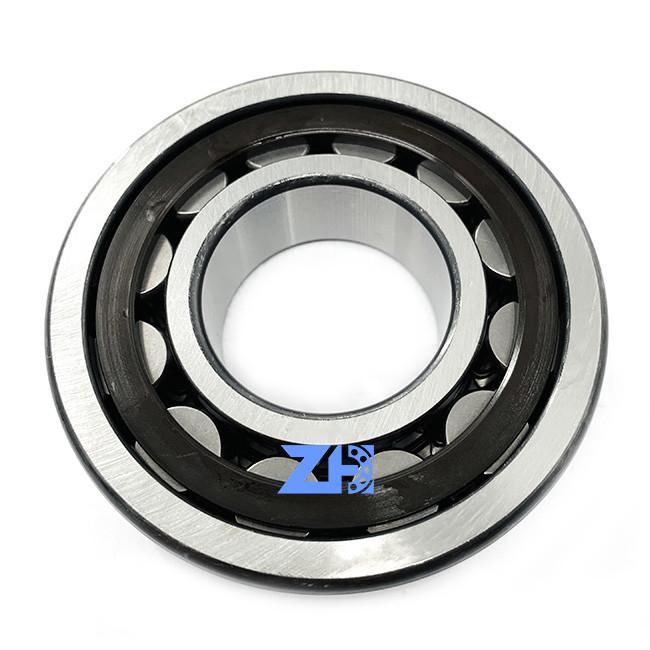

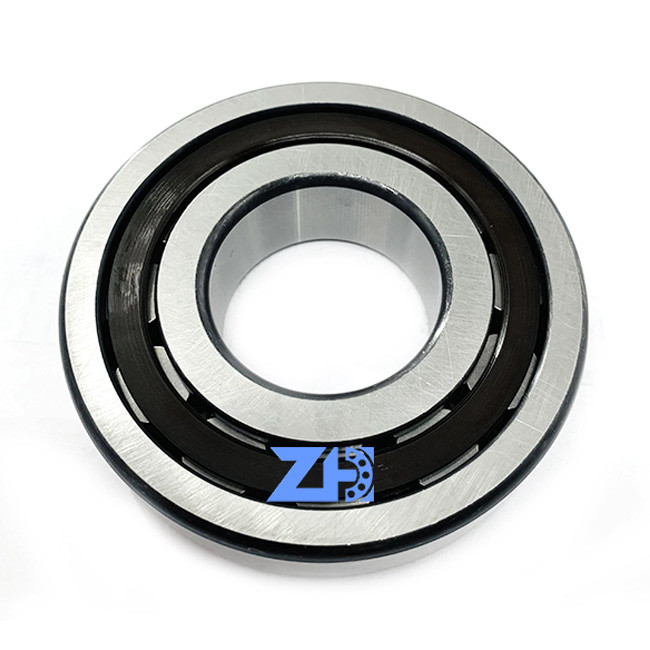

Cylindrical roller bearings are available in various designs, such as with different types of cages, inner and outer ring configurations, and clearance levels
The cylindrical rollers are also made of steel and are arranged parallel to the axis of rotation. The cage, usually made of brass or steel, holds the rollers evenly spaced apart and prevents them from coming into contact with each other.
Cylindrical roller bearings are commonly used in various machinery and equipment, including automotive applications, industrial machinery, and power transmission systems.
They are known for their high load-carrying capacity, relatively high stiffness, and ability to accommodate axial loads in addition to radial loads.
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d1 |
≈57.5 mm
|
Shoulder diameter of inner ring |
| D1 |
≈75.18 mm
|
Shoulder diameter of outer ring |
| F |
52 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| r3,4 |
min.1.5 mm
|
Chamfer dimension |
| s |
max.1.4 mm
|
Permissible axial displacement |
| da |
min.48 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max.50 mm
|
Diameter of spacer sleeve |
| db |
min.60 mm
|
Diameter of shaft abutment |
| Da |
max.81.8 mm
|
Diameter of housing abutment |
| ra |
max.1.5 mm
|
Radius of fillet |
|
| Basic dynamic load rating | C |
93 kN
|
|---|---|---|
| Basic static load rating | C0 |
78 kN
|
| Fatigue load limit | Pu |
10.2 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
9 500 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
