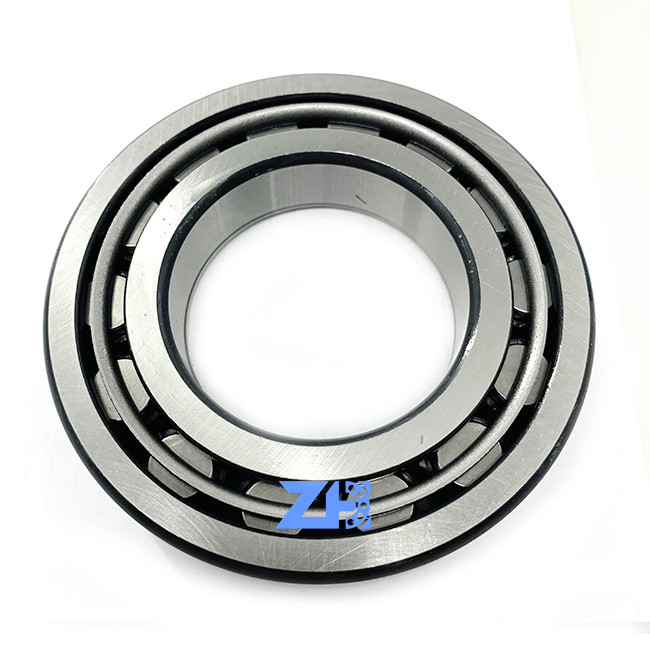

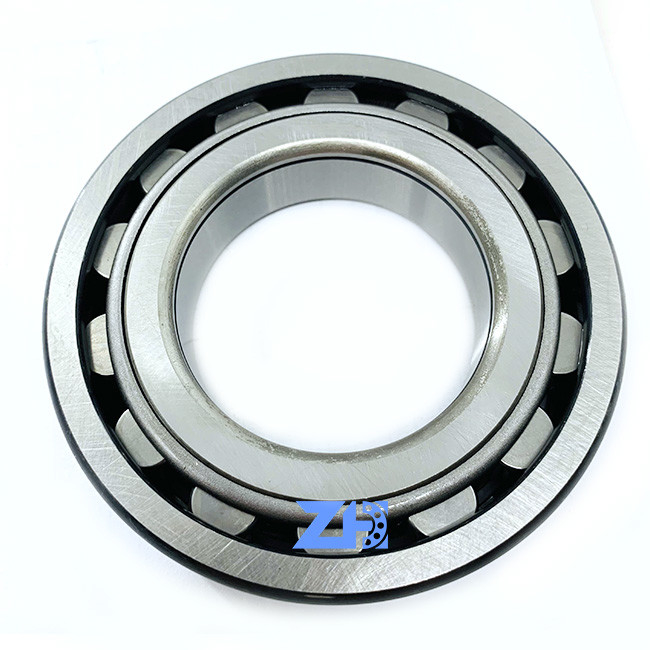

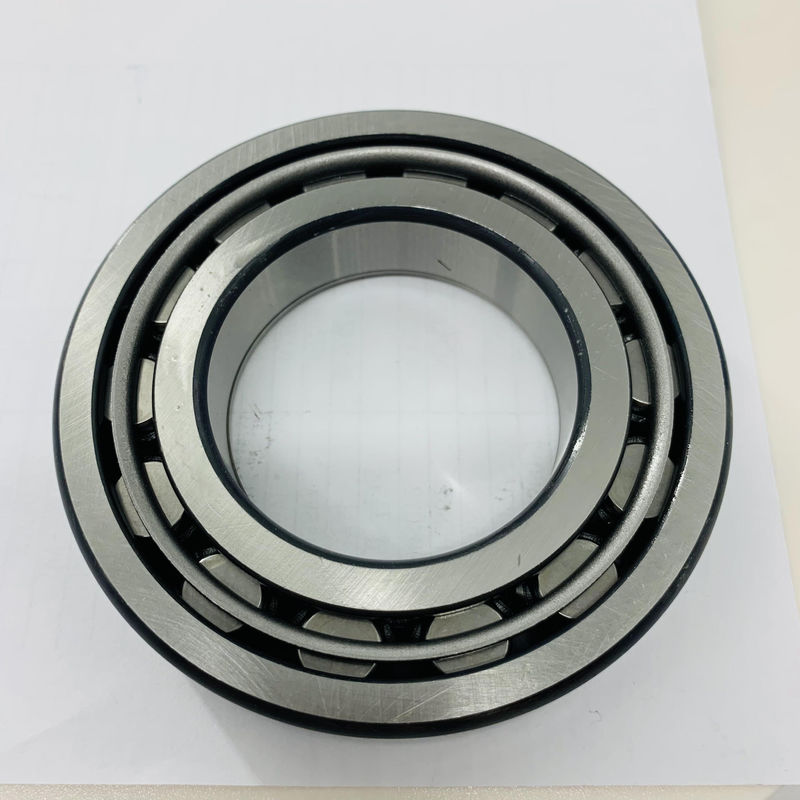

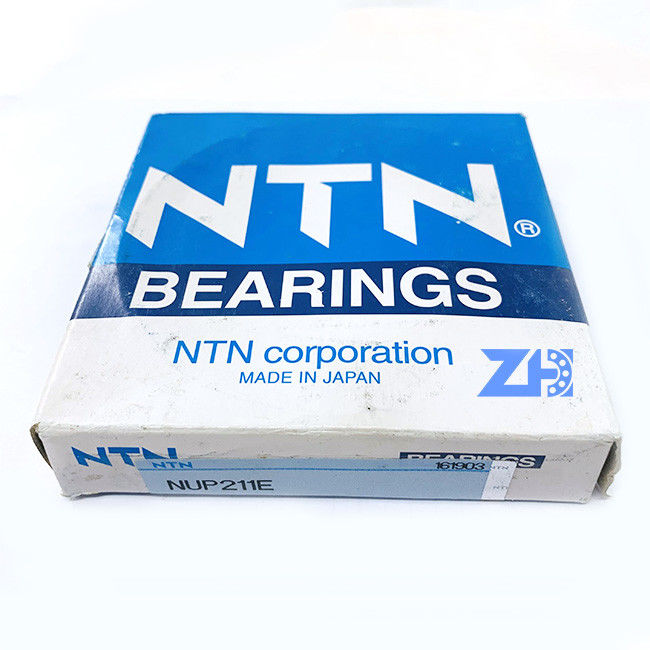

NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision

NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision

  • NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision
  • NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision
  • NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision
  • NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision
NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision
Product Details:
Brand Name: ZH
Model Number: NUP211E
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: neutral packing ,standard exporting packing or as required
Delivery Time: 2-5 work days
Payment Terms: T/T, Western Union,
Supply Ability: 1000
Contact Now
Detailed Product Description
Place Of Origin: China Product Name: NUP211E
Material: CHROME STEEL Size: 55*100*21mm
Quality: High Level Inner Diameter: 55mm
Outer Diameter: 100mm Width: 21mm
Number Of Row: Single Row Weight(kg): 0.69
High Light:

NUP211E Cylindrical Roller Bearing

,

Precision Cylindrical Roller Bearing

NUP211E 55*100*21mm single row cylindrical roller bearing Standard Precision For Sale


Product name NUP211E
Place of Origin: China(mainland)
Size

55*100*21mm

Condition: 100% New
Payment term: T/T,Western union,LC
Delivery time: About 1-2 working days after received payment
Packing: standard exporting packing or as required



21307CA/W33 22206CA/W33 22215CA/W33 22226CA/W33
21308CA/W33 22207CA/W33 21322CA/W33 22228CA/W33
21309CA/W33 22208CA/W33 22216CA/W33 22230CA/W33
21310CA/W33 22209CA/W33 22217CA/W33 22232CA/W33
21311CA/W33 22210CA/W33 22218CA/W33 22234CA/W33
21312CA/W33 22211CA/W33 22219CA/W33 21316CA/W33
21313CA/W33 22212CA/W33 22220CA/W33 21317CA/W33
21314CA/W33 22213CA/W33 22222CA/W33 21318CA/W33
21315CA/W33 22214CA/W33 22224CA/W33 21319CA/W33



Specifition

Bearing No.
Dimensions(mm)
Weight
Bearing No.
Dimensions(mm)
Weight

d
D
B
kg

d
D
B
kg
NU207
35
72
17
0.3
NU307
35
80
21
0.501
NU208
40
80
18
0.382
NU308
40
90
23
0.68
NU209
45
85
19
0.438
NU309
45
100
25
0.93
NU210
50
90
20
0.493
NU310
50
110
27
1.2
Details Images
N type:
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU type:
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ type:
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF type:
The outer ring has one integral flange and the inner ring two integral flanges.
NUP type:
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN type:
No outer ring and the inner ring two integral flanges.
NN type:
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft
relative bearing between the axial displacement generated in both directions.


 NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 0
NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 1NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 2
Features:
The bearing consists of solid inner and outer rings and cylindrical rollers in cages. The cage prevents contact between the cylindrical rollers, so this bearing type can support higher speeds than full complement cylindrical roller bearings.


FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC.

Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.

Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock


NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 3NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 4NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 5NUP211E 55*100*21mm Single Row Cylindrical Roller Bearing Standard Precision 6
