Place of Origin: | CHINA |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | 22324CC |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | interview |
Packaging Details: | handok ,jic ,neutral packing ,standard exporting packing or as required |
Delivery Time: | in stock |
Payment Terms: | T/T, Western Union,,, L/C, Western Union |
Supply Ability: | 30000 Set/Sets per Month |
Product Name: | Spherical Roller Bearing | Model: | 22324CC |
---|---|---|---|
MOQ: | 1 | Supply: | 30000 Set/Sets Per Month |
Material: | CHROME STEEL | Price: | Factory Price |
Quality: | P0、P2、P4、p5、p6 | Packaging: | Your Requirement |
SIze: | 120*260*86 |

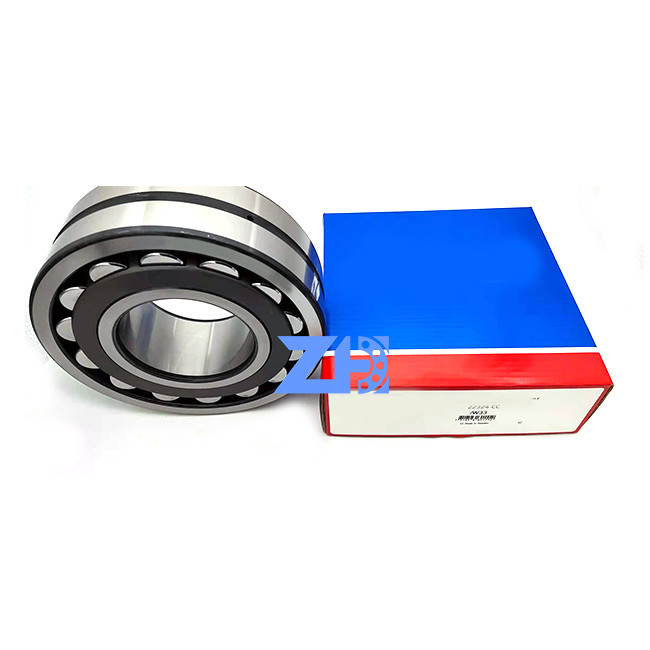

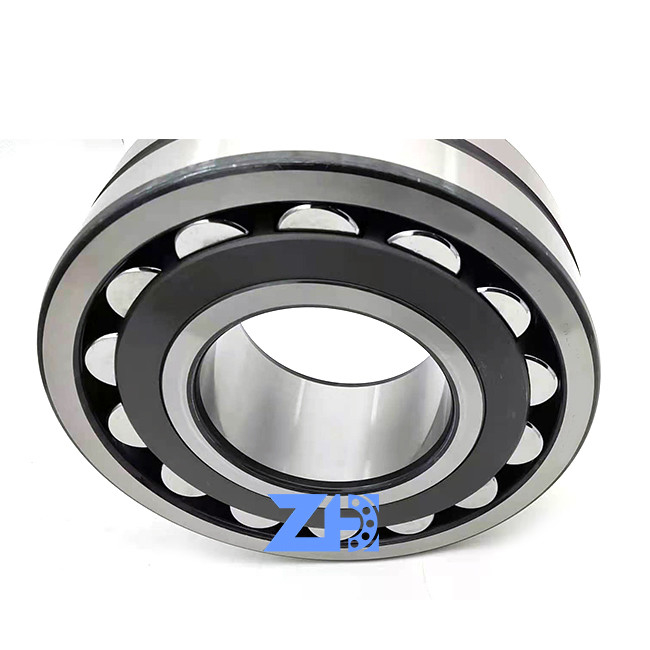

Good quality 22324CC 22324CA 22324MB 22324MA 22324 Spherical Roller Bearing Can be used in automotive bearings
Product introduction
2232CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. (Here you can find the products price you need)
sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life. The performance of these sphericals is
achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to: Reduced friction torque (as much as 30% less),
offering lower operating temperature,
with lower power and lubricant consumption. Appreciably increased operating speed,
d |
120 mm
|
Bore diameter |
---|---|---|
D |
260 mm
|
Outside diameter |
B |
86 mm
|
Width |
d2 |
≈152 mm
|
Shoulder diameter of inner ring |
D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
b |
13.9 mm
|
Width of lubrication groove |
K |
7.5 mm
|
Diameter of lubrication hole |
r1,2 |
min.3 mm
|
Chamfer dimension |
da |
min.134 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.246 mm
|
Diameter of housing abutment |
ra |
max.2.5 mm
|
Radius of fillet |
Basic static load rating | C0 |
1 120 kN
|
---|---|---|
Limiting speed |
20 r/min
|
|
Calculation factor | Y0 |
1.8
|
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
