22228CC 22228C 22228W 22228X 22228JQ 22228ZW 22228RS 22228ZZ 22228CCA P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
22228CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. (Factory prices, let you shop cheap)
sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life.
rolling element geometry.
allowing an extended scope of
The performance of these sphericals is achieved through the use of very high quality raw materials and optimized applications. High temperature capacity of up to 200°C (392°F) for metallic cage bearings.
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
68 mm
|
Width |
| d2 |
≈166 mm
|
Shoulder diameter of inner ring |
| D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
| b |
11.1 mm
|
Width of lubrication groove |
| K |
6 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.154 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.236 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
743 kN
|
|---|---|---|
| Basic static load rating | C0 |
900 kN
|
| Fatigue load limit | Pu |
86.5 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Limiting value | e |
0.26
|
| Calculation factor | Y1 |
2.6
|
| Calculation factor | Y2 |
3.9
|
| Calculation factor | Y0 |
2.5
|
Some advise
| K3V63DT | K3V112DT | SBS140 | HPK055K |
| K3V63BDT | K3V112BDT | SBS120 | HPV050 |
| K3VL80DTP | K3V63DT | SBS80 | HPV091DW |
| K5V80DTP | K3V63BDT | AP2D25 | HPV091EW |
| K3V112DT | HPV35 | AP2D36 | HPV091DS |
| K3V112DP | HPV75 | A10VD17 | HPV091ES |
| K3V112BDP | HPV95 | A10VD43 | HPV091/102 |
| K3V140DT | K3V180 | A10VS063 | HPV0102 |
| K3V180DT | k3v140 | A10VS071 | HPV0118 |
| K5V140DTP | HPV102 A8V160 | A8V0107 | |
| K5V160DTP | HPV118 | K3SP36C | |
| K5V160DP | HPV145 | HPV116 | |
| AP2D36 | M2X146 | HPV145 | |
| SDV36 | PVK-2B-505 | HPV116/145 |

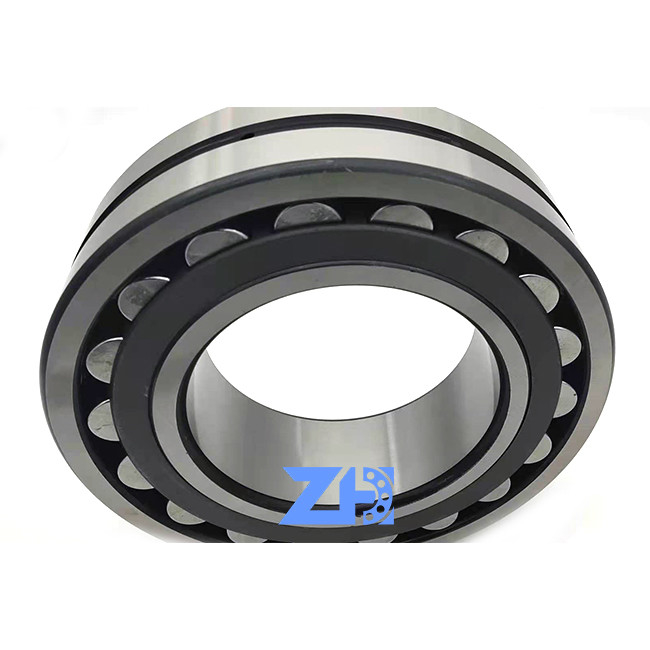

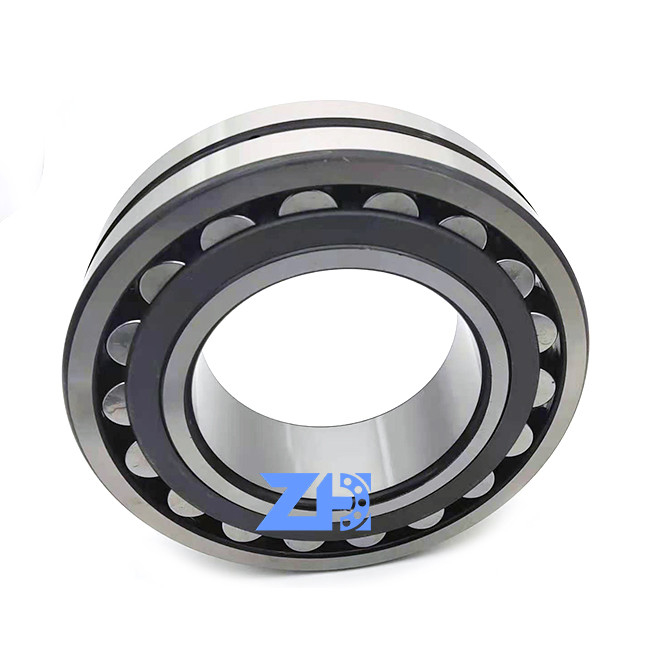

Picture show
|
