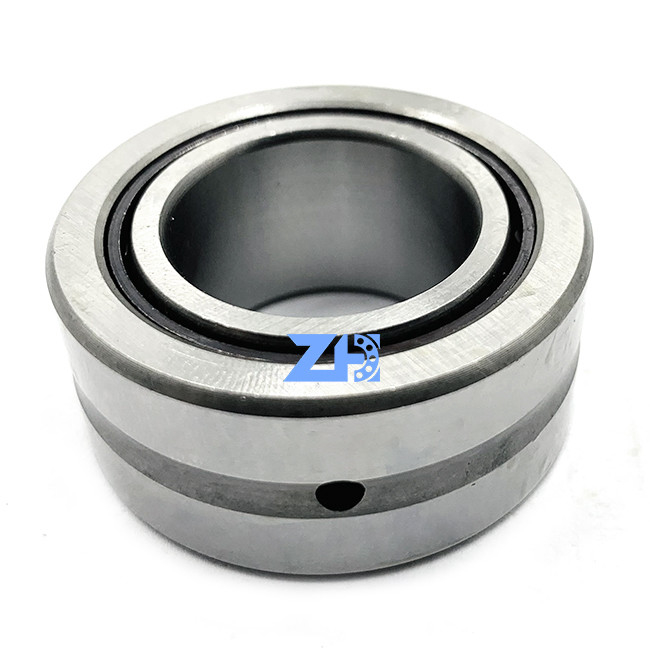

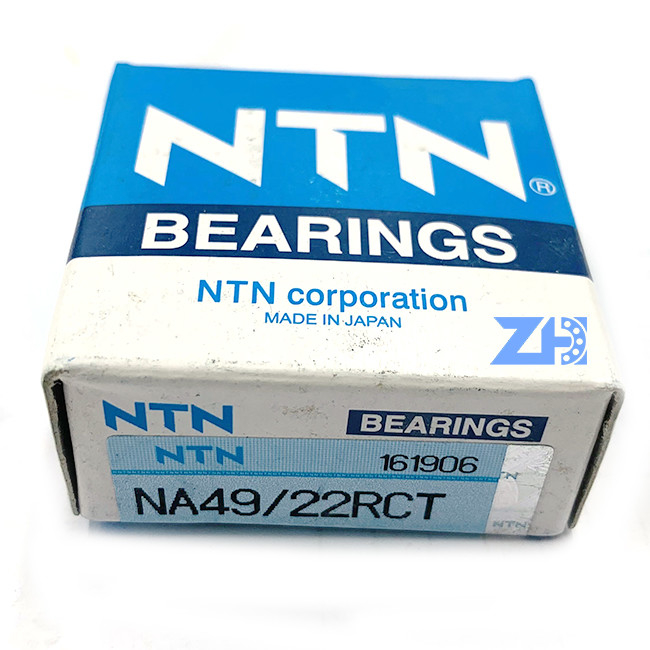

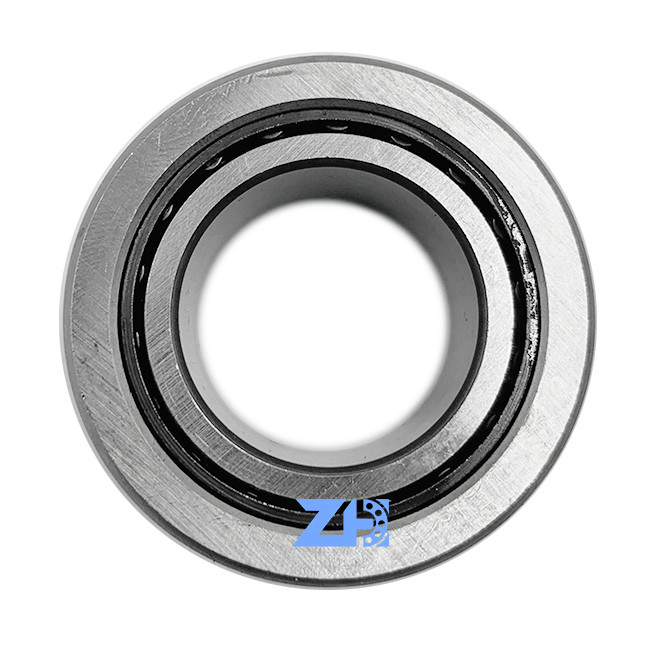

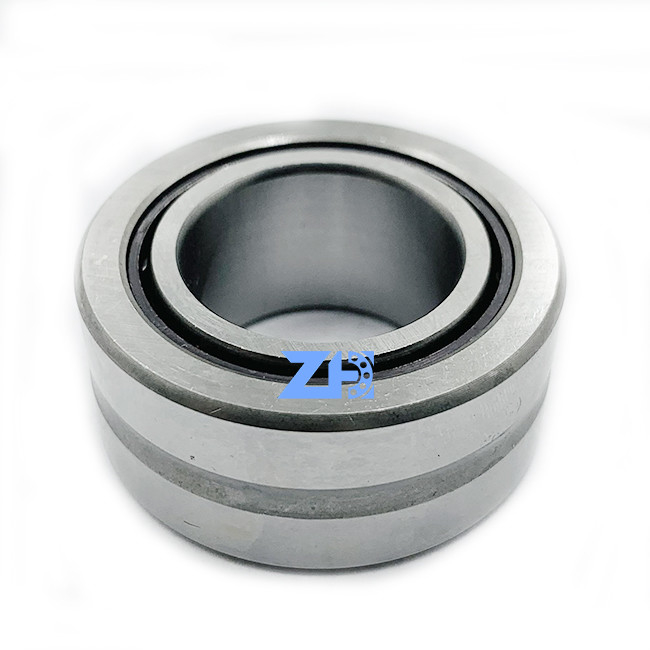

CHROME STEEL 22mm*39mm*17mm Taper Roller Bearing 49-22 NA49-22 49-22RS 49-22ZN

CHROME STEEL 22mm*39mm*17mm Taper Roller Bearing 49-22 NA49-22 49-22RS 49-22ZN

  • CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN
  • CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN
  • CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN
  • CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN
CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN
Product Details:
Place of Origin: China Zhejiang
Brand Name: ZH
Certification: IS09001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Your requirement
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 pieces/week
Contact Now
Detailed Product Description
Model Number: NA49/22 Price: Factory Price
Product Name: Needle Roller Bearing Quality: High Quality
Material: CHROME STEEL MOQ: 1
Supply: 30000 Set/Sets Per Month Size: 22mm*39mm*17mm
Weight: 80Kg
High Light:

PC35 Standby Valve

,

PC40 Standby Valve

49-22 NA49-22 49-22RS 49-22ZN P0 P6 P5 P4 P3 P2 P1 Quality LEVEL CHROME STEEL Taper Roller Bearing


Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication
About this item

  • Radial needle roller bearing for applications with high dynamic and static loads
  • Inner ring provides a hardened and ground raceway for applications where the shaft cannot be used
  • Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
  • Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
  • Lubrication groove and oil hole for applying lubrication in place

CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN 0

Dimensions

Bore diameter 22 mm
Outside diameter 39 mm
Width 17 mm



Performance

Basic dynamic load rating 23.8 kN
Basic static load rating 32.5 kN
Reference speed 14 000 r/min
Limiting speed 15 000 r/min




Properties

Bearing part Complete bearing
Number of rows 1
Outer ring type Machined (solid)
Aligning feature Without
Cage Sheet metal
Number of flanges, outer ring 2
Radial internal clearance CN
Tolerance class Normal
Material, bearing Bearing steel
Coating Without
Sealing Without
Lubricant None
Relubrication feature With



  • To recommend some products to you

503807ZC 207ZC 060ZC 30211ZC 502515ZC 6206ZC 3020ZC
2207ZC 30314ZC 065ZC 30212ZC 503303ZC 6208ZC
6008ZC 6906ZC 070ZC 30213ZC 503806ZC 6213ZC
306ZC 6922ZC 205ZC 30302ZC 32012ZC 6905ZC
6932ZC 33207ZC 208ZC 2304ZC 32013ZC 304020ZC

CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN 1CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN 2CHROME   STEEL  22mm*39mm*17mm   Taper  Roller   Bearing   49-22 NA49-22 49-22RS 49-22ZN 3
