|Place of Origin:||China|
|Minimum Order Quantity:||1 PCS|
|Delivery Time:||1-2 work day|
|Payment Terms:||L/C, Western Union|
|Supply Ability:||500 per day|
|Type:||Cylindrical Roller Bearing||Service:||OEM Customized Services|
|Package:||Cartons||Feature:||High Precision ; Lower Noise|

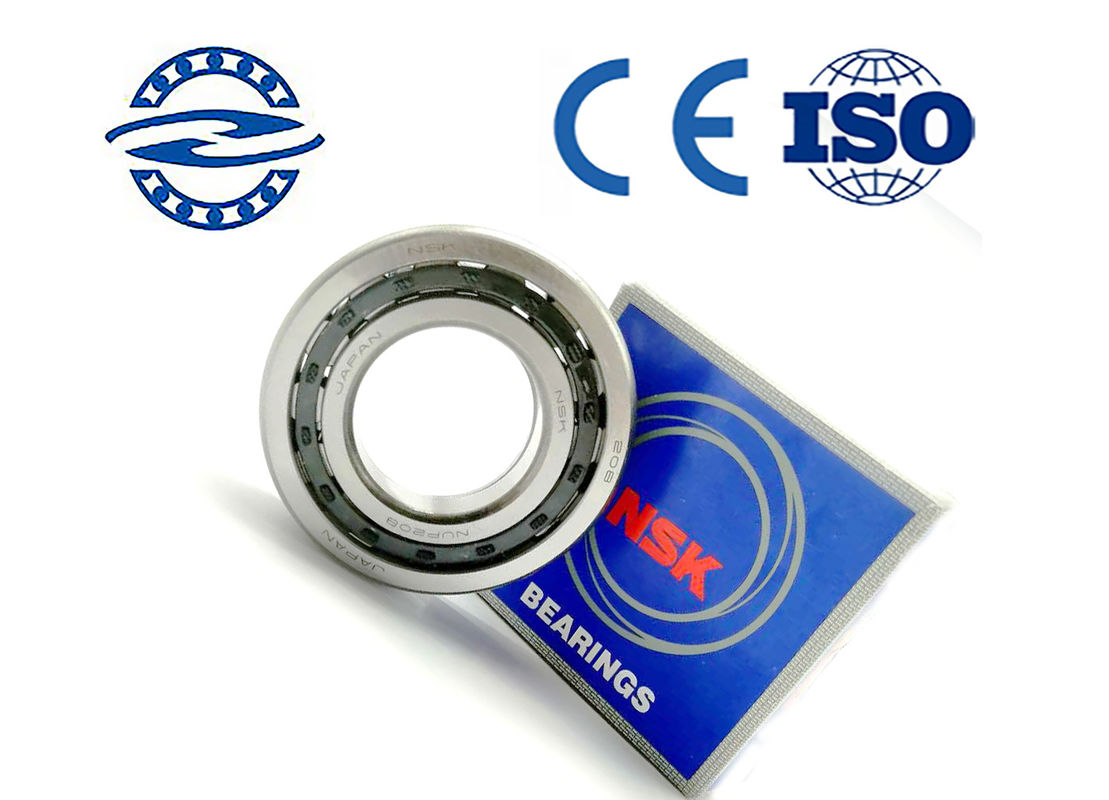

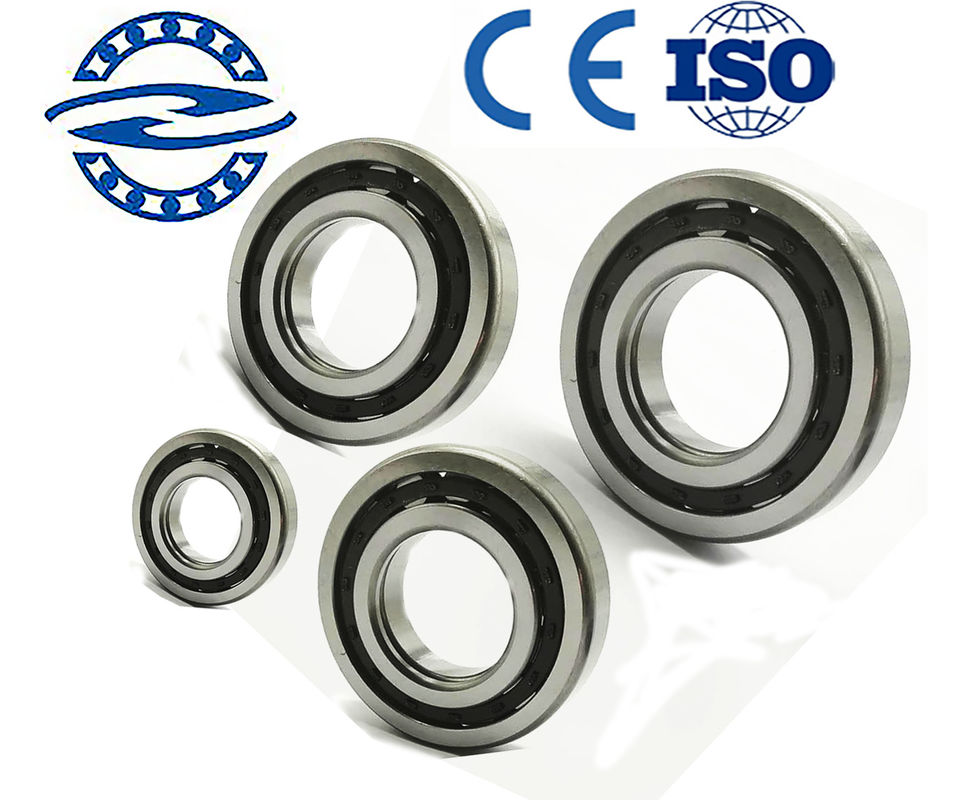

40*80*18 cylinder roller bearings
1.NU Series Cylindrical Roller Bearing
NU208 bearing can be used for: API equipment and machinery, cleaning machinery, coking equipment, molding machine parts, food packaging machinery, machine screw, drilling equipment, gear shaping machine, mining, metal detector, cooler, SMT machine, vacuum dryer, garbage processor, manual sandblasting machine, crane, wet cooling tower, grooving machine, ceramic cutting machine, and so on.
Cylindrical roller and raceway linear contact, radial load capacity is large. It is suitable for both heavy load and impact load as well as high speed rotation.
The raceway and rolling body of cylindrical roller bearing have geometric shapes. After the improved design, the bearing capacity is higher. The new structure design of the roller end face and the roller end face not only improves the bearing axial bearing capacity, but also improves the lubrication condition of the roller end face and the contact area of the roller end face and the roller end face, and improves the bearing's performance.
a.Type N0000 with outer ring and Type NU0000 with inner ring. Cylindrical roller bearing can accept large radial load with high limit speed. It does not bind the axial displacement of shaft or housing and cannot accept axial load.
b.Cylindrical roller bearings NJ0000 and NF0000 with side guards in both inner and outer rings can restrain axial displacement in one direction of the shaft or housing, and can accept small unidirectional axial load. NU0000+HJ0000, NJ0000+HJ0000 and NUP0000 bearings are designed for axial displacements in both directions of the bound shaft or enclosure within the axial clearance area of the inlet bearing and are capable of accepting small bi-directional axial loads.
|New items||Code(dxDxB)||Weight/kg||New items||Code(dxDxB)||Weight/kg|
|NU202 E||15*35*11||0.07||NU202 EM||15*35*11||0.07|
|NU203 E||17*40*12||0.075||NU203 EM||17*40*12||0.075|
|NU204 E||20*47*14||0.11||NU204 EM||20*47*14||0.11|
|NU205 E||25*52*15||0.137||NU205 EM||25*52*15||0.137|
|NU206 E||30*62*16||0.211||NU206 EM||30*62*16||0.211|
|NU207 E||35*72*17||0.3||NU207 EM||35*72*17||0.3|
|NU208 E||40*80*18||0.382||NU208 EM||40*80*18||0.382|
|NU209 E||45*85*19||0.438||NU209 EM||45*85*19||0.438|
|NU210 E||50*90*20||0.493||NU210 EM||50*90*20||0.493|
|NU211 E||55*100*21||0.65||NU211 EM||55*100*21||0.65|
|NU212 E||60*110*22||0.84||NU212 EM||60*110*22||0.84|
|NU213 E||65*120*23||1.07||NU213 EM||65*120*23||1.07|
|NU214 E||70*125*24||1.19||NU214 EM||70*125*24||1.19|
|NU215 E||75*130*25||1.25||NU215 EM||75*130*25||1.25|
|NU216 E||80*140*26||1.5||NU216 EM||80*140*26||1.5|
|NU217 E||85*150*28||1.9||NU217 EM||85*150*28||1.9|
|NU218 E||90*160*30||2.35||NU218 EM||90*160*30||2.35|
|NU219 E||95*170*32||3.1||NU219 EM||95*170*32||3.1|
|NU220 E||100*180*34||3.5||NU220 EM||100*180*34||3.5|
|NU221 E||105*190*36||4.07||NU221 EM||105*190*36||4.07|
|NU222 E||110*200*38||5.2||NU222 EM||110*200*38||5.2|
ZhongHong Bearing Manufacturing Co.Ltd., produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand
Q1: Are you manufacturer or trading company?
A1: We are manufacturer
Q2: Whafs the MOQ?
A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on orders under 3000 pieces and we will do whatever we can to accommodate you.
Q3:Can i Get samples?
A3:Of course, we usually provide existing sample for free, however you need to cover the express charge, and if you have special request then we will charge you for special arrangement, and this charge is refundable when order is up to a certain quantity.
Q4: What's the delivery time of your products?
A4: Usually the delivery time is 30 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q5: How does your factory do regarding quality control.
A5: Quality is priority, we will do 100% quality inspection before shipment.
Q6: what is your terms of payment?
A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production: 30% deposit before mass production,70% before shipment.
Q7: Can we use our own logo and design ?
A7: Yes, you can. We can follow up your request to put your logo or design on . For logo file must Al file.
Q8: When can I get the price?
A8: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or contact through Trade Manager to get prompt response. please call us or tell us in your email so that we will regard your inquiry as top priority.
1.You need to pay in advance
2.You can use west union
3.L/C at sight
4.30% T/T in advance . 70% against copy of B/L
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
