Place of Origin: | CHINA |
Brand Name: | CN&ZH |
Model Number: | 22211 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | negotiable |
Packaging Details: | negotiable |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/P, Western Union, MoneyGram |
Supply Ability: | 500 per day |
Product Name: | Spherical Roller Bearing | Feature: | High Quality /long Life |
---|---|---|---|
Weight: | 0.847 | Material: | GCR15 |
Precision Rating: | P0 P6 P5 P4 P2 | Lubriexcavatorion: | Oil |
Dimension: | 50*100*25 | Brand: | Z&H |
Structure: | Roller | Cage: | Brass/steel |
High Light: | spherical roller thrust bearing,split roller bearing |

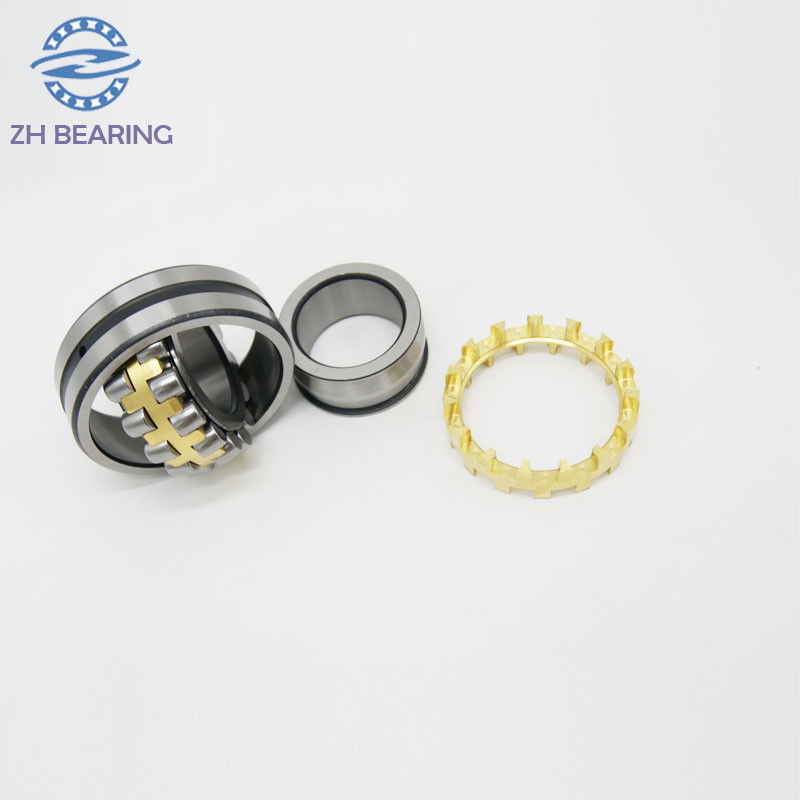

Spherical Roller Bearing 22211 Brass / Steel Cage 55*100*25High quality /long life
Our company
Linqing Zhonghong bearing co., LTD. is a company with bearing production and sales, our company has many years of bearing support and industrial service experience in the industrial field. The company specializes in imported bearings, including Swedish bearing, German FAG bearing. INA bearing, Japan NSK bearing, NTN bearing, IKO bearing, KOYO bearing, American TIMKEN bearing, etc. Domestic brands include : ZWZ bearing. Harbin HRB bearing, luo yang LYC bearing, etc. Involving type: deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearing, spherical roller bearings, angular contact bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, needle roller bearings, joint bearings, outer spherical bearings, bearing special appliexcavatorions.
We seek development by reputation, benefit from manegement, and use service to compete with customers. In the face of increasingly fierce market competition, we constantly improve ourselves and grow stronger. We have a group of professional and technical personnel. and fusion
international well-known large companies operating management mode, actively explore the market, easy to provide users from all walks of life from product introduction to technical communiexcavatorion and product after-sales service one-stop service. Over the years, with good reputation and excellent quality, a complete set of sales system has been established, which has established long-term cooperative relations with hundreds of customers throughout the country.
We sincerely welcome you to visit our factory, you may fly to Jinan airport and we provide pick-up service.
Sealed Spherical Roller Bearing 20308 brand Z&H Especially For Heavy Duty And Loads

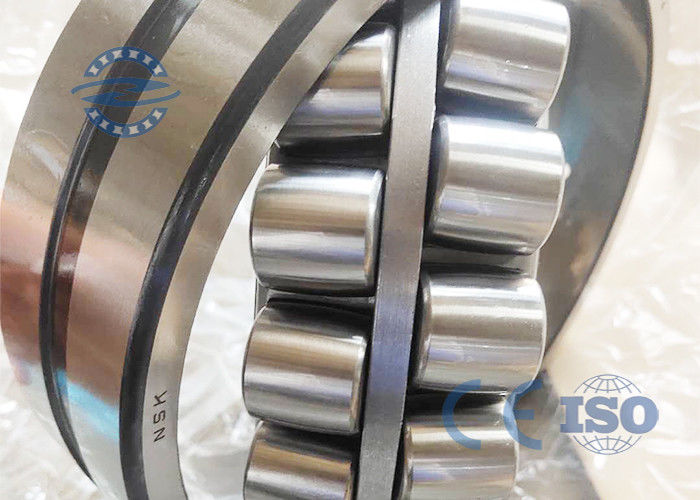

Spherical roller bearings
Spherical roller bearings are bearings with two inner ring raceways, spherical outer ring and spherical rollers .The outer ring raceway center is consistent with bearings center,so it has a self -aligning property to automatically adjust the error due to the installation of shaft and bearing housing or eccentricity caused by deflection .the bearing can still work when the relative tilt angle between inner and outer ring center line is less than 10`~2.5`. they can bear both radial load and axial load .especially for heavy duty and shock loads
Other size
22300series | ||
Bearing Number | Dimension (mm ) | Weight (kg) |
22306 | 30X72X19 | 0.37 |
22307 | 35X80X31 | 0.75 |
22308 | 40X90X33 | 1.03 |
22309 | 45X90X33 | 1.4 |
22310 | 50X110X40 | 1.85 |
22311 | 55X120X43 | 2.42 |
22312 | 60X130X46 | 3 |
22313 | 65X140X48 | 3.65 |
22314 | 70X150X51 | 4.4 |
22315 | 75X160X55 | 5.47 |
22316 | 80X170X58 | 6.63 |
22317 | 85X180X60 | 7.07 |
22318 | 90X190X64 | 8.76 |
22319 | 95X200X67 | 9.93 |
22320 | 100X215X73 | 13.7 |
22322 | 110X240X80 | 17.7 |
22324 | 120X260X86 | 22.9 |
22326 | 130X280X93 | 28.5 |
22328 | 140X300X102 | 35.5 |
22330 | 150X320X108 | 42 |
22332 | 160X340X114 | 52.2 |
22334 | 170X360X120 | 60.7 |
22336 | 180X380X126 | 72.6 |
22338 | 190X400X132 | 84.2 |
22340 | 200X420X138 | 94.4 |
22344 | 220X460X145 | 119 |
