Place of Origin: | china |
Brand Name: | koyo NSK NTN CNZH |
Certification: | IS09001:2008 |
Model Number: | 6006 |
Minimum Order Quantity: | 50 |
---|---|
Price: | $0.25-$0.38/pcs |
Packaging Details: | carton |
Delivery Time: | 3 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 10000 per day |
High Light: | 6006zz Deep Groove Ball Bearing,300mm Deep Groove Ball Bearing |
---|

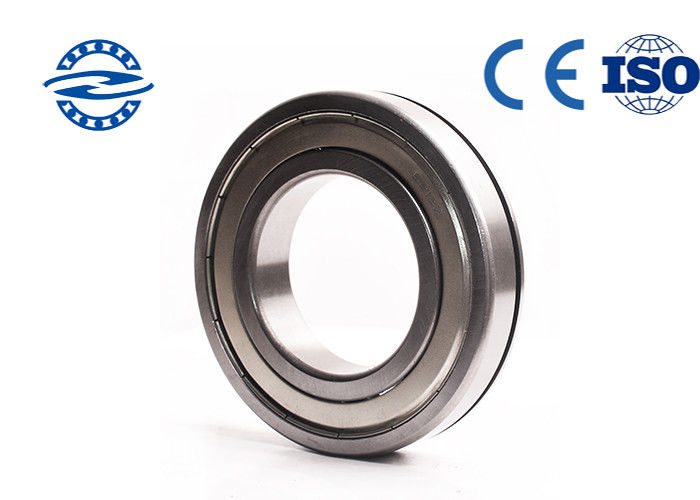

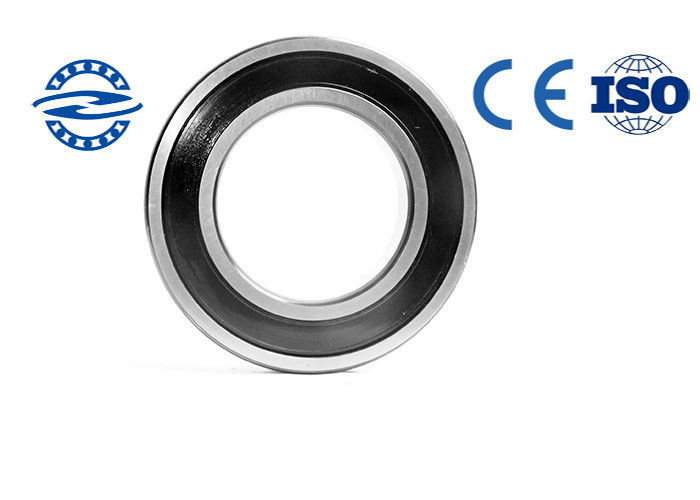

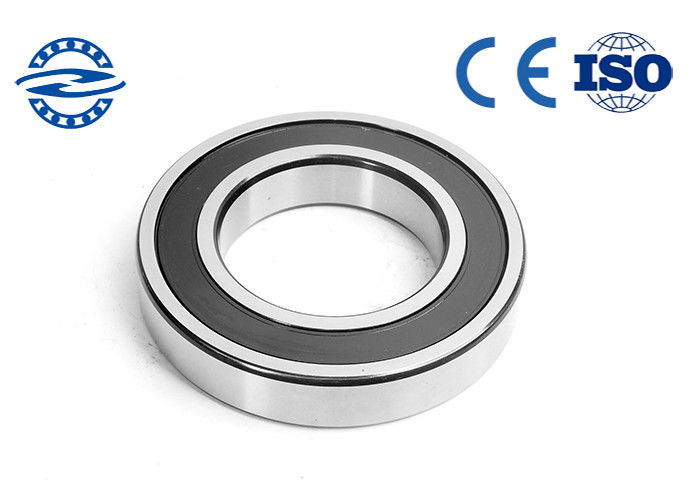

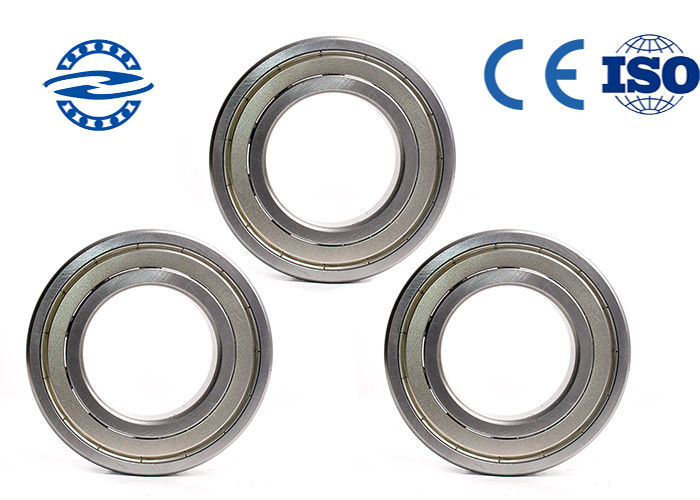

Chrome steel 6006zz/rs deep groove bearing axial load size 30*55*13
deep groove ball bearing 6006zz 2rs for achime tools,automobiles,agricutural machines with size 30*55*13
Introduction
Ball Bearingcosist of rings with raceway(an inner ring and ourter ring),rolling elements (balls ) and a retainer.
The retainer that separates the rolling elements at regular intervals holds them in place within the inner and outer raceways and allows them to rotate freely.
The retainer only serves to hold the balls at equal distances from one another.
Balls geometrically contact the raceway surfaces of the inner&ourter ring at points.
Structure | deep groove | Model Number | 6000 | |
Type | Ball | Precision Rating | P0 P6 P5 | |
Brand Name | CNZH | Seals Type | OPEN /SEALED | |
Material | GCR15 | Number of Row | Single Row Double row | |
Cage | steel/brass | Place of Origin | Shandong, China (Mainland) | |
Clearance | C2, C3,C4,C5 | Samples | Free | |
Hardness | HRC58-62 | Certificate | IS09001:2008 | |
Bore Size | 10 - 140 mm | OEM service | available | |
Outside Diameter | 35 - 300 mm | Supplying ability | great number with stock and new products | |
| ||||
Bearing Number | Dimension(mm) |
Weight(kg) | ||
6004 | 20X42X12 | 0.069 | ||
6005 | 25X47X12 | 0.0743 | ||
6006 | 30X55X13 | 0.112 | ||
6007 | 35X62X14 | 0.146 | ||
6008 | 40X68X15 | 0.182 | ||
6009 | 45X75X16 | 0.229 | ||
6010 | 50X80X16 | 0.249 | ||
6011 | 55X90X18 | 0.374 | ||
6012 | 60X95X18 | 0.38 | ||
6013 | 65X100X18 | 0.43 | ||
6014 | 70X110X20 | 0.586 | ||
6015 | 75X115X20 | 0.63 | ||
6016 | 80X125X22 | 0.858 | ||
6017 | 85X130X22 | 0.88 | ||
6018 | 90X140X24 | 1.16 | ||
6019 | 95X145X24 | 1.18 | ||
6020 | 100X150X24 | 1.22 | ||
6021 | 105X160X26 | 1.56 | ||
6022 | 110X170X28 | 1.95 | ||
6024 | 120X180X28 | 1.99 | ||
6026 | 130X200X33 | 3.08 | ||
6028 | 140X210X33 | 3.17 | ||
6030 | 150X225X35 | 3.903 | ||
6032 | 160X240X38 | 4.83 | ||
6034 | 170X260X42 | 6.5 | ||
6036 | 180X280X46 | 8.51 | ||
6038 | 190X290X46 | 8.865 | ||
6040 | 200X310X51 | 11.64 | ||
6044 | 220X340X56 | 19 | ||
6048 | 240X360X56 | 20 | ||
6052 | 260X400X65 | 28.8 | ||
|
Deep groove ball bearings are the most typical rolling bearings with the characteristics of simply designed structures, convenience in operation and extensive applications.They are designed as non-separable bearings.The raceways in both of rings are in arc groove form.which can carry radial load and double directions axial load. They are of features of low friction factors,high limit rotatinal speed and can be applied in tuations where hihg-rotating speed and low noise and low vibration are required.Applications of these bearings can be found in automobiles,machine tools,motors, instruments,nstruction machines,railway vehicle,agricutural machines and various other special machines.
FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
