| Place of Origin: | CHINA |
| Brand Name: | NSK NTN Z&H |
| Certification: | ISO9001，ISO14001 |
| Model Number: | NUP308 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiated |
| Packaging Details: | According to customer requirements |
| Delivery Time: | 1-2 work day |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 500 PC per day |
| Product Name: | Cylindrical Roller Bearing | Bearing No: | NUP308 |
|---|---|---|---|
| Vibration And Noise: | Z0V0 / Z1V1 / Z2V2 / Z3V3 | Material: | Chrome Steel Gcr15Package |
| Precision Rating: | ABEC-1 To ABEC-9 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Place Of Origin: | Shandong, China | Service: | OEM ODM |
| Lubricate: | Oil Grease | Package: | Original Packing |
| Sample: | Avaliable | Whatsapp/WeChat: | +0086 13926271887 |
| High Light: | cylinder roller bearing,radial roller bearing |
||

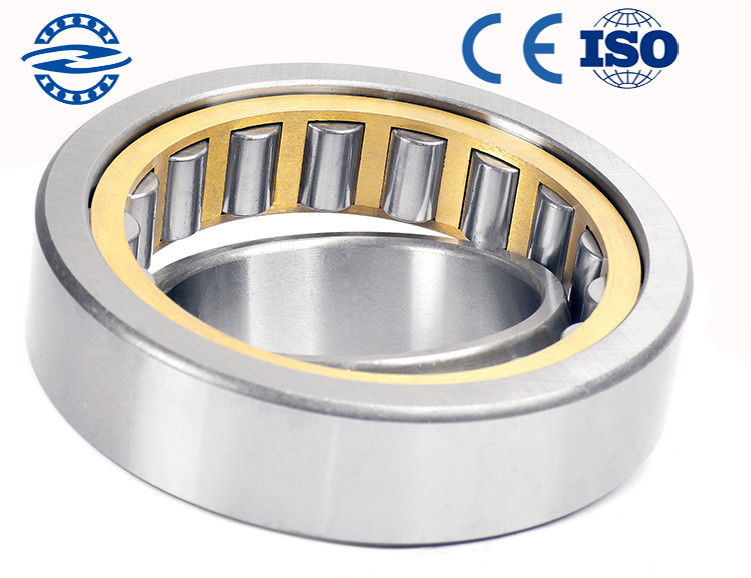

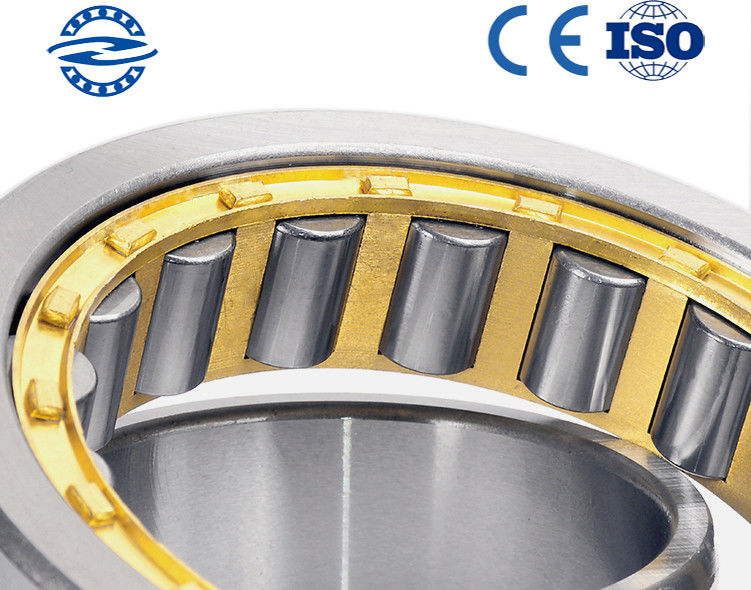

Cylindrical roller bearing
1. Cylindrical roller bearing is guided by the rim on outer or inner ring.
2. The external dimension of strengthened cylindrical roller bearing is the same as standard type, diameter, length and number of the roller are increased, so it ahs bigger capacity of load rating.
3. There are many types for cylindrical roller bearing.
4. If divided by loading capacity, there are standard type and strengthened type cylindrical roller bearings.
5. Cylindrical Roller Bearing are also appropriate for highspeed applications, and can be machined very accurately due to their structure.
NUP203- NUP252, NUP304 - NUP324, NUP405 - NUP417, NUP2203 - NUP2222, NUP2176
More information
With the absence of ribs, either the inner or outer ring will move freely so as to adjust to axial movement hence can be used as free side bearings. This enables them to absorb shaft expansion to a certain extent, relative to the housing position.
NU and NJ type cylindrical roller bearing produce high performance results when used as free side bearings because they possess the required characteristics for that purpose. NF type cylindrical roller bearing also supports the displacement of the axial to a certain extent in both directions and therefore can be used as a free side bearing.
In applications where heavy axial loads have to be supported, cylindrical roller thrust bearings are the most suitable. This is because they are designed to contain shock loads, are stiff and the axial space required is little. They only support axial loads that are acting in a single direction
Other model of NUP type cylindrical roller bearings
| Bearing | ID | OD | Thickness | Cr | Cor | Grease | Oil | Weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| NUP203 | 17 | 40 | 12 | 9.12 | 7 | 14000 | 18000 | — |
| NUP204E | 20 | 47 | 14 | 25.8 | 24 | 12000 | 16000 | 0.117 |
| NUP2204E | 20 | 47 | 18 | 30.8 | 30 | 12000 | 16000 | 0.149 |
| NUP304E | 20 | 52 | 15 | 29 | 25.5 | 11000 | 15000 | 0.155 |
| NUP2304E | 20 | 52 | 21 | 39.2 | 37.5 | 10000 | 14000 | 0.216 |
| NUP205E | 25 | 52 | 15 | 27.5 | 26.8 | 11000 | 14000 | 0.14 |
| NUP2205E | 25 | 52 | 18 | 32.8 | 33.8 | 11000 | 14000 | 0.168 |
| NUP305E | 25 | 62 | 17 | 38.5 | 35.8 | 9000 | 12000 | 0.251 |
| NUP2305E | 25 | 62 | 24 | 53.2 | 54.5 | 9000 | 12000 | 0.355 |
| NUP206E | 30 | 62 | 16 | 36 | 35.5 | 8500 | 11000 | 0.214 |
| NUP2206E | 30 | 62 | 20 | 45.5 | 48 | 8500 | 11000 | 0.268 |
| NUP306E | 30 | 72 | 19 | 49.2 | 48.2 | 8000 | 10000 | 0.377 |
| NUP2306E | 30 | 72 | 27 | 70 | 75.5 | 8000 | 10000 | 0.538 |
4 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology.
This enables us produce many high quality bearings and meet customers delivery time. All products could meet many advanced international standards with high quality steel and fully testing treatment.
WORKSHOP
WAREHOUSE
INSPECTION MACHINE
1. OEM available for different model and brand of bearings
2. Customize some non-standard products to meet customers special requirements
3. All bearings use high chrome GCr15 bearing steel to provide high quality products for each customer
4. Customize package according to customers special requirement
5. Safe, fast and cheap delivery to meet customers urgent need
automatic transmission mechanism, household motor, motorcycle, electric tools, sports supplies, office appliances
5 . Packaging
Packing Details : 1. Tube+carton+pallet
2. Paper box+carton+pallet
Delivery Details : Shipped in 7 days after payment
RFQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge..
A:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.
