Place of Origin: | CN |
Brand Name: | ZH |
Model Number: | Bearing NJ 312 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Packaging according to customer requirements |
Delivery Time: | 10 works |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000pcs +7 works days |
Type: | Cylindrical Roller Bearing | Number Of Row: | Single Row,Double Row |
---|---|---|---|
Precision Rating: | P0 P6 P5 P4 P2 | Seals Type: | Sealed |
Structure: | Cylindrical | Material: | Chrome Steel |
High Light: | industrial roller bearings,cylinder roller bearing |

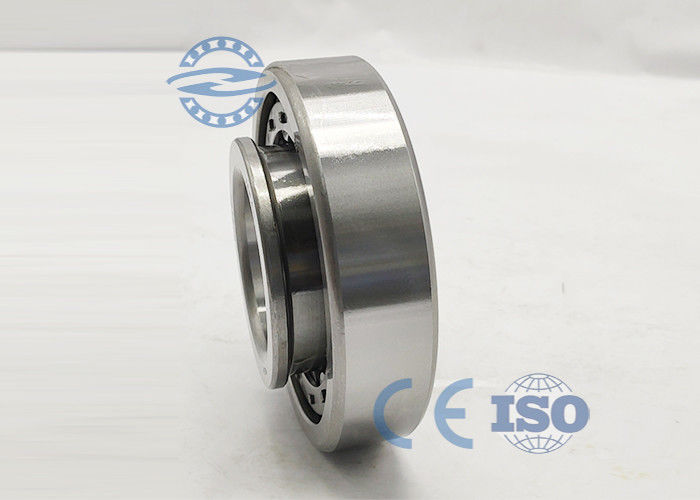

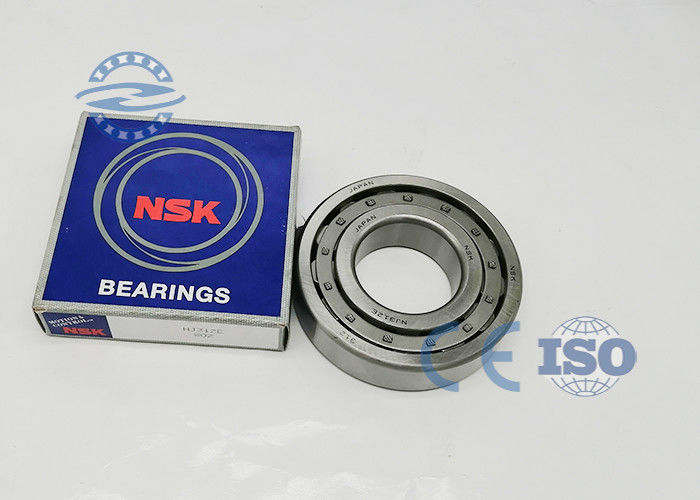

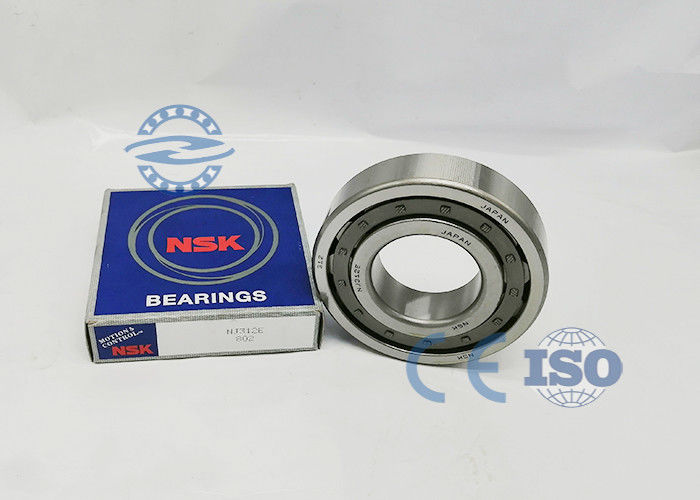

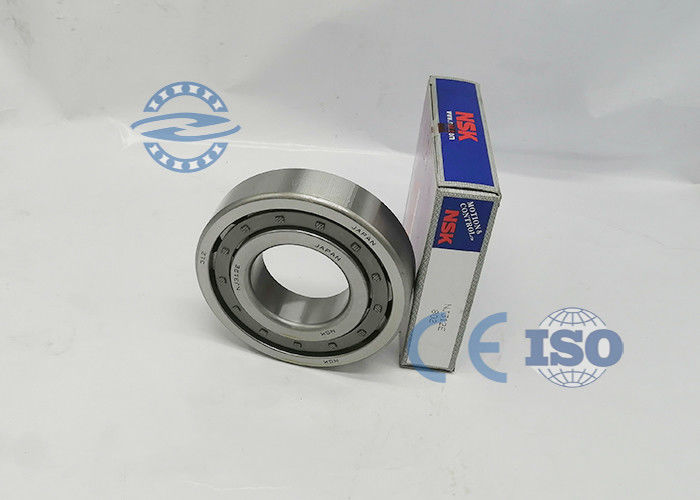

Nj 312 Cylindrical Roller Bearing Sealed 60x130x31 Custom Made
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
Bearing number : NJ 312
Size (mm) : 60x130x31
Brand : ZH
Bore Diameter (mm) : 60
Outer Diameter (mm) : 130
Width (mm) : 31
d - 60 mm
Fw - 77 mm
D - 130 mm
B - 31 mm
C - 31 mm
r min. - 2,1 mm
r1 min. - 2,1 mm
da min. - 71 mm
db max. - 75 mm
db min - 71 mm
ra max. - 2 mm
rb max. - 2 mm
Db max - 119 mm
Weight - 1,82 Kg
Basic dynamic load rating (C) - 124 kN
Basic static load rating (C0) - 126 kN
(Grease) Lubriexcavatorion Speed - 4 800 r/min
(Oil) Lubriexcavatorion Speed - 5 600 r/min
