WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm

WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm

  • WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm
  • WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm
  • WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm
WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm
Product Details:
Place of Origin: China
Brand Name: Z&H
Model Number: 20313MB
Certifiexcavatorion: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1.Single box packing, then in carton then in Pallet. 2.Standard export packing. 3. According customer demand.
Delivery Time: 2-5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000piece
Contact Now
Detailed Product Description
Bearing No: 20315MB/W33 Material: GCR15/SAE52100
ID: 65mm OD: 140mm
High: 33mm Weight: 2.18KG
Cage: Brass Feature: High Speed
Appliexcavatorion: Cars, Trucks And Other Machinery Seals Type:: CC CA MB MA
Precision Rating: P0 P6 P5 P4 Warranty: 6month
High Light:

split roller bearing

,

spherical roller thrust bearing

WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm



Parameters



Bearing No: 20315MB/W33 Material: GCR15/SAE52100
ID: 65mm OD: 140mm
High: 33mm Weight: 2.18KG
Cage: Brass Feature: High Speed
Appliexcavatorion: Cars, Trucks And Other Machinery Seals Type:: CC CA MB MA
Precision Rating: P0 P6 P5 P4 Warranty: 6month
Packaging: According To Customer's Packaging

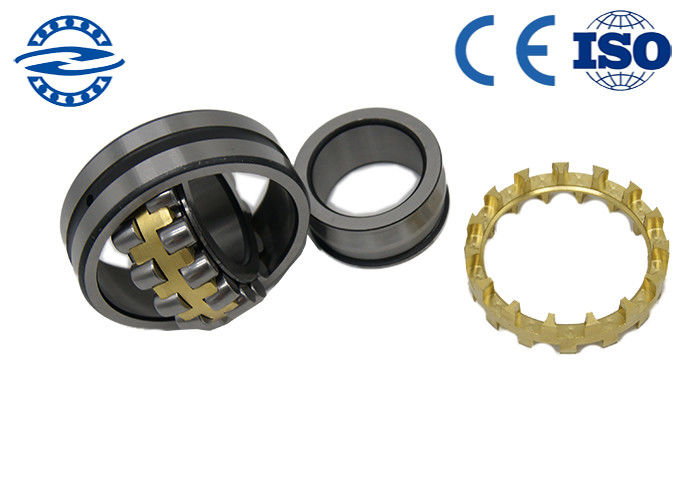

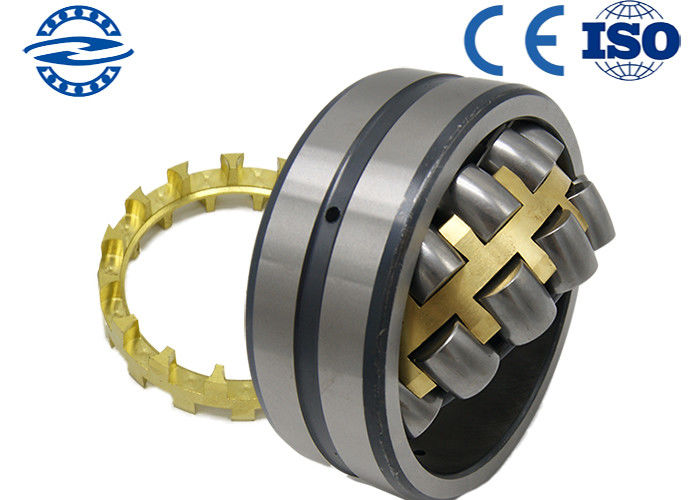

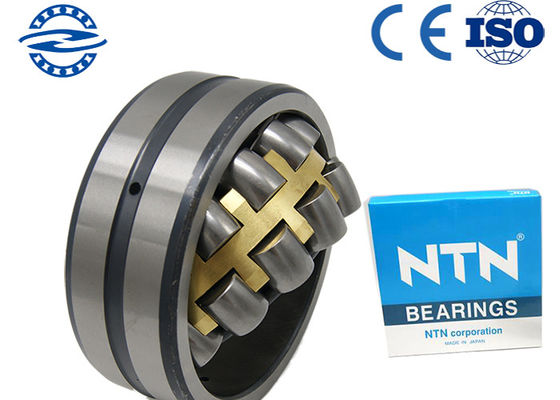

PRODUCT SHOW
WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 0
WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 1

WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 2
WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 3

Overview
WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 4

2.Appliexcavatorion:



agricultural machinery to conveying equipment robotics



dental equipment



elevators



rolling mills



ship rudder shafts



and aggregate crushers



among others



3.Features:



Support radial and oscillating axial loads



C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees



Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft



Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise



Open design, circumferential groove and three lubriexcavatorion holes in the outer ring allow for lubriexcavatorion in place

WHCB 20313MB/W33 20133CA/W33 Spherical Roller Bearing Size 65x140x33mm 5
Size list
Bearing number dimension(mm) weight(kg)
22306 30*72*19 0.37
22307 35*80*31 0.75
22308 40*90*33 1.03
22309 45*90*33 1.4
22310 50*110*40 1.85
22311 55*120*43 2.42
22312 60*130*46 3
22313 65*140*48 3.65
22314 70*150*51 4.4
22315 75*160*55 5.47
22316 80*170*58 6.63
22317 85*180*60 7.07
22318 90*190*64 8.76
22319 95*200*67 9.93
22320 100*215*73 13.7
22322 110*240*80 17.7
22324 120*260*86 22.9
22326 130*280*93 28.5
22328 140*300*102 35.5
22330 150*320*108 42
22332 160*340*114 52.2
22334 170*360*120 60.7
22336 180*380*126 72.6
22338 190*400*132 84.2
22340 200*420*138 94.4
22344 220*460*145 119
