High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm

High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm

  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
  • High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm
Product Details:
Place of Origin: CHINA
Brand Name: NTN
Model Number: 22309
Certifiexcavatorion: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 10piece
Price: negotiated
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T, D/P
Supply Ability: 500 pieces per day
Contact Now
Detailed Product Description
Products: Spherical Roller Bearing Size: 45* 90 * 33mm
Material: High Temperature Bearing Steel Rolling Element: Steel Ball
Sealing Cover: No Seal Apply: General Purpose
Cage: Brass Entity Weight: 1.4KG
High Light:

split roller bearing

,

spherical roller thrust bearing



Stainless Steel Radial Roller Bearing 22309 with high Precision Small Roller Bearings

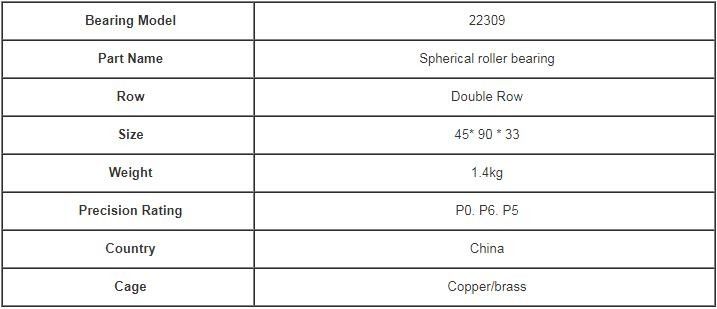

Bearing Model 22309
Part Name Spherical roller bearing
Row Double Row
Size 45* 90 * 33
Weight 1.4kg
Precision Rating P0. P6. P5
Country China
Cage Copper/brass

1 . Common type
Ring roller bearing is a new radial roller bearing.

This compact automatically self-aligning roller bearings  s developed, the bearing design is unique, combined with the ability of the self-aligning spherical roller bearings and cylindrical roller bearing unlimited axial displacement ability, he can also have smaller cross-sectional area, and tend to have a needle roller bearing features .

CARB ring roller bearing is used in paper machine machinery, continuous casting machine, crushing machine machinery, grinding machine, conveyor belt, textile machinery, industrial transmission and other fields.



High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm 0

2. Production range

Inner diameter :25 mm ~1250 mm

Outer diameter : 52 mm ~1750 mm

Height : 18 mm ~375 mm



Bearing Na Dimensions (mm) Load ralings(KN) Limiting speeds(r/min) Mounting dimensions(mm)
d D B Cr Cor Grease Oil da (min) Da(max) ra(max)
22308 40 90 33 124 142 4100 5000 49 81 1.5
22309 45 100 36 146 175 6300 4500 54 91 1.5
22310 50 110 40 180 216 3200 4300 60 100 2
22311 55 120 43 214 258 3200 3800 65 110 2.1
22312 60 130 46 245 294 2800 3500 72 118 2.1
22313 65 140 48 268 324 2500 3300 77 128 2.1
22314 70 150 51 301 373 2000 2700 82 138 2.1
22315 75 160 55 352 451 2200 3000 87 148 2.1
22316 80 170 58 397 513 2000 2800 92 158 2.1
22317 85 180 60 433 556 2000 2500 99 166 2.5
22318 90 190 64 489 641 1800 2200 104 176 2.5
22319 95 200 67 536 709 1500 2000 109 186 2.5
22320 100 215 73 626 840 1500 1900 114 201 2.5
22322 110 240 80 716 963 1400 1600 124 226 2.5
22324 120 260 86 847 1154 1300 1600 134 246 2.5
22326 130 280 93 970 1340 1000 1500 148 262 3
22328 140 300 102 1140 1620 900 1300 158 282 3
22330 150 320 108 1270 1850 850 1200 168 302 3
22332 160 340 114 1070 1820 800 1000 178 322 3
22334 170 360 120 1180 2120 800 1000 188 342 3



3 . Our ascendancy

1.Direct China factory / Manufacturer with strong Capability
We are direct bearing factory on shandong , China for more than 10 years.300 bearing types,5 million sets items and produced yearly and the output value more than 5 million US dollars last year.


2.Product quality high quality the delivery time is quick , reasonable price
Rich in stock throughout the year for general bearing types,such as self-aligning ball bearing,Tapered Roller Bearing,cylindrical roller Bearing,etc.
Based on the above advantages, we can make prompt delivery according to your requirement.
Warehouse items would Delivery of the goods within 5 - 8 days.
By courier/air or by cargo/sea


3.Competitive price
Large inventories and strong production capabilities enable us to offer more affordable prices globally.
Customers can get high-quality bearings with attractive prices at the same time
4.Non-standard Customized Service
We could customize many non-standard bearings as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.



4 . FAQ

Q : .What should i do for extending the bearings life ?

A : 1). Don't allow strong impact, such as hammer striking, transfer roller pressure

2). Use the accurate installation tool, avoid to use cloth kind and short fibers

3). Lubriexcavatore the bearing to avoid rust with high quality mineral oil, especially in summer

4). General inspection, such as the surrounding temperature, vibrate, noise inspection

5). Keep bearing cleaning from dirt, dust, pollutant, moisture.

6). Bearing should not be ultra cooled.



Q :      How long do I expect the goods to be sent out ?

A : (1) stock bearings can ship out within 3 days for small order ,if large order might use one week

       2) for large order need about 30days .



Q : Whats the shipping method can we use ?

A : (1) Quantity not exceed 5000pcs ,can use express shiping (ups,dhl,fedex,tnt)

     (2) Quantity exceed 5000pcs, can ship by sea



Q :  Can I use Money Gram ?

A :Sure , we accept TT,L/C,Money Gram,Western Union ,you can use as you wish



Q :  Can I request Carton Packing ?

A : Yes ,of couse , we can pack the goods as your request .either export box or wooden pallet or carton packing all is ok .



Q :  How should I know if your bearings quality is ok ?

A : Thats a good question ,each person has this kind of concern ,this is quite normal .

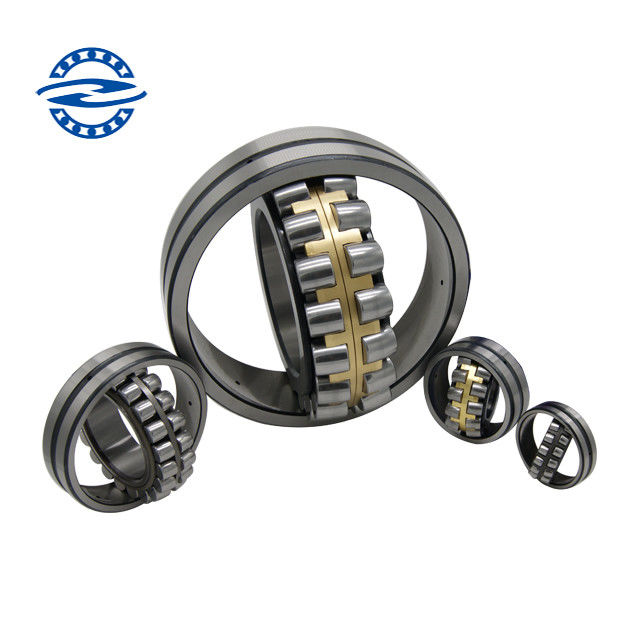

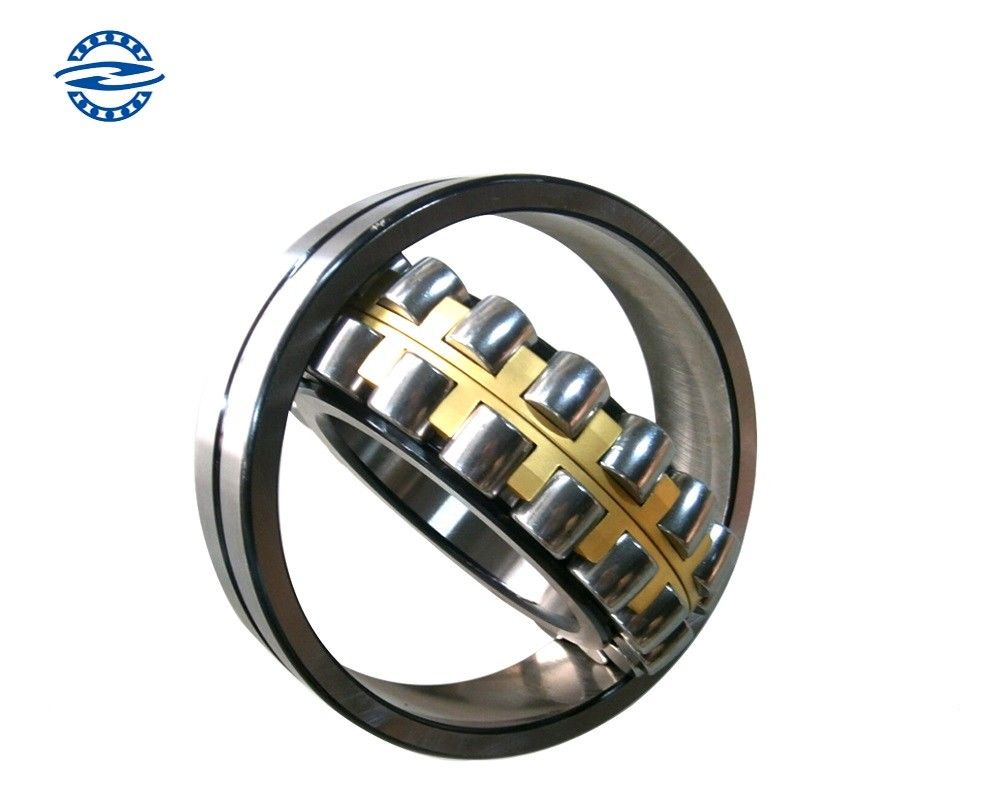

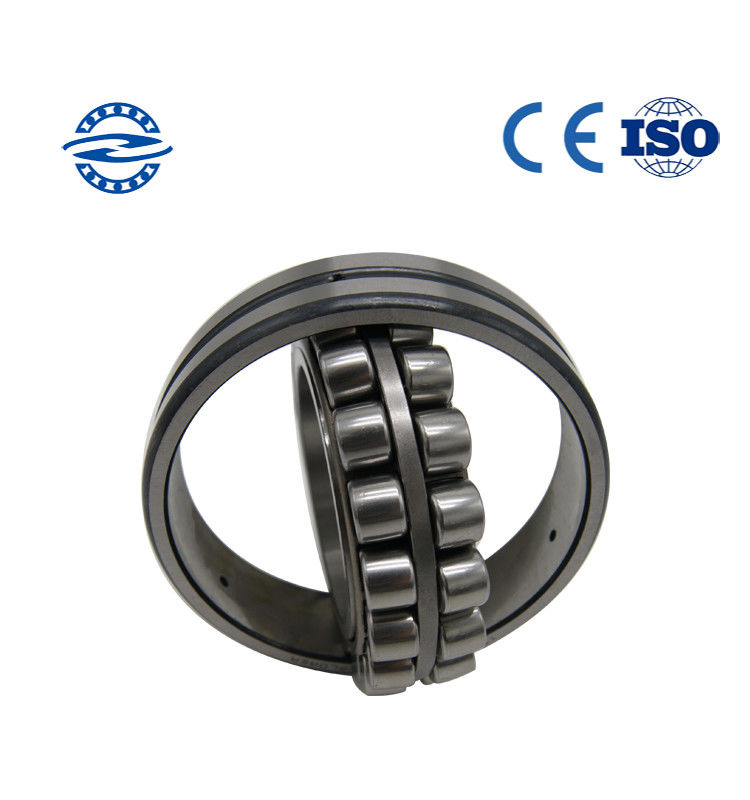

High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm 1High Temperature SS Radial Roller Bearing 22309 Size 45* 90 * 33mm 2
