Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | CNZH |
| Certification: | ISO:9001 |
| Model Number: | UCP220 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 1-30 usd |
| Packaging Details: | Chinese style packaging |
| Delivery Time: | 3-5work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000piece |
| MODEL: | UCP220 | CONDITION: | 100%NEW |
|---|---|---|---|
| WEIGHT: | 4.5KG | Seals Type: | OPEN |
| Precision Rating: | P0 P6 P5 | Type: | Block Bearing |
| Number Of Row: | Single Row | Material: | GCR15 |
| Feature: | HIGH SPEED | Place Of Origin: | LINQING SHANGDONG CHIAN |
| Application: | 6 MONTH | Service: | OEM |
| Packaging: | Chinese Style Packaging | ||
| High Light: | plummer block bearing,plummer block parts |
||

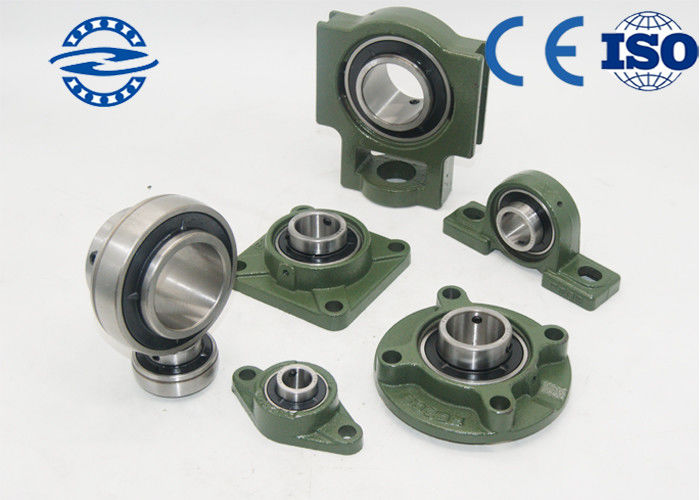

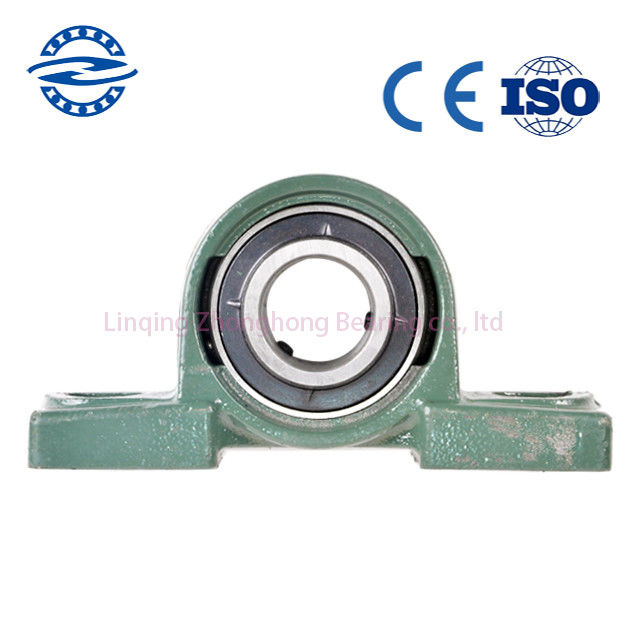

High Quality Stainless Steel Pillow Block Bearing
Outer spherical bearing is actually a variant of deep groove ball bearing. Its characteristic is that its outer ring and outer diameter surface are spherical and can be fitted into the corresponding concave ball of the bearing seat to play the role of centering
| bearing number | dimension(mm) | weight(kg) | ||||||
| d | D | B | S | C | R | DS | ||
| uc201 | 12 | 47 | 31 | 12.7 | 18.3 | 1 | m6*0.75 | 0.21 |
| uc202 | 15 | 47 | 31 | 12.7 | 18.3 | 1 | m6*0.75 | 0.19 |
| uc203 | 17 | 47 | 31 | 12.7 | 17 | 0.6 | m6*1 | 0.18 |
| uc204 | 20 | 47 | 31 | 12.7 | 17 | 1 | m6*0.75 | 0.16 |
| uc205 | 25 | 52 | 31.4 | 14.3 | 17 | 1 | m6*0.75 | 0.22 |
| uc206 | 30 | 62 | 38.1 | 15.9 | 19 | 1 | m6*0.75 | 0.35 |
| uc207 | 35 | 72 | 42.9 | 17.5 | 20 | 1.1 | m8*1 | 0.52 |
| uc208 | 40 | 80 | 49.2 | 19 | 21 | 1.1 | m8*1 | 0.7 |
| uc209 | 45 | 85 | 49.2 | 19 | 22 | 1.1 | m8*1 | 0.74 |
| uc210 | 50 | 90 | 51.6 | 19 | 24 | 1.1 | m10*1 | 0.83 |
| uc211 | 55 | 100 | 55.6 | 22.2 | 24 | 1.5 | m10*1 | 1.16 |
| uc212 | 60 | 110 | 65.1 | 25.4 | 27 | 1.5 | m10*1 | 1.56 |
| uc213 | 65 | 120 | 65.1 | 25.4 | 28 | 1.5 | m10*1 | 1.95 |
| uc214 | 70 | 125 | 74.6 | 30.2 | 29 | 1.5 | m12*1.25 | 2.18 |
| uc215 | 75 | 130 | 77.8 | 33.3 | 30 | 1.5 | m12*1.25 | 2.42 |
| uc216 | 80 | 140 | 82.6 | 33.3 | 33 | 2 | m12*1.25 | 2.82 |
| uc217 | 85 | 150 | 85.7 | 34.1 | 35 | 2 | m12*1.25 | 3.4 |
| uc218 | 90 | 160 | 96 | 39.7 | 37 | 2 | m12*1.25 | 4.3 |
| uc219 | 100 | 180 | 108 | 42 | 41 | 2 | m12*1.25 | 4.5 |
Our Sevrice
1.High precision, High accuracy, High speed
2. ISO 9001:2000
3. Can be customized according to your needs
4. Can provide small & miniature standard and non-standard ball bearings
5. Reasonable price
6. Technology: low vibration, low noise, high precision and durability
7. our quality is higher among the same price,our price is lower among the same quality,
8. For the same quantity bearings , our delivery time is shorter than other factory .
However , if the quantity is a little larger , the delivery time is about 3-15 days .
9. We supply best service. A good reputation has been our company virtue.
