Innovate ZH Bearing,
and Rotate the Peak of Bearing World!
Place of Origin: | China |
Brand Name: | CN&ZH |
Certification: | ISO9001:2008 |
Model Number: | 206 |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Neutral packing |
Delivery Time: | 1-2 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500 per day |
Type: | Cylindrical Roller Bearing | Number Of Row: | Single Row, Double Row |
---|---|---|---|
Precision Rating: | P6, P0, P5, P4 | Seals Type: | Open |
Inner Diameter: | 30mm | Outside Diameter: | 62mm |
Weight: | 0.24kg | Service: | OEM Customized Services |
Application: | Machinery, Automotive, Motors, Dynamos, Combustion Turbines | Package: | Box, Cartons, |
High Light: | industrial roller bearings,cylinder roller bearing |

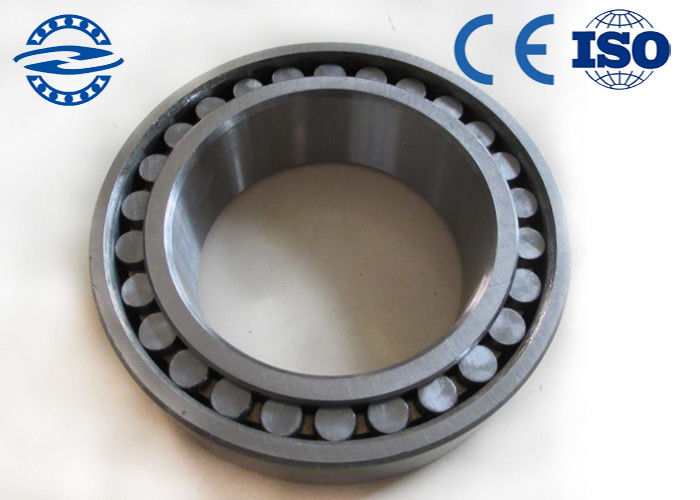

Double Row Cylindrical Roller Bearing NU / NJ 206 GCR 15 Chrome Steel Brass Cage

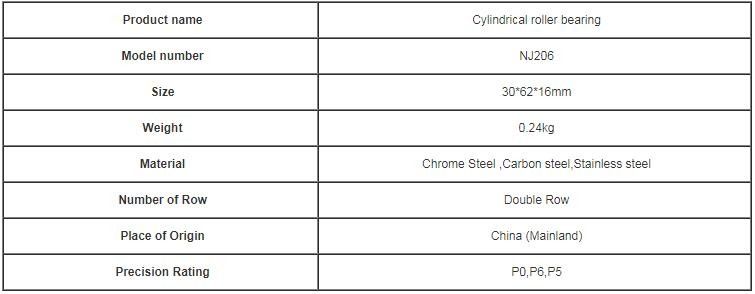

Product name | Cylindrical roller bearing |
Model number | NJ206 |
Size | 30*62*16mm |
Weight | 0.24kg |
Material | Chrome Steel ,Carbon steel,Stainless steel |
Number of Row | Double Row |
Place of Origin | China (Mainland) |
Precision Rating | P0,P6,P5 |
Description
Full cylinder roller bearings are designed to withstand heavy loads.Under the same width, the bearing has a very high bearing capacity compared with the traditional belt retaining bearing, and the radial section is small, which can save space
With two inner circles, two inner circles are joined together by the clamping ring, which can not be separated. The outer ring has a middle baffle, which can withstand the axial load of both directions and used as a positioning bearing.
As the distance between the two rows of roller is larger, it can also withstand the overturning moment.
There are two stop slots on the outer surface of the outer ring
Product feature
High radial load capacity - making them suitable for high speed applications.
Design - designated NU, NJ, NUP, N or NF for single row bearing and NNU or NN
for double row types, defines the bearing ring rib configuration
Cage - Available with pressed steel, machined brass and polyamide cages throighout the range.
Bearing are also available with both lubrication holes and a machined lubrication groove on the outside surface of the outer ring.
Reference model
NJ200series | ||
Bearing Number | Dimension (mm ) | Weight (kg) |
NJ202 | 15*35*11 | 0.06 |
NJ203 | 17*40*12 | 0.074 |
NJ204 | 20*47*14 | 0.14 |
NJ205 | 25*52*15 | 0.16 |
NJ206 | 30*62*16 | 0.24 |
NJ207 | 35*72*17 | 0.3 |
NJ208 | 40*80*18 | 0.45 |
NJ209 | 45*85*19 | 0.52 |
NJ210 | 50*90*20 | 0.587 |
NJ211 | 55*100*21 | 0.69 |
NJ212 | 60*110*22 | 0.9 |
NJ213 | 65*120*23 | 1.05 |
NJ214 | 70*125*24 | 1.36 |
NJ215 | 75*130*25 | 1.4 |
NJ216 | 80*140*26 | 1.53 |
NJ217 | 85*150*28 | 2.17 |
NJ218 | 90*160*30 | 2.72 |
NJ219 | 95*170*32 | 2.9 |
NJ220 | 100*180*34 | 3.5 |
NJ222 | 110*200*38 | 4.8 |
NJ224 | 120*215*40 | 5.85 |
NJ226 | 130*230*40 | 7 |
NJ228 | 140*250*42 | 9.1 |
NJ230 | 150*270*45 | 11 |
NJ232 | 160*290*48 | 14 |
NJ234 | 170*310*52 | 17.1 |
NJ236 | 180*320*52 | 18 |
NJ238 | 190*340*55 | 23 |
NJ240 | 200*360*58 | 26 |
NJ244 | 220*400*65 | 36 |
NJ248 | 240*440*72 | 48.2 |
NJ252 | 260*480*80 | 70 |
NJ256 | 280*500*80 | 70.7 |
NJ260 | 300*540*85 | 87.2 |
NJ264 | 320*580*92 | 109 |
Application
Widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper,windpower, heavy machinery, enginnering machinery, port machinery and otherindustries.
Why chose us? What advantage do we have?
1.high evaluation
2.OEM is acceptable
3.Small order is ok, goods is in stock.
4. Sample lead time: 1 days, bulk delivery day: 1-3 days
5.Our moldings are over 4000 sets.
6.Our company is factory manufacturer with 10 years experience.
7.gold service, diamond quality, stone price
