Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CNZH |
| Model Number: | 6303 |
| Certifiexcavatorion: | IS09001:2008 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Neutral packing/ Customized |
| Delivery Time: | 500 per day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Material: | GCR15(chrome Steel) | Cage: | Steel |
|---|---|---|---|
| Precision: | P0 P6 P5 P4 P5 | Inner Diameter: | 17mm |
| Out Diameter: | 47mm | Weight: | 0.115kg |
| Clearance: | C2 C3 C4 | Precision Rating: | P0 P2 P5 |
| High Light: | deep groove roller bearing,thin section ball bearings |
||

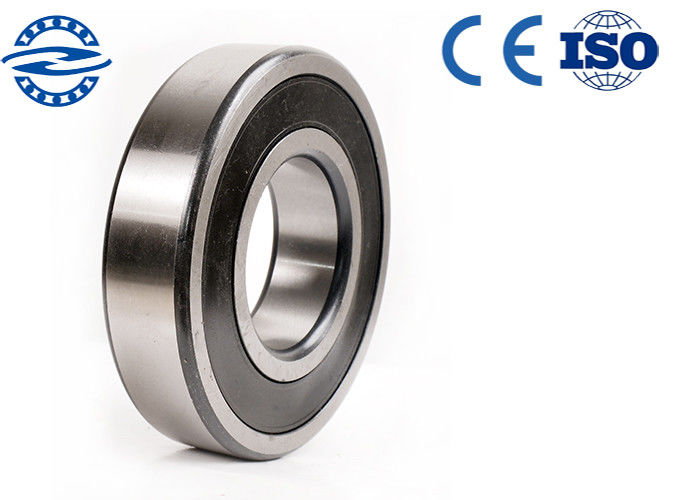

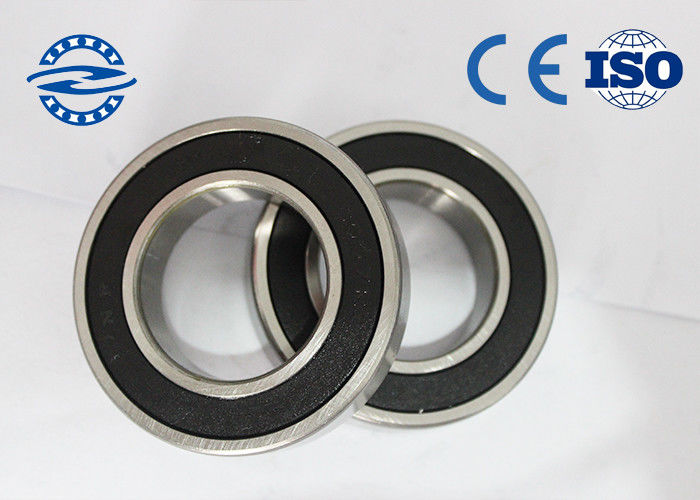

The most typical rooling bearing---Deep Groove Ball Bearing 6303
Introdution
Deep groove ball bearings are the most typical rolling bearings with the characteristics of simply designed structures,convenience in operation and extensive appliexcavatorions.They are designed as non-separable bearings.The raceways in both of the rings are in arc groove form.which can carry radial load and doubl directions axial load.They are of features of low friction factor,high limit rotational speed and can be applied in tuations where high-rotating speed and low vibration are required.
These product are single row and they can't separable , They have two designed : open and closed seal (with seal or dust cover) ,open type bearing can also install sealing parts or dust cover . these deep groove ball beaing are the most typical , their structre are most simple and their appliexcavatorion are wide.

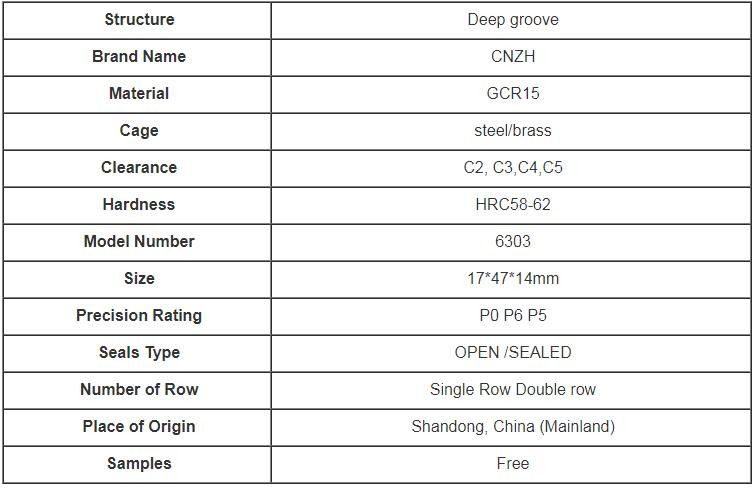

Parameter
| Structure | Deep groove |
| Brand Name | CNZH |
| Material | GCR15 |
| Cage | steel/brass |
| Clearance | C2, C3,C4,C5 |
| Hardness | HRC58-62 |
| Model Number | 6303 |
| Size | 17*47*14mm |
| Precision Rating | P0 P6 P5 |
| Seals Type | OPEN /SEALED |
| Number of Row | Single Row Double row |
| Place of Origin | Shandong, China (Mainland) |
| Samples | Free |
Appliexcavatorion
1.They can be applied in tuations where high-rotating speed and low noise and low vibration.
2.Automobile, machine tools, motors, instruments, stryction machines ,railway vehicle ,agricultural machines and various other special machines.
Other size
| Deep groove ball bearing 6300serie | ||
| Bearing Number | Dimension(mm) | Weight(kg) |
| 6300 | 10X35X11 | 0.053 |
| 6301 | 12X37X12 | 0.06 |
| 6302 | 15X42X13 | 0.082 |
| 6303 | 17X47X14 | 0.115 |
| 6304 | 20X52X15 | 0.142 |
| 6305 | 25X62X17 | 0.232 |
| 6306 | 30X72X19 | 0.34 |
| 6307 | 35X80X21 | 0.453 |
| 6308 | 40X90X23 | 0.636 |
| 6309 | 45X100X25 | 0.825 |
| 6310 | 50X110X27 | 1.05 |
| 6311 | 55X120X29 | 1.36 |
| 6312 | 60X130X31 | 1.67 |
| 6313 | 65X140X33 | 2.08 |
| 6314 | 70X150X35 | 2.55 |
| 6315 | 75X160X37 | 3.02 |
| 6316 | 80X170X39 | 3.6 |
| 6318 | 90X190X43 | 4.91 |
| 6319 | 95X200X45 | 5.7 |
| 6320 | 100X215X47 | 7.09 |
| 6321 | 105X225X49 | 8.05 |
| 6322 | 110X240X50 | 9.53 |
| 6324 | 120X260X55 | 12.2 |
| 6326 | 130X280X58 | 14.77 |
| 6328 | 140X300X62 | 18.33 |
Company features
.Employees characteric: hard work and continuous improvement and innvation
.Company's goals: a hundred years the name Enterprise, the industry fresh air
.Company philosophy: science and technology, quality, service, win-win situation
.Development tactics: The company’s brand entered international
.Factory philosophy: produce the high quality product and technology profession
.Give the partner the best service
Other product
cylindrial roller bearing
spherical roller bearibg
taper roller bearing
