Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
Product Details:
Payment & Shipping Terms:
|
| Material: | GCR15(chrome Steel) | Precision Rating: | P0 P6 P5 P4 P2 |
|---|---|---|---|
| Lubriexcavatorion: | Grease,Oil | Weight: | 0.06kg |
| Bore Diameter: | 15mm | Width: | 11mm |
| High Light: | industrial roller bearings,cylinder roller bearing |
||

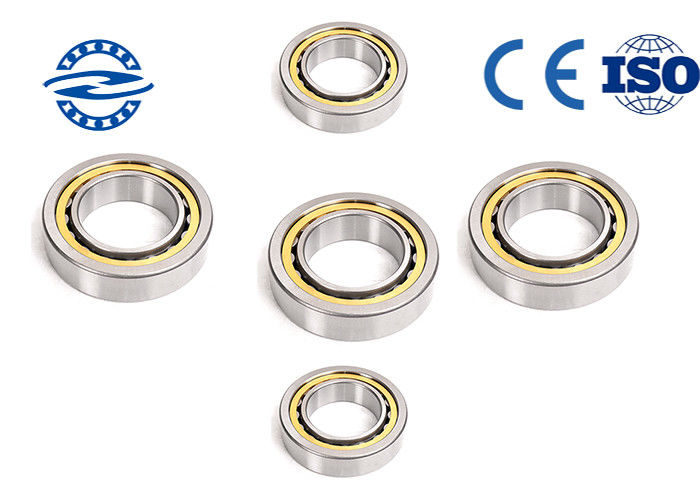

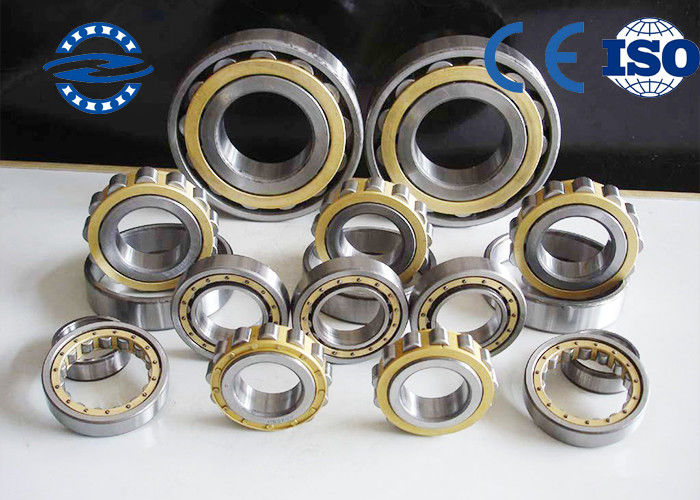

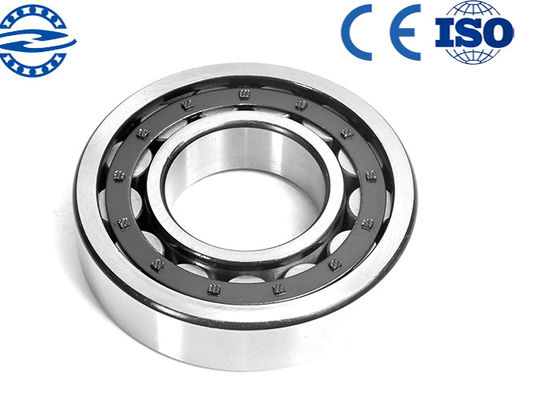

Cylindrical Roller Bearing with single row/double row
Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the international standard assortment provided here.
Bearings with a cage can accommodate heavy radial loads, rapid accelerations and high speeds. Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. CHIK high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage.
1. Cylindrical roller bearings feature high radial load because the rollers and raceway are in linear contact
2. The NU and N types exhibit their best performance when used as free side bearings since they adjust to the shaft axial movement, to a certain extent, relative to the housing position
3. The NJ and NF types carry a certain degree of axial displacement in both directions so they are also used as free side bearings
4. Moreover, we can manufacture these bearings according to customer's drawings and samples.Single row cylindrical roller bearings as for the ring ribs divided into N-type,NU type,NJ and NUP type and so on.Cylindrical roller bearings withstand heavily capacity of the radial load.But according to the structure of ring ribs can also be under some one-way or two-way axial load.NN and NNU type double row cylindrical roller bearings are compact structure,which with strong rigidity and bears load capacity.Even if it has bear heavily load ,its deformation is small.It mostly used for machine tool spindle bearing.FC,FCD,FDCP-type four-row cylindrical roller bearings can bear greater radial load,mostly using for rolling mill and other heavy machinery.
Parameters
| Model | NJ202 | |
| Brand | KOYO NTN NSK ZH | |
| Dimensions(mm) | ||
| Structure | Single row | NU / N / NJ / NF / NUP |
| Double rows | NN / NN-K / NNU-K / NNCF / NNCL / NNCS | |
| Precision Rating | P0,P6,P5,P4,P2(ABEC1,ABEC3,ABEC5,ABEC7,ABEC9) | |
| Clearance |
C2:Radial clearance is less than the basic group Co: Radial clearance of basic group, not marked C3:Radial clearance is more than the basic group C4:Radial clearance is more than C3 C5:Radial clearance is more than C4 |
|
| Viberation Level | V1,V2,V3,V4 | |
| Material | GCr15 | |
| Cerfiexcavatorion | ISO9001:2008 | |
| NJ200series | ||
| Bearing Number | Dimension (mm ) | Weight (kg) |
| NJ202 | 15*35*11 | 0.06 |
| NJ203 | 17*40*12 | 0.074 |
| NJ204 | 20*47*14 | 0.14 |
| NJ205 | 25*52*15 | 0.16 |
| NJ206 | 30*62*16 | 0.24 |
| NJ207 | 35*72*17 | 0.3 |
| NJ208 | 40*80*18 | 0.45 |
| NJ209 | 45*85*19 | 0.52 |
| NJ210 | 50*90*20 | 0.587 |
| NJ211 | 55*100*21 | 0.69 |
| NJ212 | 60*110*22 | 0.9 |
| NJ213 | 65*120*23 | 1.05 |
| NJ214 | 70*125*24 | 1.36 |
| NJ215 | 75*130*25 | 1.4 |
| NJ216 | 80*140*26 | 1.53 |
| NJ217 | 85*150*28 | 2.17 |
| NJ218 | 90*160*30 | 2.72 |
| NJ219 | 95*170*32 | 2.9 |
| NJ220 | 100*180*34 | 3.5 |
| NJ222 | 110*200*38 | 4.8 |
| NJ224 | 120*215*40 | 5.85 |
| NJ226 | 130*230*40 | 7 |
| NJ228 | 140*250*42 | 9.1 |
| NJ230 | 150*270*45 | 11 |
| NJ232 | 160*290*48 | 14 |
| NJ234 | 170*310*52 | 17.1 |
| NJ236 | 180*320*52 | 18 |
| NJ238 | 190*340*55 | 23 |
| NJ240 | 200*360*58 | 26 |
| NJ244 | 220*400*65 | 36 |
| NJ248 | 240*440*72 | 48.2 |
| NJ252 | 260*480*80 | 70 |
| NJ256 | 280*500*80 | 70.7 |
| NJ260 | 300*540*85 | 87.2 |
| NJ264 | 320*580*92 | 109 |
Appliexcavatorion
Widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper,windpower, heavy machinery, enginnering machinery, port machinery and otherindustries.
PACKING&Delivery time
1.industrial packing+industrial cartons+pallets
2.follow customer's requests
a.3-5days for samples
b.10-15days
Payment terms
1.30%TT in advance,70%balance has to be paid before first shipment
2.100%LC at sight
3.Western Union
4.Paypal
5.other payment terms depend on our discussio
FQA
Q1. Do you have what other types of bearings?
A: We have deep groove ball bearing , self- aligning ball bearing , cylindrical roller bearing ,spherical roller bearings , angular contact ball bearings , thrust ball bearing , thrust ball bearing , pillow block bearing , joint bearng ,needle bearing. You can choose according to your needs.
Q2. Can I choose the bearing number I need ?
A: Sure , you can choose the model you need. We will design the model you decide.
Q3. Can you adjust the price again ?
A: We can talk to each other.
