Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA Japan |
| Brand Name: | QIEAL ZH |
| Model Number: | DAC40740040ZZ |
| Certifiexcavatorion: | ISO-9001 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | neutral packing |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 pieces /months |
| Weight: | 0,66 KGS | Inner Diameter [d: | 8 |
|---|---|---|---|
| Outer Diameter [D: | 8 | Inner Ring Width [B: | 8 |
| Bore Type: | Cylindrical | Suitable For: | Car |
| Bearing Cage: | Steel Cage. Copper Cage. Nylon Cage | Bearing OEM: | Acceptable |
| High Light: | excavator components,excavator engine parts |
||

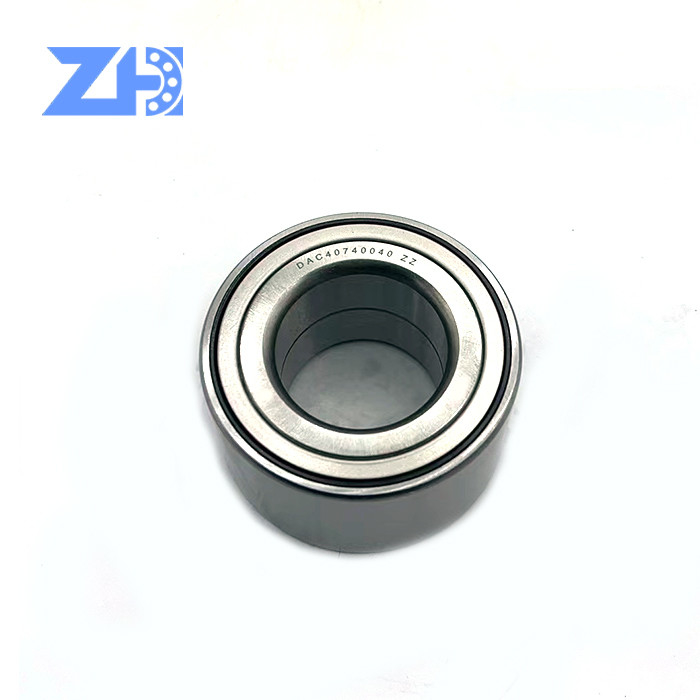

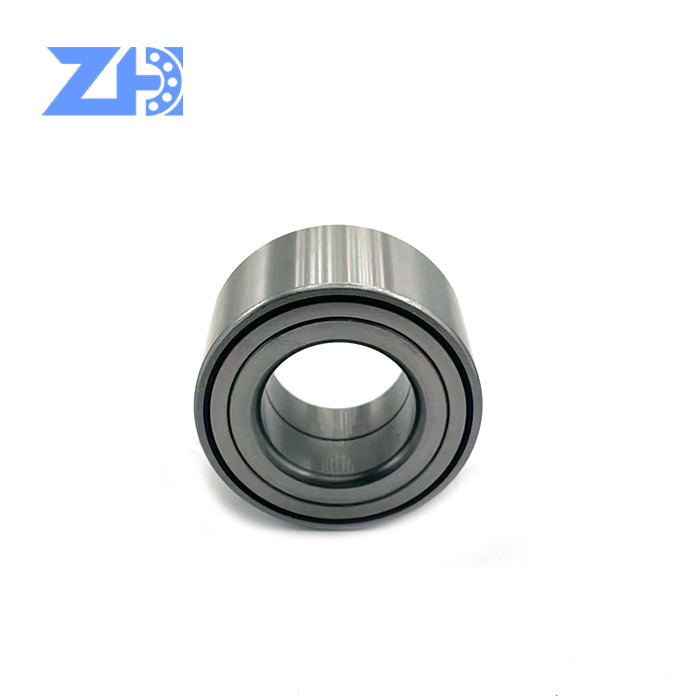

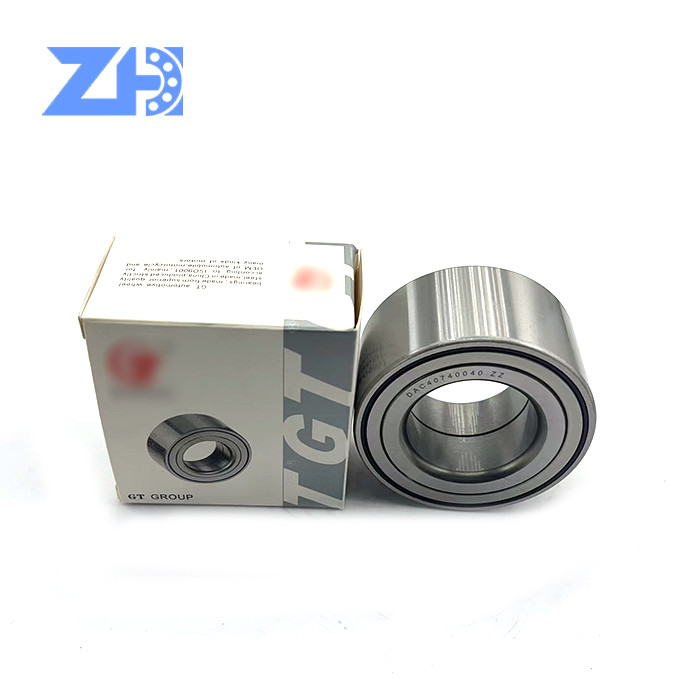

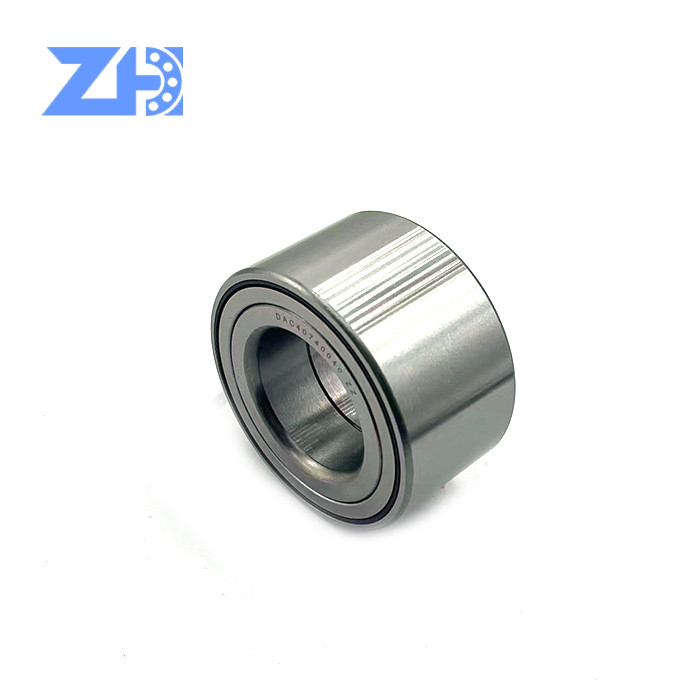

Automotive Bearings Wheel Hub Bearing DAC40740040 Front Wheel Bearing 40x74x40 Mm
Product Description
Wheel Hub bearings not only carry axial load but also carry radial load, they are important components. They can carry heavy radial load which include axial and radial load and torques load, they can limit axial displacement both sides. They are mainly used in components which limitation of bearings and shell axial displacement of both sides. Hub bearings' design are familiar to the two back to back order single row contact ball bearings.
| Bearing Number | DAC 40740040 |
| Bearing Structure | Wheel Hub Bearing |
| Bearing Boundary Dimensions | d:40mm |
| D:74mm | |
| B:40mm | |
| Bearing Rings Material | GCR15,Chrome Steel,Stainless Steel |
| Bearing Cages Material | Nylon,Steel,Brass |
| Bearing Appliexcavatorion | Mainly used in metallurgy,mining,petroleum,chemical industry,construction machinery and other areas |
| Bearing Certifiexcavatorions | ISO 9001:2008 |
| Bearing Orgin | China(Mainland) |
Related Products
| Number | Specifiexcavatorion | Rated Load(KN) | Speed(r/min) | Weight | ||||
| D(mm) | D(mm) | W(mm) | Cr(N) | Cor(N) | Grease | Oil | kg | |
| DAC204229/30 | 20 | 42 | 30 | 1.2 | 11 | 1000 | 3000 | 0.18 |
| DAC25520037 | 25 | 52 | 37 | 2.4 | 2.6 | 3000 | 5000 | 0.31 |
| DAC25520040 | 25 | 52 | 40 | 5.8 | 2.9 | 22000 | 28000 | 0.35 |
| DAC25520042 | 25 | 52 | 42 | 76 | 3.6 | 20000 | 25000 | 0.36 |
| DAC25520043 | 25 | 52 | 43 | 6.9 | 3.2 | 18000 | 24000 | 0.36 |
| DAC25520043/45 | 25 | 52 | 43 | 7.9 | 3.8 | 20000 | 25000 | 0.37 |
| DAC25550043 | 25 | 55 | 43 | 8.9 | 4.8 | 17000 | 22000 | 0.44 |
| DAC25550045 | 25 | 55 | 45 | 7.9 | 4.2 | 16000 | 22000 | 0.46 |
| DAC255600206/29 | 25 | 56 | 20.6 | 9.2 | 4.9 | 17000 | 22000 | 0.28 |
| DAC25560032 | 25 | 56 | 32 | 10.4 | 5.6 | 15000 | 20000 | 0.34 |
| DAC256000206/29 | 25 | 60 | 20.6 | 9.9 | 5.5 | 14000 | 19000 | 0.33 |
| DAC27520045/43 | 27 | 52 | 45 | 10.8 | 5.8 | 15000 | 20000 | -- |
| DAC27600050 | 27 | 60 | 50 | 14 | 7.8 | 13000 | 18000 | -- |
| DAC28580042 | 28 | 58 | 42 | 13.4 | 7.6 | 12000 | 16000 | -- |
| DAC28610042 | 28 | 61 | 42 | 14.5 | 8.1 | 13000 | 18000 | -- |
| DAC29530037 | 29 | 53 | 37 | 15.8 | 9.7 | 11000 | 16000 | -- |
| DAC30580042 | 30 | 58 | 42 | 14.8 | 9.3 | 10000 | 14000 | -- |
| DAC30600037 | 30 | 60 | 37 | 16.5 | 10 | 11000 | 16000 | 0.42 |
FAQ
1. What is your Before-sales Service ?
1>.Offer bearing related consultation about technology and appliexcavatorion;
2>.Help customers about bearing choice, clearance configuration, products' life and reliability analysis;
3>.Offer highly cost-effective and complete solution program according to site conditions;
4>.Offer localized program on introduced equipment to save running cost
5>.Design and develop non-standard bearing to support customers' technology innovation
2. What is your After-sales Service ?
1>.Offer training about bearing installation and maintenance;
2>.Offer guidance about bearing installation, adjustment and testing at site;
3>.Help customers with trouble diagnosis and failure analysis;
4>.Visit customers regularly and feedback their rational suggestions and requirements to company
3.What is the MOQ?
MOQ is 1 pcs for standardized products; for customized products, MOQ should be negotiated in advance.
There is no MOQ for sample orders.
4. What is your advantages?
A: 1. Manufacturer,the most competive price and good quality.
2. Perfect group of technical engineers give you the best support.
3.Well-trained group of international sales provide the best service.
4.OEM brand aviliable.
5.Rich stock and quick delivery.
