| Place of Origin: | CHINA |
| Brand Name: | QIEAL ZH |
| Model Number: | SF4831 joint |
| Certifiexcavatorion: | ISO-9001 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | QR brand and Normal packing；Accoding to your requestment |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Pieces per Month |
| Type: | BALL | Structure: | Angular Contact |
|---|---|---|---|
| Bore Size: | 0.1 - 240 Mm | Outside Diameter: | 0.1 - 310 Mm |
| Precision Rating:: | P0,P6,P5 | Number Of Row: | Single Row |
| Height: | 33.4 Mm | Bearing Material: | GCR-15 |
| Weight: | 5.2 KG | Classifiexcavatorion: | Excavator Spare Parts |
| High Light: | excavator spare parts,mini excavator parts |
||

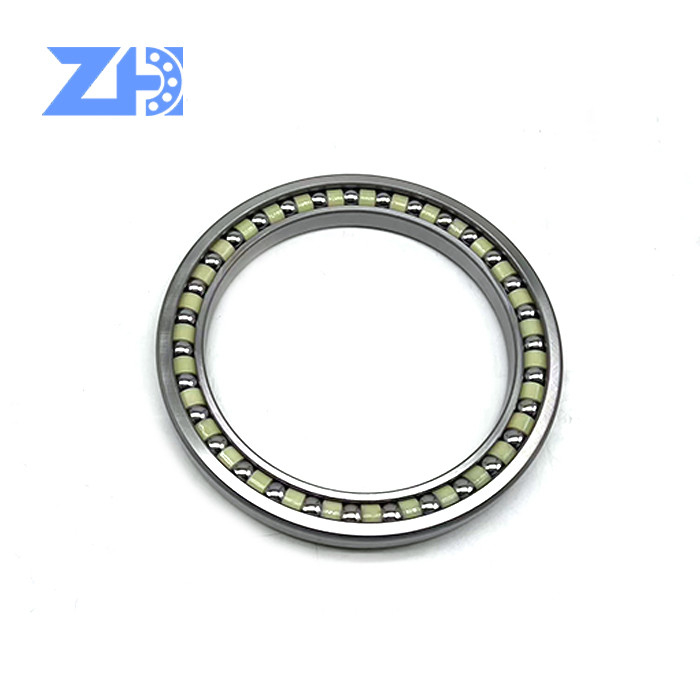

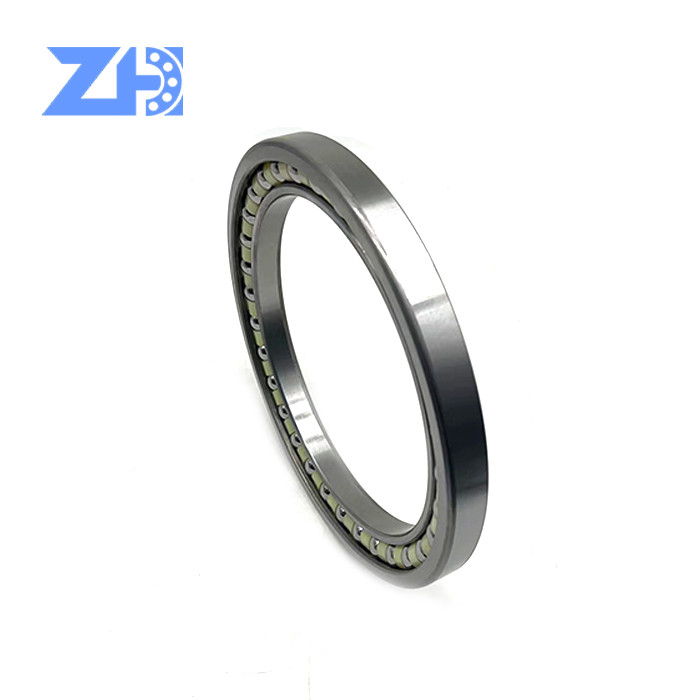

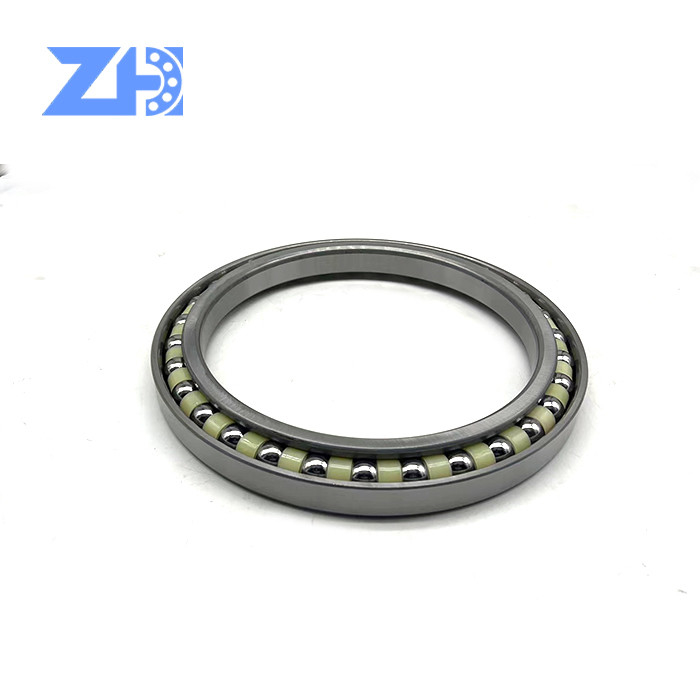

SF4831 Excavator Bearing Angular Contact Ball Bearing Travel Final Drive Bearing
1) SF4831 bearingspecialized angular ball bearing are used for the appliexcavatorion of excavator machinery.
2) NTN Excavator bearing has big contact angle(40 degree), so can undertake big axial load .
3) Excavator bearing can carry heavier load capacity than the same size bearings because it has
4) High-accuracy, low-noise, long-life and this kink of bearing are widely used in excavator.
| Bearing NO. | SF4831VPX1 bearing |
| Size | 240*310*33.4 mm |
| Weight/KG | 5.2 kg / pc |
| Material | GCR-15 |
| Cage | steel |
| Appliexcavatorion | Machinery project |
| Bearing type | Angular contact ball bearing |
| Bearing NO. | d | D | H | W |
| AC5836 | 289 | 355 | 34 | 4.6 |
| AC5033 | 250 | 330 | 37 | 6 |
| AC463240 | 230 | 320 | 40 | 7.2 |
| AC4629 | 230 | 290 | 27 | 3.2 |
| AC4531 | 225 | 315 | 36 | 5 |
| AC423040 | 210 | 300 | 40 | 5.4 |
| AC4630 | 230 | 300 | 35 | 5.4 |
| AC6037 | 300 | 370 | 33 | 5.8 |
| AC4631 | 230 | 310 | 39 | 5.4 |
| AC523438-1 | 260 | 340 | 38 | 6 |
| BA195-3A | 195 | 280 | 36.5 | 6.2 |
| BA152-2036 | 150 | 203 | 26 | 1.5 |
| BA222-1WSA | 222 | 273 | 26 | 2.3 |
| BA220-6WSA | 220 | 276 | 26 | 2.7 |
| BA240-3WSA | 240 | 310 | 33.5 | 4.5 |
| BA230-7WSA | 230 | 300 | 35 | 5.4 |
| BA180-4WSA | 180 | 250 | 33 | 3.2 |
| BA280-2WSA | 280 | 370 | 40 | 6 |
| BA300-4WSA | 300 | 395 | 50 | 11.5 |
| BA205-1 | 202 | 295 | 40 | 7 |
| BA180-2256 | 180 | 2250 | 21.5 | 1.5 |
| BA184-2251 | 184 | 226 | 21.5 | 1.6 |
| BA290-3A | 290 | 280 | 40 | 9.4 |
| BA250-4A | 250 | 330 | 38 | 6.2 |
| BA246-2A | 246 | 313 | 32 | 4.3 |
| BA289-1 | 289 | 355 | 33 | 4.6 |
| BA210-10 | 300 | 280 | 38 | 5.5 |
| BA300-5 | 300 | 380 | 40 | 9.5 |
| BA230-2 | 230 | 320 | 40 | 5.4 |
| BA260-3 | 260 | 340 | 38 | 7.2 |
| Bearing NO. | d | D | H | W |
| BA260-4 | 260 | 340 | 38 | 7.2 |
| BA-220-1 | 220 | 280 | 28 | 3 |
| BA270-3 | 270 | 350 | 40 | 6.6 |
| BA16519 | 165 | 203 | 19 | 1.5 |
| 120BA16 | 120 | 165 | 22 | 1.1 |
| 260BA355-2 | 260 | 355 | 44 | 6 |
| 180BN19W | 180 | 250 | 33 | 3.5 |
| MC6034 | 600 | 340 | 18 | 3.2 |
| BA168-1 | 168 | 205 | 20 | |
| BA200-7B | 200 | 250 | 24 | 2.1 |
| SF2812PX1 | 140 | 175 | 17.5 | 0.6 |
| SF3227VPX1 | 160 | 200 | 10 | 1.2 |
| SF3607 | 180 | 225 | 24 | 1.2 |
| SF4826VPX1 | 240 | 310 | 33 | 5.1 |
| SF4852VPX1 | 240 | 310 | 33 | 5 |
| SF4820PX1 | 240 | 310 | 34 | 5.2 |
| SF4815VPX1 | 240 | 310 | 34 | 5 |
| SF4831VPX1 | 240 | 310 | 33.4 | 5.2 |
| SF4007VPX1 | 200 | 250 | 24 | 1.7 |
| SF4019VPX1 | 200 | 260 | 30 | 3.5 |
| SF3235VPX1 | 260 | 330 | 35 | 5.2 |
| SF4444VPX1 | 220 | 295 | 32 | 4.5 |
| SF4454VPX1 | 220 | 295 | 33 | 4.8 |
| SF4411VPX1 | 220 | 290 | 32.5 | 5.5 |
| SF6015PX1 | 300 | 372 | 36 | 6 |
| 200BA27V | 200 | 270 | 33 | |
| 210BA29V | 210 | 295 | 35 | |
| 240BA3251 | 240 | 320 | 38 | 5 |
| BD130-1WSA | 130 | 166 | 34 | 1.4 |
Excavator Deep groove ball bearing series :
|
|
6209 excavator deep groove ball bearing 45*85*19 mm
6211 excavator deep groove ball bearing 55*100*21 mm
6220 excavator deep groove ball bearing 100*180*34 mm
6204 excavator deep groove ball bearing 20*47*14 mm |
Excavator spherical roller bearing series :
 |
22218 excavator spherical roller bearing 90*160*40 mm
22220 excavator spherical roller bearing 100*180*46 mm
22222 excavator spherical roller bearing 110*200*53 mm
22319 excavator spherical roller bearing 95*200*67 mm
|
Excavator inch size tapered roller bearing series :
 |
Excavator inch tapered roller bearing 4T-065 (65*130*37.1 mm)
Excavator inch tapered roller bearing R196Z-4 (196.85*241.3*12 mm)
Excavator inch tapered roller bearing 593/592 (89.09*152.4*39.688 mm)
Excavator inch tapered roller bearing 913840/10 (59.987*146.050*41.275 mm) |
Excavator Slewing bearing series :
 |
Excavator slewing bearing 021.25.560 (444*676*106 mm )
Excavator slewing bearing 022.60.4500 (4222*4778*226 mm )
Excavator slewing bearing 023.25.500 (384*616*106 mm)
Excavator slewing bearing 024.50.2240 (2025*2455*190 mm ) |
Excavator joint bearing series :
 |
Excavator joint bearing GE120ES 120*180*70 mm
Excavator joint bearing GE180ES 180*260*105 mm
Excavator joint bearing GE200ES 200*290*130 mm
Excavator joint bearing GE240ES 240*340*140 mm |
Excavator walking bearing series :
 |
Excavator walking bearing BA260-4 260*340*38 mm
Excavator walking bearing BA240-3ASA 240*310*33.5 mm
Excavator walking bearing SF4411VPX1 290*220*32 mm
Excavator walking bearing HS05145 117*145*14 mm |
