| Place of Origin: | CHINA |
| Brand Name: | QIEAL ZH |
| Model Number: | NU2226ECM |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | QR brand and Normal packing；Accoding to your requestment |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 /Pieces per Month |
| Type: | Roll | Structure: | Cylindrical |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machiner | Precise Evaluation: | P0 P6 P5 |
| Number Of Rows: | Single Row | Material: | Chrome Steel |
| Weight: | 11.33kg | Size: | 130*230*64 Mm |
| Cage: | Brass Cage/Steel Cage/Nylon Cage | Feature: | Long Life High Speed |
| High Light: | excavator components,excavator spare parts |
||

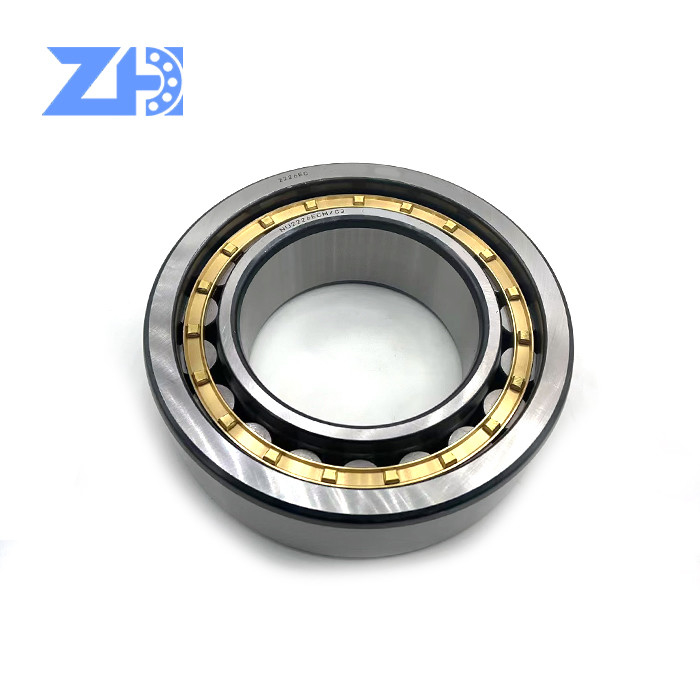

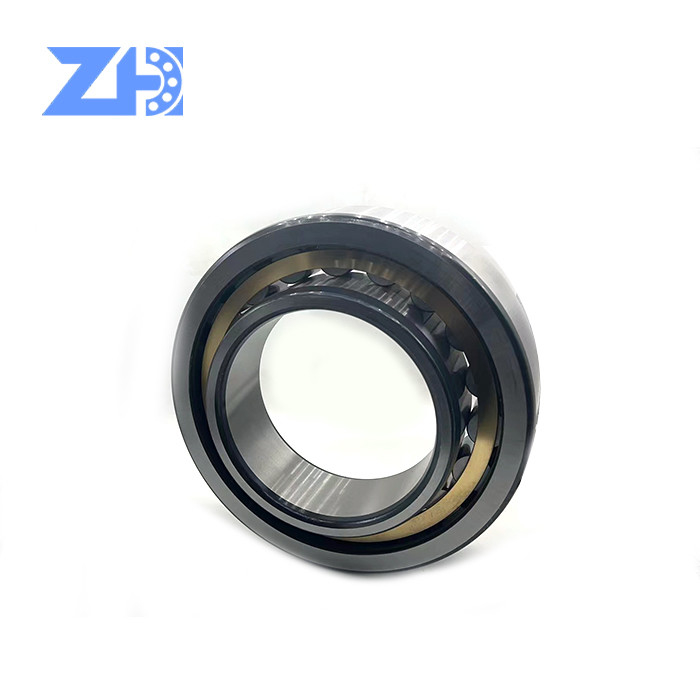

Single Row Cylindrical Roller BearingNU2226ECM Low Noiseroller Bearing130*230*64
Design for high radial loads and shock loads while maintaining high-speed rotation characteristics.

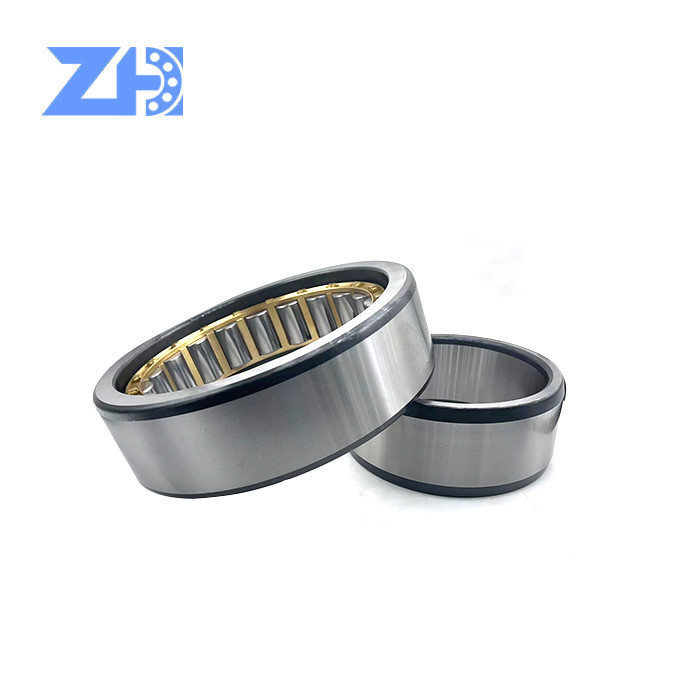

Components are separable and interchangeable, which is convenient for installation, disassembly and inspection.
The followings are several common designs of cylindrical roller bearings.The difference is reflected in the flange design of the inner ring and the outer ring, as well as the structure and material of the cage.
NU Design Bearings have a outer ring with two integral flanges and an inner ring with no flanges,so they can accommodate axial displacement of the shaft relative to the housing in both directions . Axial fixation can be achieved with the angle ring.
N Design Bearings have an inner ring with two integral flanges and a outer ring without flanges,so they can accommodate axial displacement of the shaft relative to the housing in both directions.
NJ Design Bearings have a outer ring with two flanges and an inner ring with one flange, so they are used to axially loexcavatore the shaft in one direction. Axial fixation in the other direction can be achieved with an angle ring.
NUP Design Bearings have two integral flanges on the outer ring and one integral flange and a loose flange ring on the inner ring so they are used to loexcavatore the shaft axially in both directions.
| designations: | NU 2226 ECP ECJ ECM ECML |
| inside : | 130 mm |
| outside : | 230 mm |
| width : | 64 mm |
| product Mass : | ≈ 10 kg |
| ring material : | GCR15/ Chrome Steel |
| roller material : | GCR15/ Chrome Steel |
| cage material : | Fibreglass(plastic) or Stamped Steel or Brass |
| sealed: | Open |
| number of row: | Single Row |
| precision rating: | P0 P6 P5 P4 P2 |
| appliexcavatorion industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc. |
| price list: | Negotiate |
| service: | OEM or Customer Logo Acceptable and Sample Offer |
| package: | As Customer Required |
| more service: | plz Contact Us ! The contact address is at the bottom. |
Hi,firend ! if you do not find the products you need in this form, plz be free to contact us! Our company can customize
various designs of cylindrical roller bearings.
