Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 22326MA |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | interview |
| Packaging Details: | Your requirement |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 30000 Set/Sets per Month |
| Product Name: | Spherical Roller Bearing | Model: | 22326MA |
|---|---|---|---|
| Material: | CHROME STEEL | MOQ: | 1 |
| Supply: | 30000 Set/Sets Per Month | Price: | Factory Price |
| Quality: | P0、P2、P4、p5、p6 | Size: | 130*280*93mm |
| High Light: | excavator components,excavator engine parts |
||

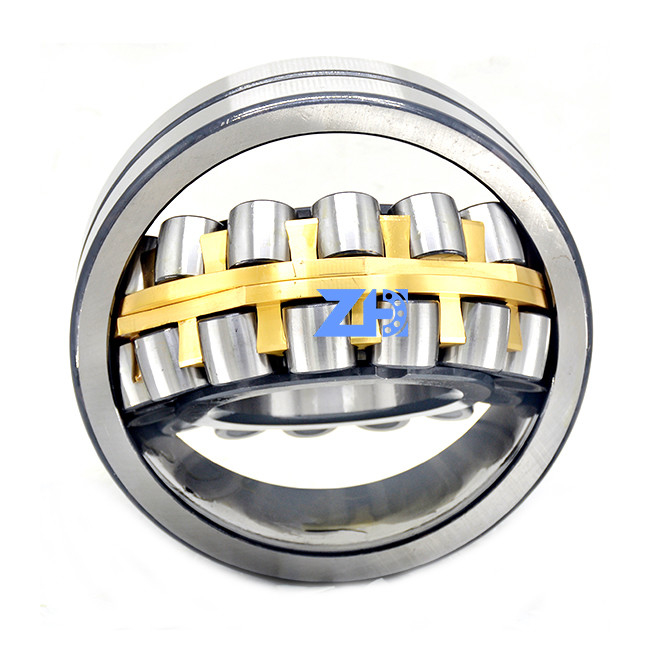

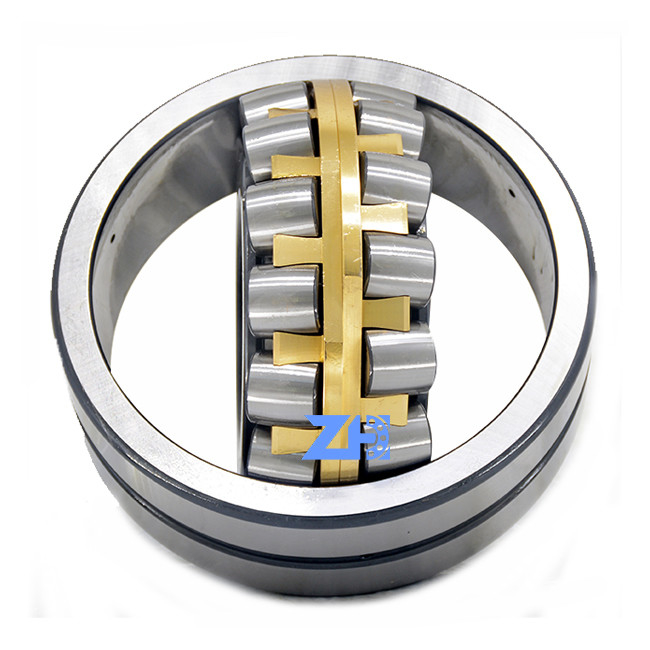

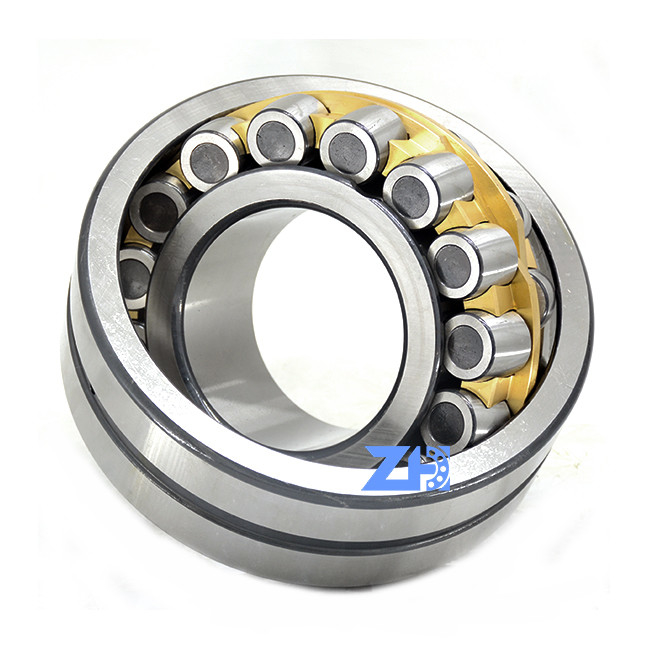

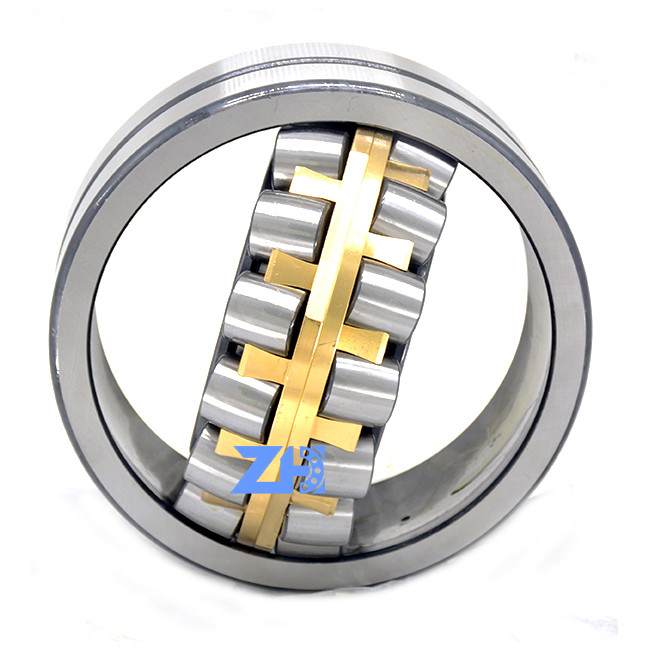

Long service time 22326MA 22326ECK 22326JA 22326EA 22326CA 22326J2Q 130*280*93mm P0 P5 P 4 P3 Quality ank CHROME STEEL Spherical Roller Bearing
Product introduction(Good Bearing nice price)
22326MA The inner and outer rings of tapered roller bearings have tapered raceways, and there are single-row tapered roller bearings, double-row tapered roller bearings, four-row tapered roller bearings, etc. Tapered roller bearings have the advantages of compact structure, strong bearing capacity, inner and outer rings can be separated, etc., which are widely used in automobile transmission, rolling mill, mining, metallurgy, plastic machinery and other industries
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
280 mm
|
Outside diameter |
| B |
93 mm
|
Width |
| d2 |
≈164 mm
|
Shoulder diameter of inner ring |
| D1 |
≈233 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
1 176 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 320 kN
|
| Fatigue load limit | Pu |
114 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Da |
max.263 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.3 mm
|
Radius of fillet |
| Bore diameter | 130 mm |
| Outside diameter | 280 mm |
| Width | 93 mm |
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Tapered 1:12 |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes |
| Da |
max.263 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.3 mm
|
Radius of fillet |
| 30312D | 32205 | NUP2209 | NUP307 | T7FC065 | NUP2211 | NUP2209 | 6008 | KMF125 |
| NUP307 | T7FC055=300 | SG02 | HMK3525 | NUP207 | NUP308 | NUP2209 | NUP307 | NUP309180 |
| NUP205E | NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | |
| M5X130 | 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| NUP306 | 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| NUP208E | NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D156 | 30312D155 | NUP2207140 | |
| NUP2212 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206130 | |
| NUP206 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309180 | |
| NUP308=140 | JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| NUP309 | JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| NUP206 | JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| 6305M | M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP310 | |
| NUP207 | M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP307 | |
| 30309D | KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP2208 | |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | MAG150 | |
| NUP307 | MSG-27P | NUP306 | T7FC055 | 11749/11710 | T7FC055 | AP5S53 | TM09 |
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
