23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing
23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing

Large Image :  23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

Product Details:

Place of Origin: China
Brand Name: ZH
Certification: IS09001
Model Number: 23220CC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Your requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 Set/Sets per Month
Detailed Product Description
Price: Factory Price Product Name: Monitor
Model: 23220CC MOQ: 1
Supply: 30000 Set/Sets Per Month Quality: Good Quality
Quality Ank: P0、P2、P4、p5、p6 SIZE: 100*180*60.3
Weight: 6.6Kg
High Light:

kobelco spare parts

,

kobelco excavator spare parts

23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

Product introduction

Spherical Roller Bearing 100mm x 180mm x 60.3mm 23220 CC/W33

The SKF Spherical Roller Bearing is designed to accommodate misalignment between the shaft and housing.(Good choice at factory price)

They have high load carrying capacities and are self-aligning, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearing can be used in a modular syst em,


including housings, sleeves and nuts. SKF Spherical Roller Bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature.

The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. This bearing is self-aligning and can handle heavy loads in both directions. Additionally,

it accommodates misalignment with virtually no increase in friction or temperature. For increased wear resistance, SKF Spherical Roller Bearing features hardened raceways, cages,

rollers as well as seals and shields. These bearings are available in a modular system for different applications

23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 0
23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 1


Type of Product
Spherical Roller Bearing
Inside Diameter (d) (mm)
100 mm
Outside Diameter D (mm)
180 mm
Material
High Carbon Chromium Steel
Weight (Kg)
6.6 Kg
Model No
23220 CC/W33
Basic Dynamic Load Rating
498 kN
Basic Static Load Rating
600 kN
Fatigue Load Limit
63 kN
Limiting speed
3400 r/min
Reference Speed
2400 r/min
Width
60.3 mm
















d
100 mm
Bore diameter
D
180 mm
Outside diameter
B
60.3 mm
Width
d2
114 mm
Shoulder diameter of inner ring
D1
159 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
min.2.1 mm
Chamfer dimension



Abutment dimensions



da
min.112 mm
Diameter of shaft abutment
da
max.114 mm
Diameter of shaft abutment
Da
max.168 mm
Diameter of housing abutment
ra
max.mm
Radius of fillet



Calculation data



Basic dynamic load rating C
499 kN
Basic static load rating C0
600 kN
Fatigue load limit Pu
63 kN
Limiting speed
1 700 r/min
Limiting value e
0.3
Calculation factor Y1
2.3
Calculation factor Y2
3.4
Calculation factor Y0
2.2
  •

Dimensions

d
100 mm
Bore diameter
D
180 mm
Outside diameter
B
60.3 mm
Width
d2
114 mm
Shoulder diameter of inner ring
D1
159 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
min.2.1 mm
Chamfer dimension
  • Choose 23220CC, the customer also went to choose

A10VD17 A8V055 A8VO200 HPV90 SG02 K3V63DT K3V112DT HPK055K
A10VD43 A8V86 A8V107 HPV95 SG04 K3V63BDT K3V112BDT HPV050
A10VS063 A8V080 K5V140 HPV95N SG08 K3VL80DTP K3V63DT HPV091DW
A10VS071 A8V107 A8V55 HPV160 SG12 K5V80DTP SBS120 HPV091EW
A8V0107 A8V115 A10FD28 HPV132 SG20 K3V112DT SBS80 HPV091DS
K3SP36C A8V0107 A10VD43 HPV140 SG23 K3V180DT AP2D25 HPV091ES
HPV116 A8V0140 k5v200 HPV165 M2X120 M5X130 K5V140DTP AP2D36 HPV091/102
HPV145 A8V0160 AP12 K5V200DTH M2X150 HPV35 M2X146 HPV0102
HPV116/145 A8V0200 AP2D25 K5V200DPH M5X180 HPV75 PVK-2B-505 HPV0118
NV111 A10VO28 AP2D18 HPV35 M2X63 HPV95 AP2D36

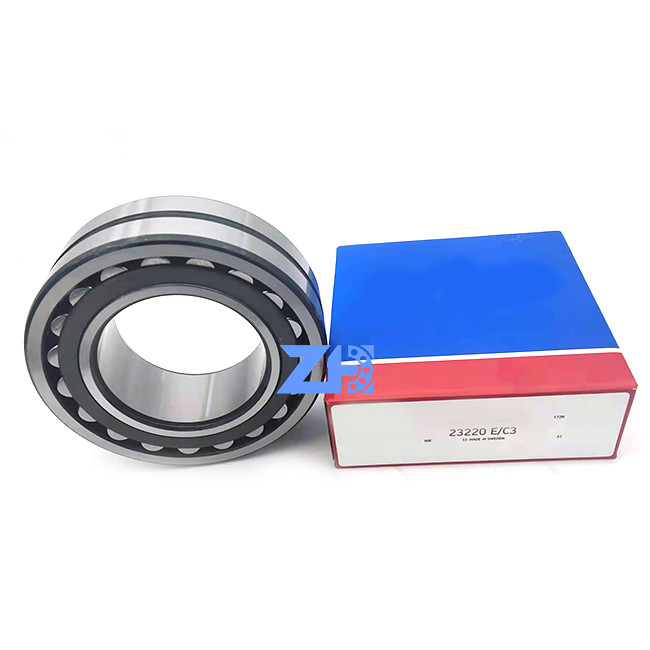

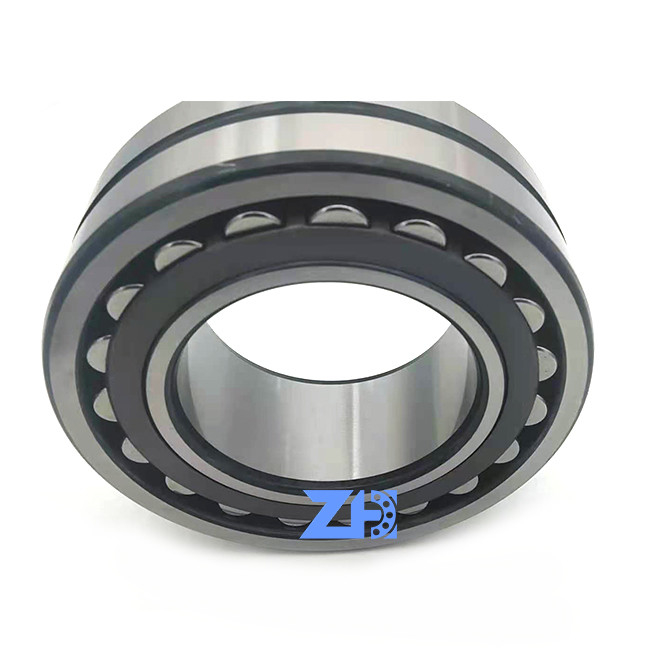

Picture show
23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 223220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 323220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 4

23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 5
23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing 6
