Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
NJ205ET2X
NJ205 NJ205ET2X 205ET2X P0 P5 P6 P4 P3 P2 P1 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introdution

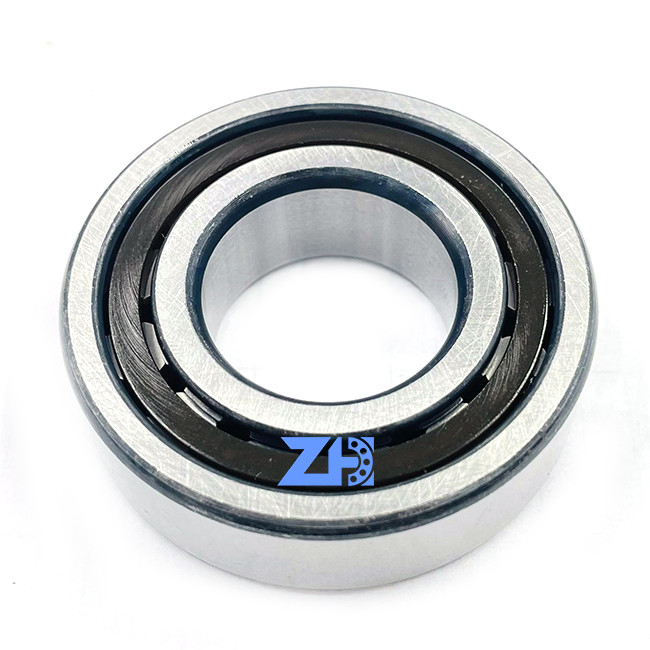

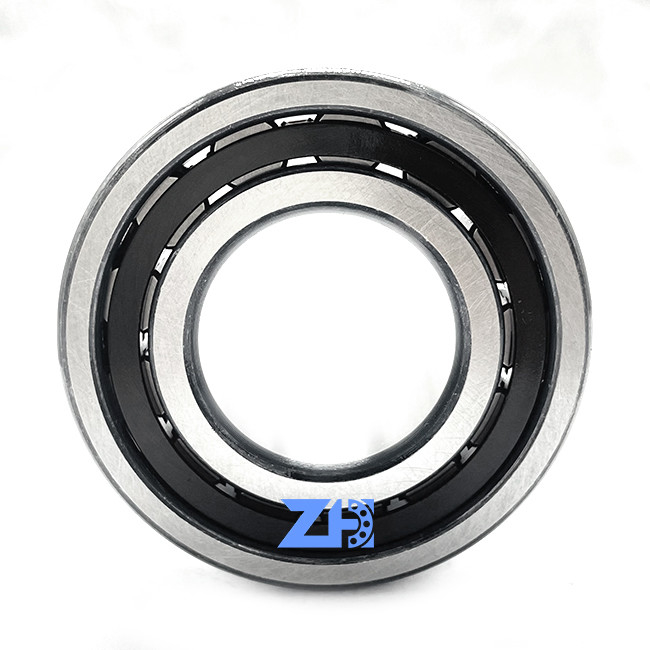

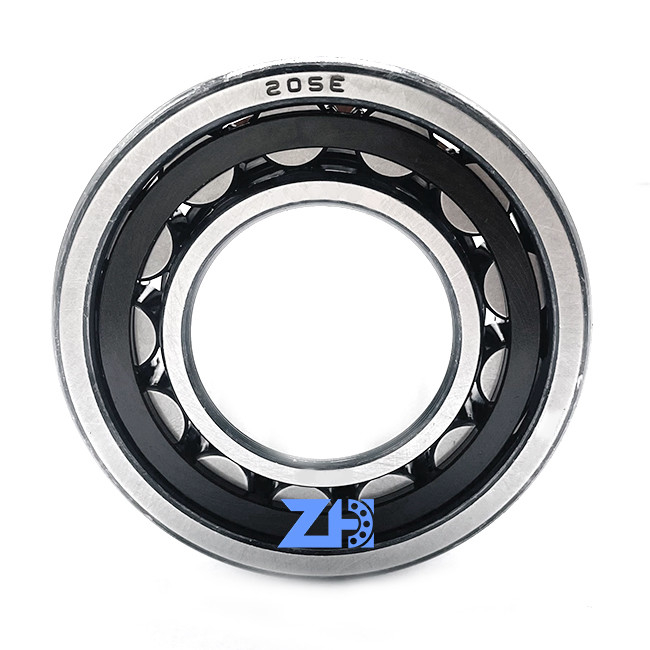

NJ205ET2X Cylindrical Roller Bearing is a type of linear bearing that uses one or more matched rows of cylindrical rollers to support combined loads, while allowing for rotational and axial movement. This bearing features a central shaft, inner ring with an integral flange, two integral flanges, and an outer ring that's fully removable. It can accommodate heavy radial loads at high speeds, has been pre-lubricated with light oil, ensuring it's ready for use upon arrival.
| PRODUCT DEFINITION | |
|---|---|
| Brand | ZH |
| d - Internal diameter | 25 mm |
| D - External diameter | 52 mm |
| B - Bearing/Inner ring width | 15 mm |
| E - Upper roller diameter | 46,5 mm |
| F - Under roller diameter | 31,5 mm |
| d1 - IR flange outer diameter | 34,5 mm |
| rs - Min fillet radius | 1 mm |
| r1s - Min fillet radius | 0,6 mm |
| Radial clearance class | CN |
| Mass | 0,135 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 29,3 kN |
| C0 - Static load | 27,7 kN |
| Cu - Fatigue limit load | 3,4 kN |
| Nlim - Oil lubrication limit speed | 15000 tr/min |
| Nlim - Grease lubrication limit speed | 13000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| ABUTMENT | |
|---|---|
| da min - Min shoulder diameter IR | 30 mm |
| da max - Small face shoulder max diameter | 31 mm |
| dc min - Min inner ring GO diameter | 37 mm |
| Da max - Max shoulder diameter OR | 47 mm |
| ra max - Max fillet radius | 1 mm |
Bearings sell well
| 208ZC | 2304ZC | 32013ZC | 304020ZC | 3020ZC | 6932ZC |
| 2211ZC | 345233ZC | 208ZC | 32207ZC | 2305ZC | 5904ZC |
| 308ZC | 553830ZC | 209ZC | 32211ZC | 243320ZC | 2212ZC |
| 309ZC | 5908ZC | 2206ZC | 32212ZC | 2820ZC | 2209ZC |
| 2208ZC | 206ZC | 055ZC | 354520ZC | 30205ZC | 6014ZC |
| 503807ZC | 207ZC | 060ZC | 30211ZC | 502515ZC | 6206ZC |
| 2207ZC | 30314ZC | 065ZC | 30212ZC | 503303ZC | 6208ZC |
| 6008ZC | 6906ZC | 070ZC | 30213ZC | 503806ZC | 6213ZC |
