| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | NJ304ET2XU |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | Your requirement |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pieces /week |
| Product Name: | Cylindrical Roller Bearing | Model Number: | NJ304ET2XU |
|---|---|---|---|
| MOQ: | 1 | Supply: | 30000 Set/Sets Per Month |
| Material: | CHROME STEEL | Quality: | Good |
| Quality Ank: | P0、P2、P4、p5、p6 | Size: | 20*52*15mm |
| High Light: | kobelco excavator parts,kobelco spare parts |
||
NJ304 NJ304ET2XU NJ304ET2XUP2RS P4 P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introduction

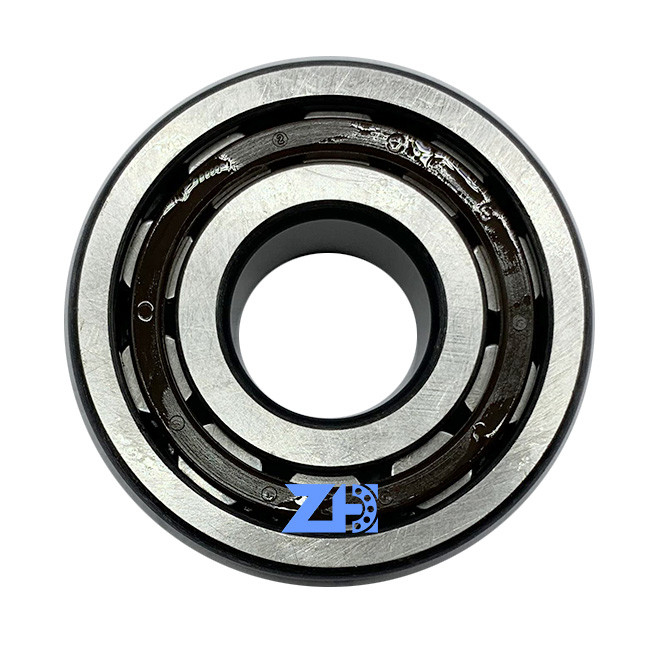

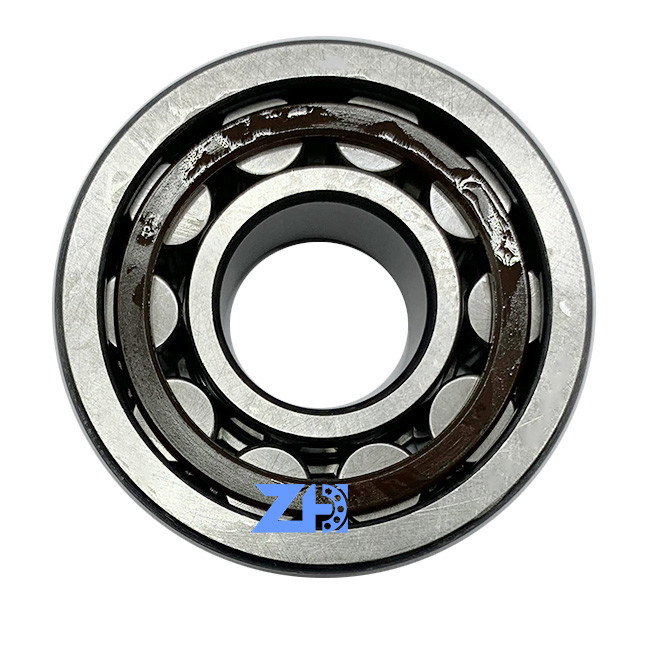

NJ304ET2XU roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.(Factory prices, welcome to buy)
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
52 mm
|
Outside diameter |
| B |
15 mm
|
Width |
| d1 |
≈31.2 mm
|
Shoulder diameter of inner ring |
| D1 |
≈41.85 mm
|
Shoulder diameter of outer ring |
| F |
27.5 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.0.6 mm
|
Chamfer dimension |
| s |
max.0.9 mm
|
Permissible axial displacement |
| da |
min.26.1 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max.26.2 mm
|
Diameter of spacer sleeve |
| db |
min.33 mm
|
Diameter of shaft abutment |
| Da |
max.45.4 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
35.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
26 kN
|
| Fatigue load limit | Pu |
3.25 kN
|
| Reference speed |
15 000 r/min
|
|
| Limiting speed |
18 000 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
