Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
NA5908

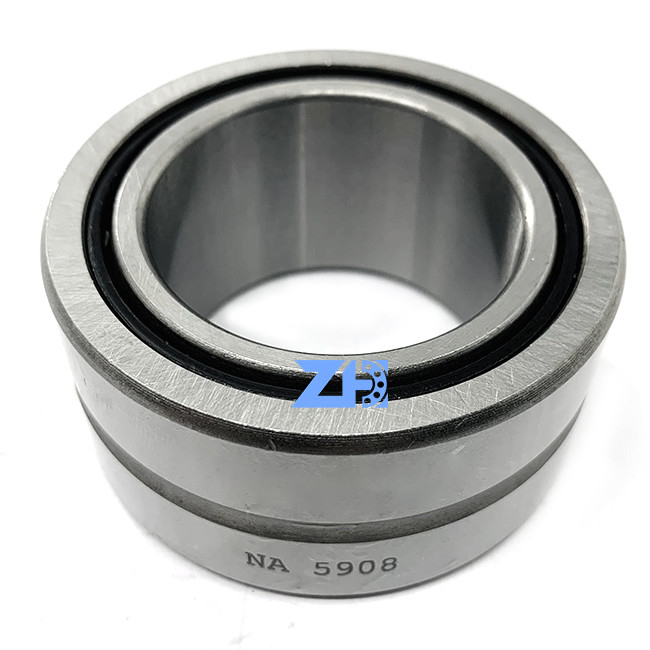

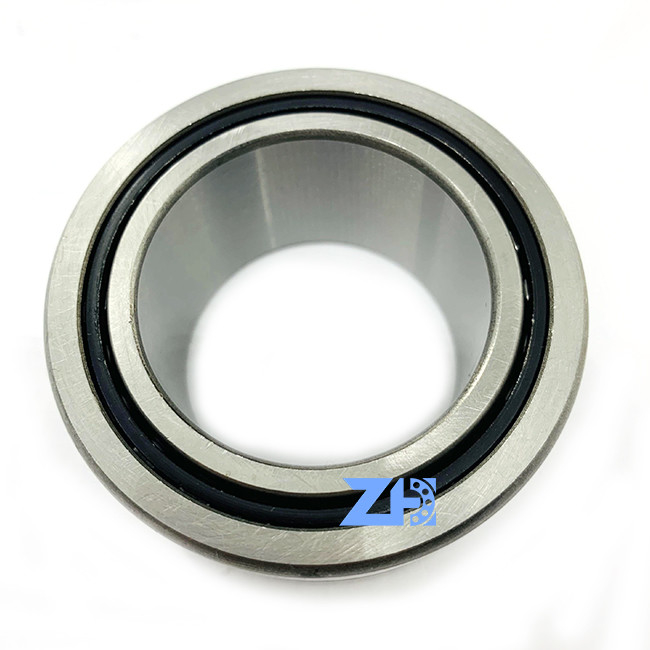

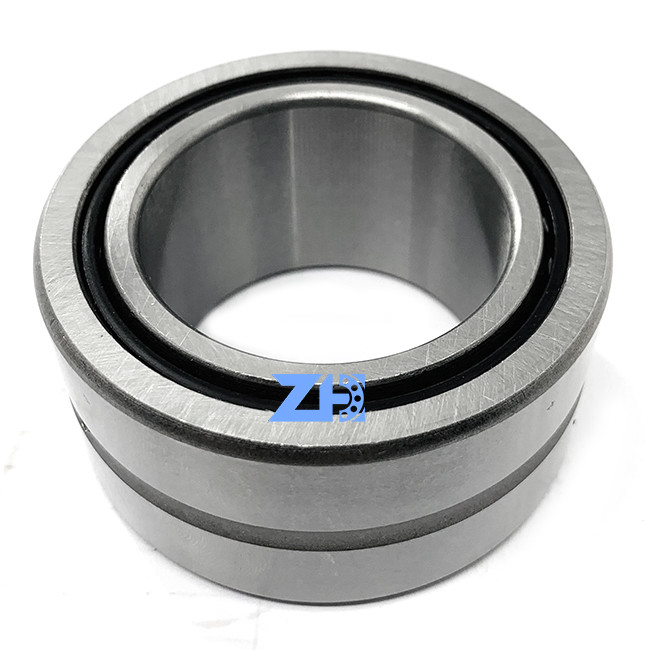

5908CA NA5908 5908CAC 5908ECA 5908W 5908ECAC E5908 5908RS P0 P5 P6 P4 P3 P2 P1 Quality LEVEL CHROME STEEL Taper Roller Bearing
(Your search is coming to an end as you come across factories that have been selling bearings at factory prices for over 19 years)
Product introduction
The needle bearing is equipped with a thin and long roller (roller diameter D≤5mm, L/D≥2.5, L is the length of the roller), so the radial structure is compact, its inner diameter size and load capacity are the same as other types of bearings, and the outer diameter is the smallest, especially suitable for radial installation size limited support structure.
PRODUCT DEFINITION | |
---|---|
Brand | ZH |
d - Internal diameter | 40 mm |
D - External diameter | 62 mm |
C - Width of bearing, drawn cup or outer ring | 30 mm |
F - Under roller diameter | 48 mm |
rs - Min fillet radius | 0,6 mm |
s - Max axial offset | 1 mm |
Lubrication hole on outer ring | Yes |
k - Hole diameter | 2,5 mm |
Lubrication hole on inner ring | No |
Radial clearance class | CN |
Precision class | P0 |
Mass | 0,348 kg |
PRODUCT PERFORMANCE | |
---|---|
Cr - Dynamic load rating | 53 kN |
C0r - Static load rating | 92,5 kN |
Nlim - Grease lubrication limit speed | 5500 tr/min |
Nlim - Oil lubrication limit speed | 8500 tr/min |
Tmin - Min operating temperature | -20 °C |
Tmax - Max operating temperature | 120 °C |
ABUTMENT | |
---|---|
da min - Min shoulder diameter IR | 44 mm |
Da max - Max shoulder diameter OR | 58 mm |
ras max - Max shaft & housing fillet radius | 0,6 mm |
