Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | NJ208ET2X |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | 1USD/pcs |
| Packaging Details: | Your requirement |
| Delivery Time: | 2-5 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30000 pieces/week |
| Product Name: | Cylinder ROLLER BEARING | Model Number: | NJ208ET2X |
|---|---|---|---|
| MOQ: | 1 | Supply: | 30000 Set/Sets Per Month |
| Material: | CHROME STEEL | Price: | Factory Price |
| Weight: | 0.40kg | SIZE: | 40*80*18mm |
| High Light: | kobelco excavator parts,kobelco spare parts |
||
NJ208ET2X 208ET2X NJ208 NJ208ET2XRS P2 P3 P0 P1 P5 P6 P4 Quality LEVEL CHROME STEEL cylinder ROLLER BEARING
Product introduction(Sell goods at factory prices)

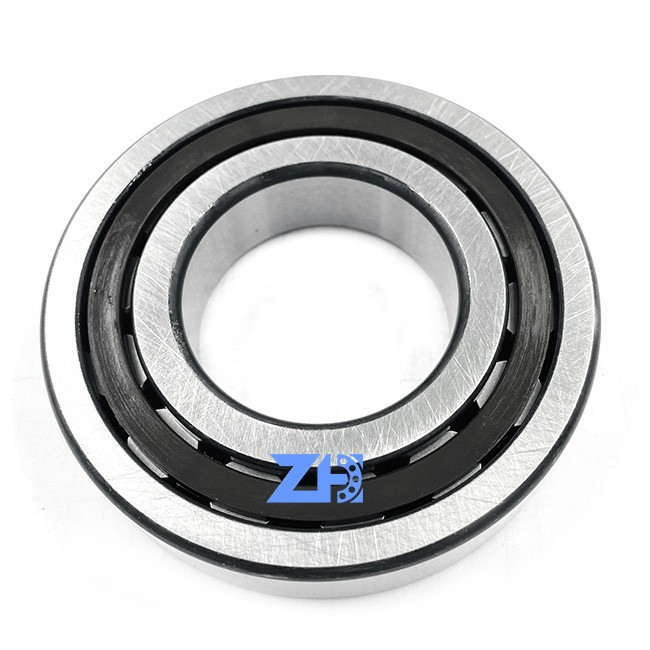

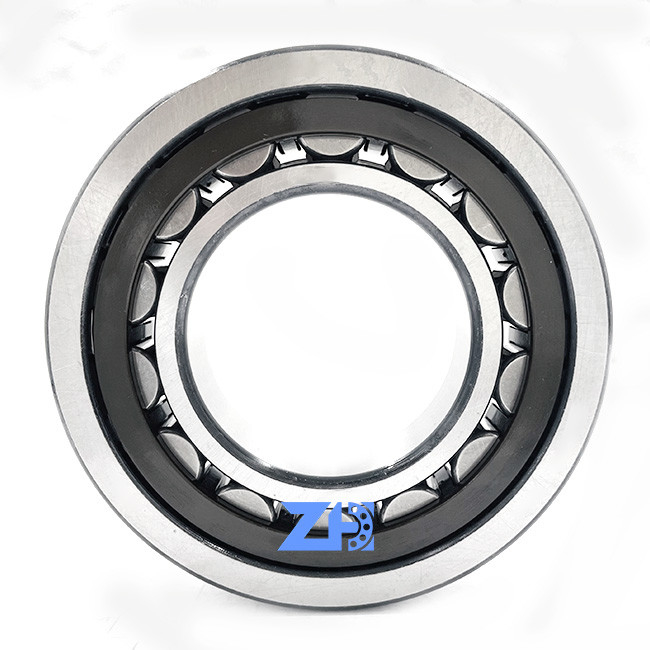

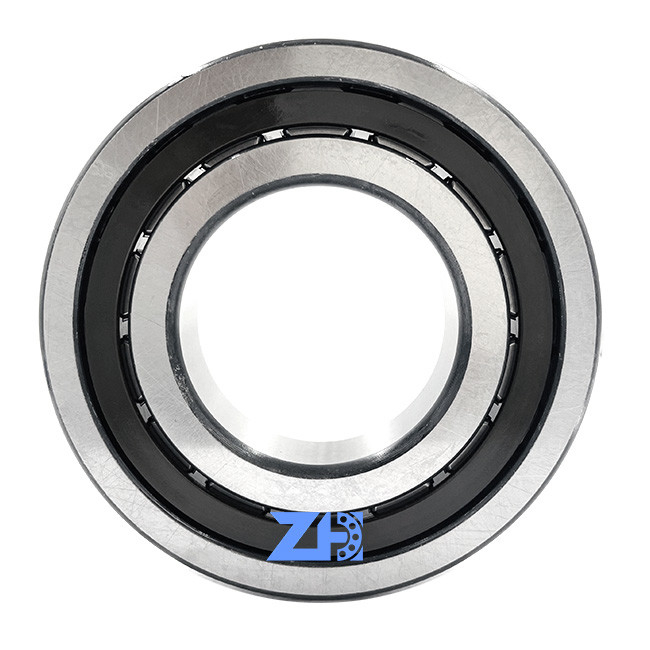

NJ 208ET2X Cylindrical Roller Bearing is a type of linear bearing that uses one or more matched rows of cylindrical rollers to support combined loads,
while allowing for rotational and axial movement. This bearing features a central shaft, inner ring with an integral flange, two integral flanges, and an outer ring that's fully removable.
It can accommodate heavy radial loads at high speeds, has been pre-lubricated with light oil, ensuring it's ready for use upon arrival.
Roller Bearings are essentially wheel bearings with a cage. They have an inner ring, two integral flanges,
| Bore diameter | 40 mm |
| Outside diameter | 80 mm |
| Width | 18 mm |
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
18 mm
|
Width |
| d1 |
≈54 mm
|
Shoulder diameter of inner ring |
| D1 |
≈67.4 mm
|
Shoulder diameter of outer ring |
| F |
49.5 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.1.1 mm
|
Chamfer dimension |
| s |
max.1.4 mm
|
Permissible axial displacement |
| da |
min.47 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max.48 mm
|
Diameter of spacer sleeve |
| db |
min.56 mm
|
Diameter of shaft abutment |
| Da |
max.72.8 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
62 kN
|
|---|---|---|
| Basic static load rating | C0 |
53 kN
|
| Fatigue load limit | Pu |
6.7 kN
|
| Reference speed |
9 500 r/min
|
|
| Limiting speed |
11 000 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
Recommend the hot products sold recently
| SG02 | M5X180 | NUP207=120 | GM38VB | 30312D | 30312D | NUP308=140 | JMF250 | NUP309 |
| SG15 | 32205 | NUP2209=160 | MAG150 | 30312D | 6008 | T7FC065 | HMGC32 | NUP2211 |
| SG20 | T7FC060 | NUP2207=140 | 30312D | NUP310 | TM09 | NUP309 | HMGF35 | M2X63 |
| NUP2209 | NUP207 | NUP2206=130 | NUP2209 | NUP308 | GM18VL | T7FC055 | HMGF36 | M2X96 |
| NUP2209 | 6213 | NUP309=180 | SG08 | NUP306 | 30210 | T7FC055 | HMGC48 | MCB172 |
| NUP2212 | NUP308 | NUP309=180 | 4T-30307 | NUP307 | 30210 | 32207 | DNB50/60 | 30309D |
| NUP2212 | NUP309 | NUP310 | NUP306 | NUP205E | 30311D | M2X170 | JMV-44/22 | KMF125 |
| GM17VA | MAG85 | NUP307 | NUP2211 | M2X55 | SG04 | M2X210 | JMV-53/31 | M2X120 |
| NUP309 | MAG120 | NUP307 | NUP308 | 30309D=110 | 30309D | HMGF57 | NUP207 | M2X146 |
| NUP2212 | MAG150 | NUP2208 | KMF90-PC200-6 | NUP207/NUP306 | 6305 | 6305M | HMK3525+IR | 30312D=155 |
