Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2 CHROME STEEL Material 25*52*20.6mm

China ZhongHong bearing Co., LTD. certification
China ZhongHong bearing Co., LTD. certification
32222 TRB ( tapered roller bearing ) Excellent !

—— Mário Antonaccio (Brazil)

Professional team, attentive service , delivery so fast , and we will continue to cooperation with ZH bearing company!!!

—— Sam Moi (Malaysia)

Parcel arrived, good job!packing it is so great,surface looks very nice,I think quality not bad.

—— Raj (Canada)

I'm Online Chat Now

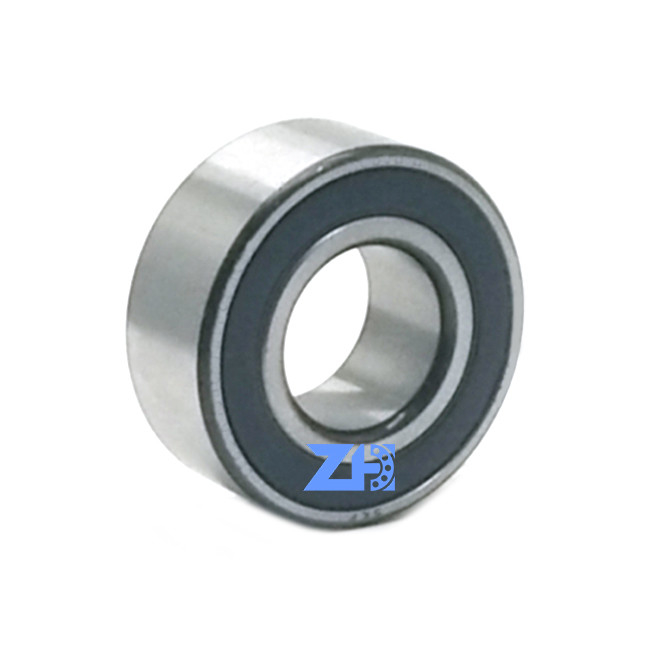

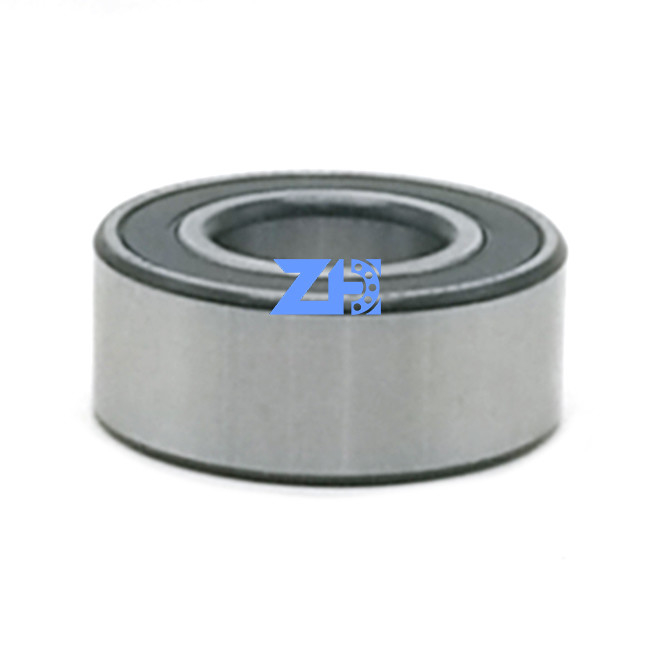

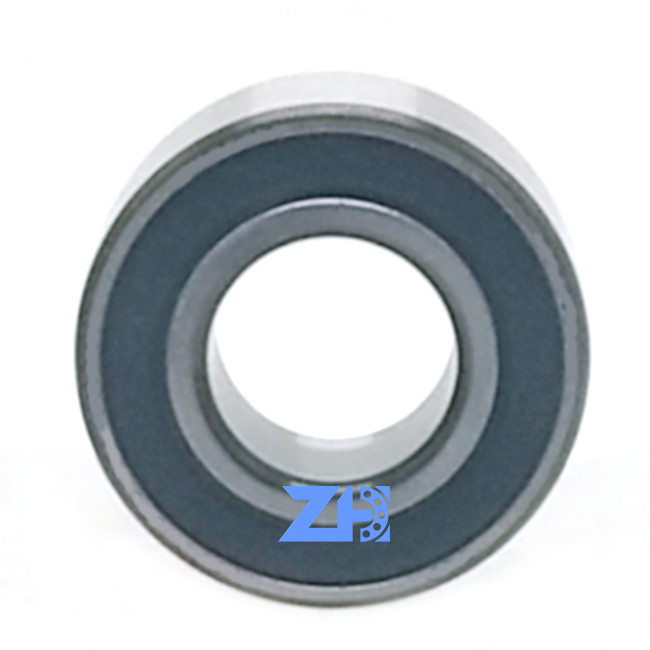

Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2 CHROME STEEL Material 25*52*20.6mm

Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2  CHROME STEEL Material  25*52*20.6mm
Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2  CHROME STEEL Material  25*52*20.6mm

Large Image :  Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2 CHROME STEEL Material 25*52*20.6mm

Product Details:

Place of Origin: China
Brand Name: ZH
Certification: IS09001
Model Number: 3205-2rs

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: interview
Packaging Details: Your requirement
Delivery Time: 2-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Set/Sets per Month
Detailed Product Description
Product Name: Angular Contact Ball Bearings Model: 3205-2rs
Material: CHROME STEEL Price: Factory Price
MOQ: 1 Quality: High Quality
Packaging: Your Requirement Size: 25*52*20.6mm
High Light:

excavator components

,

mini excavator parts

Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2 CHROME STEEL Material 25*52*20.6mm


Production introduction
3205-2RS Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide or sheet steel cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent.



  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments

Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2  CHROME STEEL Material  25*52*20.6mm 0
Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2  CHROME STEEL Material  25*52*20.6mm 1

Dimensions

d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
20.6 mm
Width
d1
34.44 mm
Shoulder diameter inner ring
d2
32.7 mm
Recess diameter inner ring shoulder
D1
44.55 mm
Shoulder diameter outer ring
D2
45.9 mm
Recess diameter outer ring shoulder
r1,2
min.1 mm
Chamfer dimension inner ring
a
30 mm
Distance pressure point(s)

Angular contact ball Bearings 3205-2RS 3205ZZ 3205C2  CHROME STEEL Material  25*52*20.6mm 2


Abutment dimensions

da
min.31 mm
Abutment diameter shaft
Da
max.46 mm
Abutment diameter housing
ra
max.1 mm
Fillet radius



Calculation data



Basic dynamic load rating C
22 kN
Basic static load rating C0
15.3 kN
Fatigue load limit Pu
0.64 kN
Reference speed
12 000 r/min
Limiting speed
12 000 r/min
Calculation factor kr
0.06
Limiting value e
0.8
Calculation factor X
0.63
Calculation factor Y0
0.66
Calculation factor Y1
0.78
Calculation factor Y2
1.24



Bearing Number
d
D
B
rsmin
Weight(KG)
3200
10
30
14.3
0.6
0.049
3201
12
32
15.9
0.6
0.057
3202
15
35
15.9
0.6
0.064
3302
15
42
19
1
0.132
3203
17
40
17.5
0.6
0.096
3303
17
47
22.2
1
0.181
3204
20
47
20.6
1
0.153
3304
20
52
25.4
1.1
0.217
3205
25
52
20.6
1
0.175
3305
25
62
25.4
1.1
0.362
3206
30
62
23.8
1
0.286
3306
30
72
30.2
1.1
0.553
3207
35
72
27
1.1
0.436
3307
35
80
34.9
1.5
0.766
3208
40
80
30.2
1.1
0.59
3308
40
90
36.5
1.5
1.01
3209
45
85
30.2
1.1
0.64
3309
45
100
39.7
1.5
1.34
3210
50
90
30.2
1.1
0.689
3310
50
110
44.4
2
1.81
3211
55
100
33.3
1.5
0.986
3311
55
120
49.2
2
2.32
3212
60
110
36.5
1.5
1.27
3312
60
130
54
2.1
3.05
3213
65
120
38.1
1.5
1.57
3313
65
140
58.7
2.1
3.96
3214
70
125
39.7
1.5
1.8
3314
70
150
63.5
2.1
4.74
3215
75
130
41.3
1.5
1.9
3315
75
160
68.3
2.1
5.65
3216
80
140
44.4
2
2.39
3217
85
150
49.2
2
3.06
3218
90
160
52.4
2
3.73
3219
95
170
55.6
2.1
4.86
3220
100
180
60.3
2.1
5.94



3205-2RS Collection



M2X146 30312D=155 T7FC055 DNB50/60 NUP2207 30309D=110
NUP309 M2X120 MAG120 NUP308 NUP309=180 NUP207/NUP306
NUP2212 32207 MAG150 30314D=250 HMGF36 30309D
M5X130 NUP205E NUP309 NUP309 NUP206=100 NUP2211
M5X180 NUP207=120 NUP308 T7FC055 NUP2208
32205 NUP2209=160 GM35VL 30312D NUP2211
T7FC060 NUP2207=140 NUP2206=130 30314D HMGC48
M2X150 30312D 6008 30312D NUP309
M2X170 NUP2209 NUP307 30309D 30312D
M2X210 JMF23 30210 30210 GM35VA
HMGF57 JMF151 30311D KMF125-PC200-8 30312D=155
NUP306 11749/11710 SG04 KMF160-PC360-7 M2X96
NUP307 NUP309=180 SG025 MSG-27P MCB172
KMF41-PC60 NUP309 HMGC32 NUP207 NUP206E
NUP308 NUP206 HMGF35 HMS072 M2X55
JMF29 6305M 6305 AP5S67 M2X63
NUP307 4T-30307 NUP2211=250 NUP308=140 NUP2208=210
30312D SG08 NUP207 T7FC055=300 NUP307=110
NIP2310 GM17VA NUP307 NUP309 JMF195
NUP208E JMV-44/22 NUP307 JMF250 NUP2212
NUP308=14 KMF125-PC200-7 NUP309=180 JMV-53/31 15578
T7FC065 NUP2310 NUP310 MAG85 NUP306
