Place of Origin: | ShanDong, China (Mainland) |
Brand Name: | CN&ZH |
Certification: | ISO 9001:2000 |
Model Number: | 24052 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD =-1-10 piece |
Packaging Details: | Conventional Package/As your request |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces days |
Bore Size: | 260 Mm | Outside Diameter: | 400 Mm |
---|---|---|---|
High: | 140 Mm | Feature: | High Quality/Long Life |
Material: | Chrome Steel/GCR 15 | Precision Rating: | P0 P6 P5 P4 P2 |
High Light: | roller cage bearing,split roller bearing |
Product Description

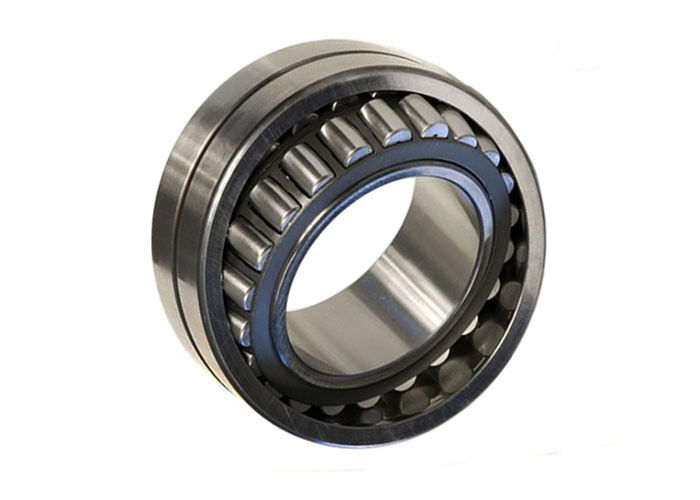

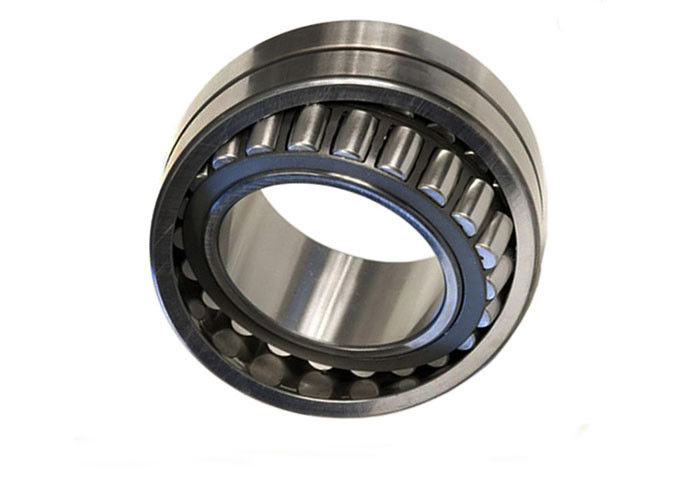

Spherical roller bearing with two rollers, mainly bear radial load, but also can withstand axial load in either direction. There is a high radial load capacity, especially suitable for heavy load or vibration load, but can not bear pure axial load. The outer race of the bearing ring is spherical, so its aligning performance is good, can compensate the coaxial error.
Two rows of symmetrical spherical roller, the outer ring has a common spherical raceway and the inner ring two and a bearing axis inclined at an angle to the raceway, with good aligning performance, when the axial force bending or installed in a coaxial bearing can still be used normally, adjustable mind varies with the size of bearing series, generally allowed by aligning angle is 1-2.5 degrees, this type of bearing load capacity is larger, not only can bear radial load bearing can bear bidirectional axial load, with good impact resistance, generally spherical roller bearings allow the working speed is low.
Specification
New | Old | d | D | B | Cr | Cor | Grease | Oil | wt | da(min) | Da(max) | ra(max) |
24020CA | 4053120 H | 100 | 150 | 50 | 242 | 425 | 1500 | 2000 | 3.15 | 109 | 141 | 1.5 |
23120CA | 3053720 H | 100 | 165 | 52 | 326 | 490 | 1700 | 2200 | 4.39 | 111 | 154 | 2 |
23120MB | 100 | 165 | 52 | 326 | 490 | 1700 | 2200 | 4.39 | 111 | 154 | 2 | |
23120M | 100 | 165 | 52 | 379 | 575 | 1700 | 2200 | 4.37 | 111 | 154 | 2 | |
22220CA | 53520 H | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 |
22220C | 53520 | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 |
22220MB | 100 | 180 | 46 | 317 | 423 | 2200 | 3000 | 5.1 | 112 | 168 | 2.1 | |
22220M | 100 | 180 | 46 | 373 | 484 | 2200 | 3000 | 5.04 | 112 | 168 | 2.1 | |
23220CA | 3053220 H | 100 | 180 | 60.3 | 405 | 589 | 1500 | 1900 | 6.81 | 112 | 168 | 2.1 |
23220MB | 100 | 180 | 60.3 | 405 | 589 | 1500 | 1900 | 6.81 | 112 | 168 | 2.1 | |
22320CA | 53620 H | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 |
22320C | 53620 | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 |
22320MB | 100 | 215 | 73 | 613 | 799 | 1600 | 2200 | 13.3 | 114 | 201 | 3 | |
22320M | 100 | 215 | 73 | 653 | 824 | 1600 | 2200 | 13.2 | 114 | 201 | 3 | |
23022CA | 3053122 H | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 |
23022C | 3053122 | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 |
23022MB | 110 | 170 | 45 | 304 | 489 | 1900 | 2500 | 3.79 | 120 | 160 | 2 | |
23022M | 110 | 170 | 45 | 329 | 505 | 1900 | 2500 | 3.77 | 120 | 160 | 2 | |
24022CA | 4053122 H | 110 | 170 | 60 | 294 | 506 | 1300 | 1800 | 5.04 | 120 | 160 | 2 |
23122CA | 3053722 H | 110 | 180 | 56 | 382 | 596 | 1500 | 2000 | 5.72 | 121 | 169 | 2 |
23122MB | 110 | 180 | 56 | 382 | 596 | 1500 | 2000 | 5.72 | 121 | 169 | 2 | |
23122M | 110 | 180 | 56 | 433 | 654 | 1500 | 2000 | 5.7 | 121 | 169 | 2 | |
24122CA | 4053722 H | 110 | 180 | 69 | 462 | 758 | 1200 | 1500 | 7.15 | 121 | 169 | 2 |
22222CA | 53522 H | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 |
22222C | 53522 | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 |
22222MB | 110 | 200 | 53 | 414 | 574 | 2000 | 2700 | 7.69 | 123 | 187 | 2.1 | |
22222M | 110 | 200 | 53 | 475 | 627 | 2000 | 2700 | 7.63 | 123 | 187 | 2.1 | |
23222CA | 3053222 H | 110 | 200 | 69.8 | 528 | 786 | 1300 | 1800 | 9.79 | 123 | 187 | 2.1 |
23222MB | 110 | 200 | 69.8 | 528 | 786 | 1300 | 1800 | 9.79 | 123 | 187 | 2.1 | |
23222M | 110 | 200 | 69.8 | 597 | 853 | 1300 | 1800 | 9.76 | 123 | 187 | 2.1 | |
22322CA | 53622 H | 110 | 240 | 80 | 724 | 915 | 1500 | 2000 | 18.3 | 125 | 225 | 3 |
22322MB | 110 | 240 | 80 | 724 | 915 | 1500 | 2000 | 18.3 | 125 | 225 | 3 | |
22322M | 110 | 240 | 80 | 771 | 951 | 1500 | 2000 | 18.1 | 125 | 225 | 3 | |
23024CA | 3053124 H | 120 | 180 | 46 | 317 | 514 | 1700 | 2300 | 4.1 | 131 | 169 | 2 |
23024MB | 120 | 180 | 46 | 317 | 514 | 1700 | 2300 | 4.1 | 131 | 169 | 2 | |
23024M | 120 | 180 | 46 | 353 | 564 | 1700 | 2300 | 4.07 | 131 | 169 | 2 | |
24024CA | 4053124 H | 120 | 180 | 60 | 386 | 673 | 1200 | 1700 | 5.4 | 131 | 169 | 2 |
