Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | ShanDong, China (Mainland) |
| Brand Name: | CN&ZH |
| Certification: | ISO 9001:2000 |
| Model Number: | 24048 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD =-1-10 piece |
| Packaging Details: | Conventional Package/As your request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces days |
| Bore Size: | 240 Mm | Outside Diameter: | 360 Mm |
|---|---|---|---|
| High: | 118 Mm | Feature: | High Quality/Long Life |
| Material: | Chrome Steel/GCR 15 | Precision Rating: | P0 P6 P5 P4 P2 |
| High Light: | roller cage bearing,spherical roller thrust bearing |
||

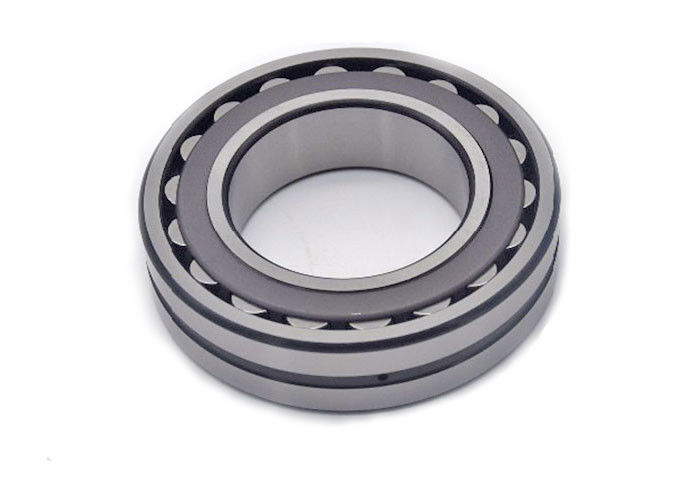

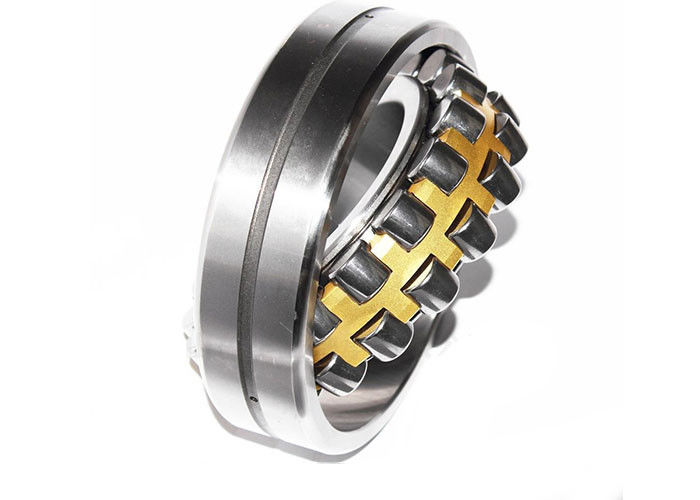

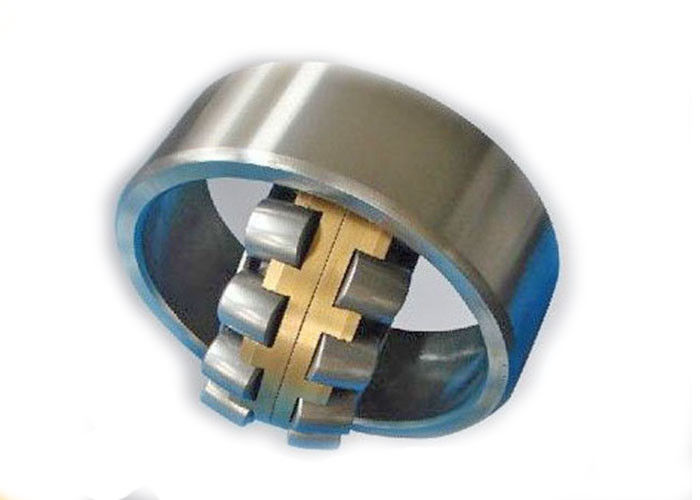

Product Description
high quality Spherical Roller Bearing features
| 1.BAINITE QUENCHING |
| 2.ISO9001:2008 |
| 3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A |
| 4.Hardness :HRC60-HRC64 |
| 5.Closures :Unsealed/Sealed |
| 6.Grade : P6 P5 |
| 7.Clearance :C0, C3, C4 |
| 8.Lubrication :Oil or grease |
| 9.Structure :Spherical Roller Bearing MB, CA, CC, and E series |
| 10.Features: These bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry certain radial load |
| 11.Application :Steel industry, oil industry, cement industry, mining & construction, paper making machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery |
Specification
SPHERICAL ROLLER BEARINGS - 24000 SERIES
| Bearing No. | Dimensions(mm) | Load ratings(KN) | Limiting speeds(r/min) | Mounting dimensions(mm) | Mass(Kg) | ||||||
| d | D | B | Cr | Cor | Grease | Oil | da(min) | Da(max) | ra(max) | ≈ | |
| 24020 | 100 | 150 | 50 | 251 | 448 | 1400 | 1500 | 110 | 140 | 1.5 | 3.2 |
| 24022 | 110 | 170 | 60 | 380 | 600 | 1400 | 2200 | 120 | 170 | 2 | 5.05 |
| 24024 | 120 | 180 | 60 | 380 | 675 | 1600 | 2000 | 130 | 170 | 2 | 5.15 |
| 24026 | 130 | 200 | 69 | 472 | 852 | 1400 | 1800 | 140 | 190 | 2 | 7.45 |
| 24028 | 140 | 210 | 69 | 488 | 895 | 1400 | 1800 | 150 | 200 | 2 | 8.12 |
| 24030 | 150 | 225 | 75 | 570 | 1070 | 1200 | 1600 | 162 | 213 | 2.1 | 11.1 |
| 24032 | 160 | 240 | 80 | 652 | 1230 | 1000 | 1400 | 172 | 228 | 2.1 | 12.1 |
| 24034 | 170 | 260 | 90 | 792 | 1520 | 900 | 1200 | 182 | 248 | 2.1 | 16.45 |
| 24036 | 180 | 280 | 100 | 928 | 1820 | 800 | 1000 | 192 | 268 | 2.1 | 22.1 |
| 24038 | 190 | 290 | 100 | 975 | 1910 | 800 | 1100 | 202 | 278 | 2.1 | 22.95 |
| 24040 | 200 | 310 | 109 | 1120 | 2220 | 670 | 850 | 212 | 298 | 2.1 | 29.4 |
| 24044 | 220 | 340 | 118 | 1370 | 2760 | 750 | 1000 | 234 | 326 | 2.5 | 39.2 |
| 24048 | 240 | 360 | 118 | 1440 | 2930 | 700 | 950 | 254 | 346 | 2.5 | 40.9 |
About Us
ZhongHong Bearing Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller BearingRolling Bearing Co., Ltd was established
in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as
Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings,Wheel Hub Bearings
and Non-Standard Bearings.
