Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
22312CA

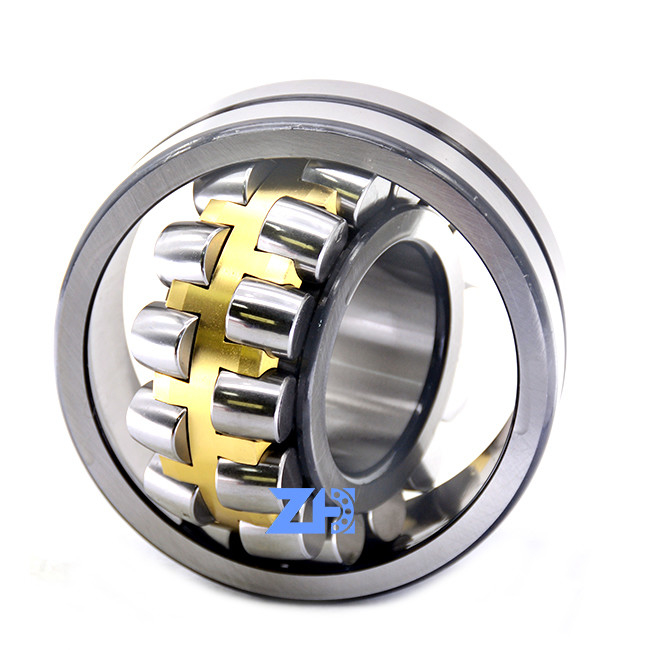

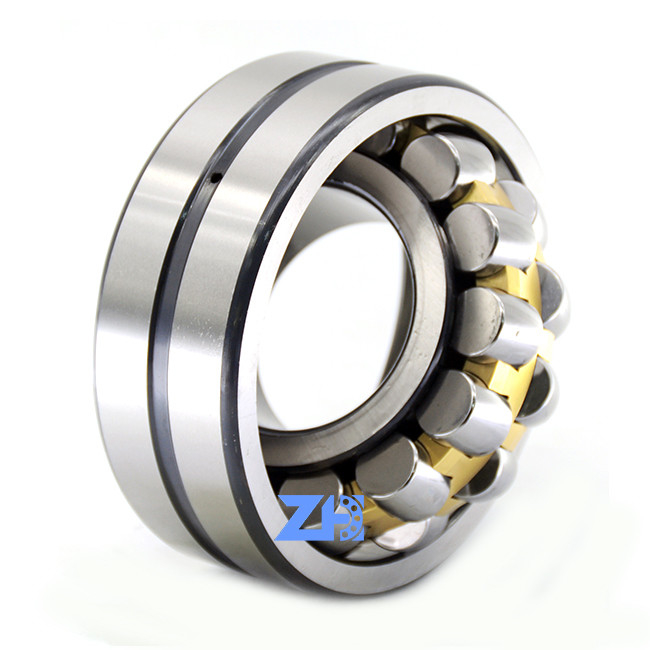

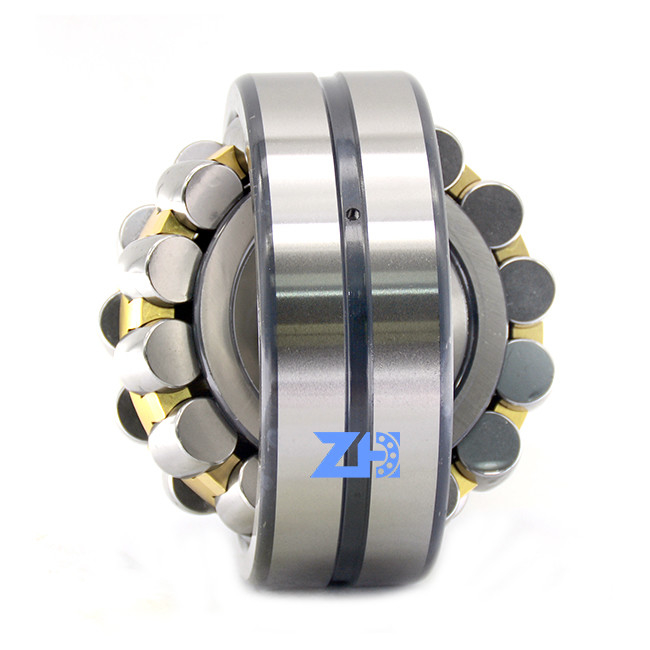

Long service time 22312CA 22312W33 22312ECK 60*130*46mm Spherical Roller Bearing
Product intoduction(Good Bearing come to ZH )
22312CA/C3W33 is a Spherical Roller Bearings manufactured with C3 Internal Clearance, a one-piece brass retainer, a lubrication groove and three lubrication holes in the outer ring. C3 Internal Clearance means that the bearing has room for expansion between the races if needed. These spherical roller bearings have an outer ring with a common spherical raceway, spherical rollers, cages, and in some designs, internal guide rings or center rings. The inner ring has two raceways that are inclined at an angle to the bearing axis, this is to deal with excessively heavy radial and axial loads in situations where shaft deflection or misalignment could occur.
Our 22312CA/C3W33 Spherical Roller Bearings can help you achieve minimal maintenance costs and a long bearing service life thanks to their heavy load carrying capacity and ability to absorb misalignment.
| d |
60 mm
|
Bore diameter |
|---|---|---|
| D |
130 mm
|
Outside diameter |
| B |
46 mm
|
Width |
| d2 |
≈77.9 mm
|
Shoulder diameter of inner ring |
| D1 |
≈110 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| Da |
max.118 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
325 kN
|
|---|---|---|
| Basic static load rating | C0 |
335 kN
|
| Fatigue load limit | Pu |
36 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
|
Model No.
|
Dimension
|
Weight : kg
|
|
22308 CAW33/CCW33
|
40×90×33mm
|
1.05
|
|
22309 CAW33/CCW33
|
45×100×36mm
|
1.56
|
|
22310 CAW33/CCW33
|
50×110×40mm
|
2.1
|
|
22311 CAW33/CCW33
|
55×120×43mm
|
2.72
|
|
22312 CAW33/CCW33
|
60×130×46mm
|
3.25
|
|
22313 CAW33/CCW33
|
65×140×48mm
|
3.97
|
|
22314 CAW33/CCW33
|
70×150×51mm
|
4.48
|
|
22315 CAW33/CCW33
|
75×160×55mm
|
5.55
|
|
22316 CAW33/CCW33
|
80×170×58mm
|
6.79
|
|
22317 CAW33/CCW33
|
85×180×60mm
|
8
|
|
22318 CAW33/CCW33
|
90×190×64mm
|
10.1
|
|
22319 CAW33/CCW33
|
95×200×67mm
|
10.4
|
|
22320 CAW33/CCW33
|
100×215×73mm
|
13.8
|
|
22322 CAW33/CCW33
|
110×240×80mm
|
18.9
|
|
22324 CAW33/CCW33
|
120×260×86mm
|
23
|
|
22326 CAW33/CCW33
|
130×280×93mm
|
27.4
|
|
22328 CAW33/CCW33
|
140×300×102mm
|
34.9
|
|
22330 CAW33/CCW33
|
150×320×108mm
|
42
|
|
22332 CAW33/CCW33
|
160×340×114mm
|
51.8
|
|
22334 CAW33/CCW33
|
170×360×120mm
|
58.5
|
|
22336 CAW33/CCW33
|
180×380×126mm
|
68.5
|
|
22338 CAW33/CCW33
|
190×400×132mm
|
80.8
|
|
22340 CAW33/CCW33
|
200×420×138mm
|
95
|
|
22344 CAW33/CCW33
|
220×460×145mm
|
120
|
|
22348 CAW33/CCW33
|
240×500×155mm
|
153
|
|
22352 CAW33/CCW33
|
260×540×165mm
|
190
|
|
22356 CAW33/CCW33
|
280×580×175mm
|
235
|
|
22360 CAW33/CCW33
|
340×710×212mm
|
265
|
|
22372 CAW33/CCW33
|
360×750×224mm
|
466.1
|
|
22380 CAW33/CCW33
|
400×820×243mm
|
644
|
22322CA Collection
| T7FC065 | M2X150 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | KMF125-PC200-8 |
| NUP207 | M2X170 | 15578 | NUP309 | NUP206=100 | KMF41-PC60-7 | 30309D=110 | T7FC055=300 | KMF160-PC360-7 |
| HMS072 | M2X210 | NUP306 | NUP206 | KMF90-PC200-6 | M2X63 | NUP207/NUP306 | NUP309 | MSG-27P |
| AP5S67 | AP5S53 | NUP307 | 6305M | M5X180 | NUP308=140 | 30309D | 30312D | HMGF57 |
| 11749/11710 | M5X130 | NUP205E | TM09 | 32205 | NUP307 | 30312D | 30314D | NUP2211=250 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | T7FC060 | NUP2208 | NUP2209 | 30312D | NUP207 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | NUP207 | NUP2211 | NUP2209 | 6008 | |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | 6213 | NUP308 | NUP2209 | NUP307 | |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | NUP308 | NUP309 | NUP2212 | 30311D | |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP307 |
Picture show
