Place of Origin:
CHINA
Brand Name:
Z&H
Model Number:
HK1816
HK1816 Needle Roller Bearing Size 18*24*16 mm For Bicycle Long Life

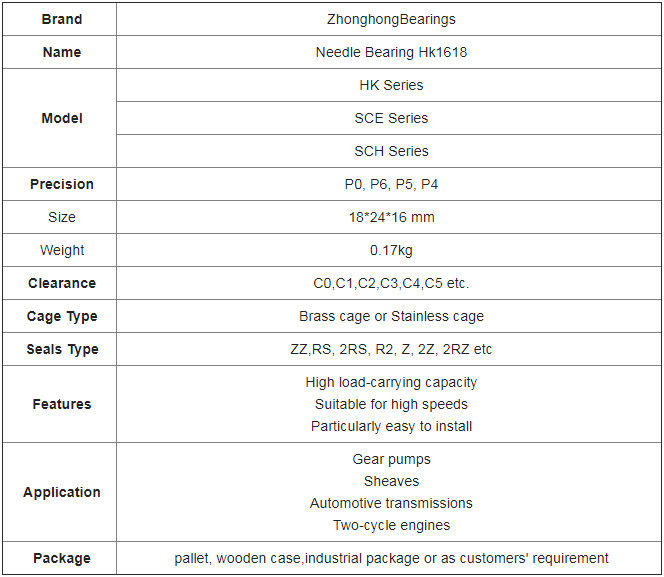

| Brand | ZhonghongBearings | ||
| Name | Needle Bearing Hk1618 | ||
| Model | HK Series | ||
| SCE Series | |||
| SCH Series | |||
| Precision | P0, P6, P5, P4 | ||
| Size | 18*24*16 mm | ||
| Weight | 0.18kg | ||
| Clearance | C0,C1,C2,C3,C4,C5 etc. | ||
| Cage Type | Brass cage or Stainless cage | ||
| Seals Type | ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc | ||
| Features |
High load-carrying capacity
Suitable for high speeds
Particularly easy to install
|
||
| Appliexcavatorion |
Gear pumps
Sheaves
Automotive transmissions
Two-cycle engines
|
||
| Package | pallet, wooden case,industrial package or as customers' requirement | ||

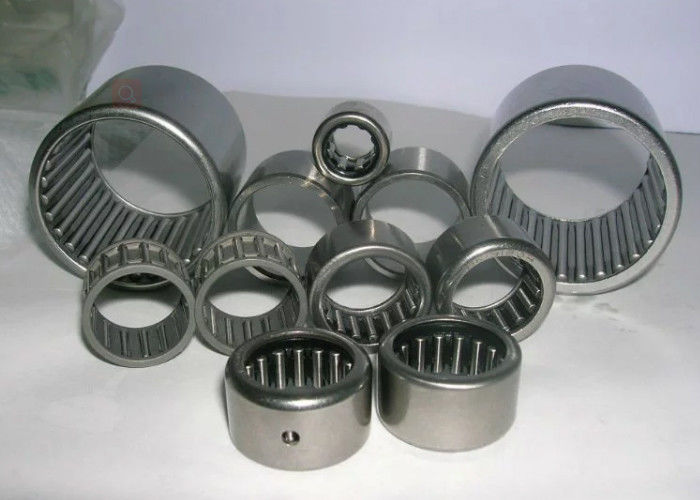

Needle roller bearings appliexcavatorion:
Needle roller bearings are widely used in Auto, motobike, compressor, agricultural machinery and texitle machinery ect.
| Shaft Diameter | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||
| Current | Fw | D | C | Cr Dynamic | Cor Static | Oil | ||
| mm | g | mm | N | rpm | ||||
| 8 | HK0810 RS | 2.9 | 8 | 12 | 10 | 2250 | 2100 | 19000 |
| HK0812 2RS | 3.5 | 8 | 12 | 12 | 2250 | 2100 | 19000 | |
| 9 | HK09*13*12 RS | 4 | 9 | 13 | 12 | 3800 | 4300 | 19000 |
| 10 | HK1012 RS | 4.2 | 10 | 14 | 12 | 4100 | 5000 | 19000 |
| HK1014 RS | 5.2 | 10 | 14 | 14 | 4100 | 5000 | 15000 | |
| 12 | HK1214 RS | 10.7 | 12 | 18 | 14 | 6100 | 7000 | 15000 |
| HK1216 RS | 11.5 | 12 | 18 | 16 | 6100 | 7000 | 12000 | |
| 13 | HK13*19*12 RS | 8.9 | 13 | 19 | 12 | 6800 | 7580 | 12000 |
| 14 | HK1414 RS | 12 | 14 | 20 | 14 | 6100 | 7500 | 13000 |
| HK1416 RS | 14 | 14 | 20 | 16 | 6100 | 7500 | 11000 | |
| BK1414 RS | 14.1 | 14 | 20 | 14 | 6100 | 7500 | 11000 | |
| 15 | HK1514 RS | 12.6 | 15 | 21 | 14 | 6800 | 8800 | 11000 |
| HK1516 RS | 14.3 | 15 | 21 | 16 | 6800 | 8800 | 10000 | |
| BK1514 RS | 14.4 | 15 | 21 | 14 | 6800 | 8800 | 10000 | |
| HK1518 RS | 16 | 15 | 21 | 18 | 9500 | 11400 | 10000 | |
| HK1520 RS | 18 | 15 | 21 | 20 | 9500 | 11400 | 10000 | |
| 16 | HK1614 RS | 15.1 | 16 | 22 | 14 | 7200 | 9200 | 10000 |
| HK1616 RS | 15.1 | 16 | 22 | 16 | 7200 | 9200 | 10000 | |
| BK1614 RS | 15.3 | 16 | 22 | 14 | 7200 | 9200 | 10000 | |
| HK1620 RS | 16.8 | 16 | 22 | 20 | 9900 | 12300 | 10000 | |
| HK1625 RS | 16 | 22 | 25 | 9900 | 12300 | 10000 | ||
| 17 | HK17*25*14RS | 17.7 | 17 | 25 | 14 | 8000 | 9800 | 10000 |
| HK17*25*115.5RS | 20 | 17 | 25 | 15.5 | 9320 | 10400 | 13000 | |
| HK17*25*18 RS | 23.5 | 17 | 25 | 18 | 10500 | 12600 | 13000 | |
| HK17*25*20 RS | 26.2 | 17 | 25 | 20 | 11600 | 13200 | 13000 | |
| 18 | HK1814 RS | 15.1 | 18 | 24 | 14 | 7800 | 9900 | 13000 |
| HK1816 2RS | 17 | 18 | 24 | 16 | 7800 | 9900 | 9200 | |
| 20 | HK2012 RS | 11.7 | 20 | 26 | 12 | 9500 | 11900 | 9200 |
| HK2016 2RS | 18.8 | 20 | 26 | 16 | 8000 | 10100 | 9000 | |
| HK2018 RS | 21.4 | 20 | 26 | 18 | 12700 | 20100 | 8200 | |
| HK2020 2RS | 23.5 | 20 | 26 | 20 | 12700 | 20100 | 7800 | |
| BK2018 RS | 24.4 | 20 | 26 | 18 | 12700 | 20100 | 7800 | |
| HK20*29*18RS | 28.8 | 20 | 29 | 18 | 8700 | 9980 | 7800 | |
| 22 | HK2212 RS | 14 | 22 | 28 | 12 | 8310 | 10000 | 9000 |
| HK2214 RS | 18.3 | 22 | 28 | 14 | 9000 | 12400 | 7800 | |
| HK2216 RS | 20.3 | 22 | 218 | 16 | 9000 | 12400 | 7800 | |
| HK2218 RS | 23.5 | 22 | 28 | 18 | 10400 | 20100 | 7800 | |
| HK2220 2RS | 25.5 | 22 | 28 | 20 | 10400 | 20100 | 7800 | |
| 25 | HK2516 2RS | 27.3 | 25 | 32 | 16 | 9800 | 13200 | 6900 |
| HK2518 RS | 31 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
Q1.How to choose bearings?
A: Analyse mechanical device and use conditions.clear the requiremment of bearings.select type of bearings,select distribution way of bearings.selet dimensions of bearings,select installation method of bearings.
Q2.How to prolong service life of bearings?
A: Accurate installation and using,alignment,timely monitor,re lubriexcavatorion etc.
Q3.When select bearings specifiexcavatorions,what you need to consider?
A: The precision of the bearings(rotating precision,dimensional tolerances)internal clearance and preload bearing material and heat treatment.structure of cage and material.
Q4.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5.What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons.
