Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
22316CA
80*170*58mm Spherical Roller Bearing 22316CA 22316W33 22316E CHROME STEEL Material
P0 P5 P4 P3 Quality Level
Product introduction(High Bearing come to ZH)
22316CA The dimensions of the raceways and the profile of the rolling elements can be designed in such a way that they have high load carrying capacity. This Spherical Roller Bearing can be used in pairs or groups to support axial and radial loads. The spherical rollers are mounted inside the outer ring cage, which prevents the shaft from deflecting under load. This type of bearing is versatile and diverse.Spherical Roller Bearing has been subject to an extensive development process by which we continually strive to improve the product quality. This means that each individual bearing is available in various designs, materials and coatings to suit specific requirements.
d |
80 mm
|
Bore diameter |
---|---|---|
D |
170 mm
|
Outside diameter |
B |
58 mm
|
Width |
d2 |
≈98.3 mm
|
Shoulder diameter of inner ring |
D1 |
≈143 mm
|
Shoulder/recess diameter of outer ring |
b |
8.3 mm
|
Width of lubrication groove |
K |
4.5 mm
|
Diameter of lubrication hole |
r1,2 |
min.2.1 mm
|
Chamfer dimension |
da |
min.92 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.158 mm
|
Diameter of housing abutment |
ra |
max.2 mm
|
Radius of fillet |
Basic dynamic load rating | C |
516 kN
|
---|---|---|
Basic static load rating | C0 |
540 kN
|
Fatigue load limit | Pu |
54 kN
|
Reference speed |
3 000 r/min
|
|
Limiting speed |
4 000 r/min
|
|
Limiting value | e |
0.35
|
Calculation factor | Y1 |
1.9
|
Calculation factor | Y2 |
2.9
|
Calculation factor | Y0 |
1.8
|
da |
min.92 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.158 mm
|
Diameter of housing abutment |
ra |
max.2 mm
|
Radius of fillet |
Abutment dimensions
da |
min.92 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.158 mm
|
Diameter of housing abutment |
ra |
max.2 mm
|
Radius of fillet |
Dimensions
d |
80 mm
|
Bore diameter |
---|---|---|
D |
170 mm
|
Outside diameter |
B |
58 mm
|
Width |
d2 |
≈98.3 mm
|
Shoulder diameter of inner ring |
D1 |
≈143 mm
|
Shoulder/recess diameter of outer ring |
b |
8.3 mm
|
Width of lubrication groove |
K |
4.5 mm
|
Diameter of lubrication hole |
r1,2 |
min.2.1 mm
|
Chamfer dimension |
22316CA Collection
NUP2310 | 30314D=250 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | 6213 |
30312D | NUP309 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | NUP308 |
30312D | T7FC055 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | KMF41-PC60-7 |
NUP308 | T7FC055 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | M2X63 |
DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | |
NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 |

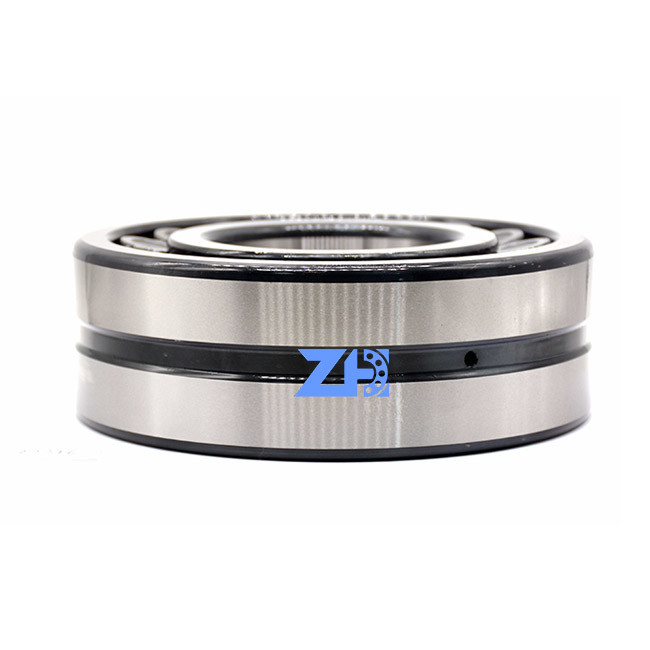

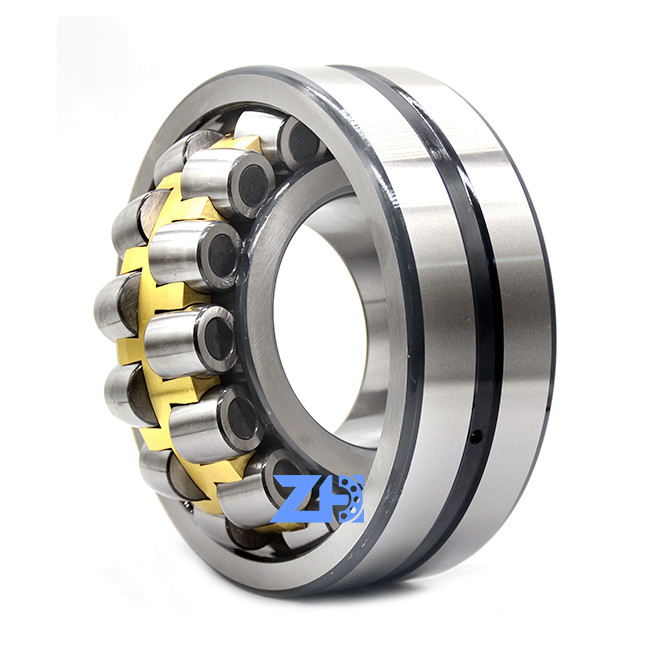

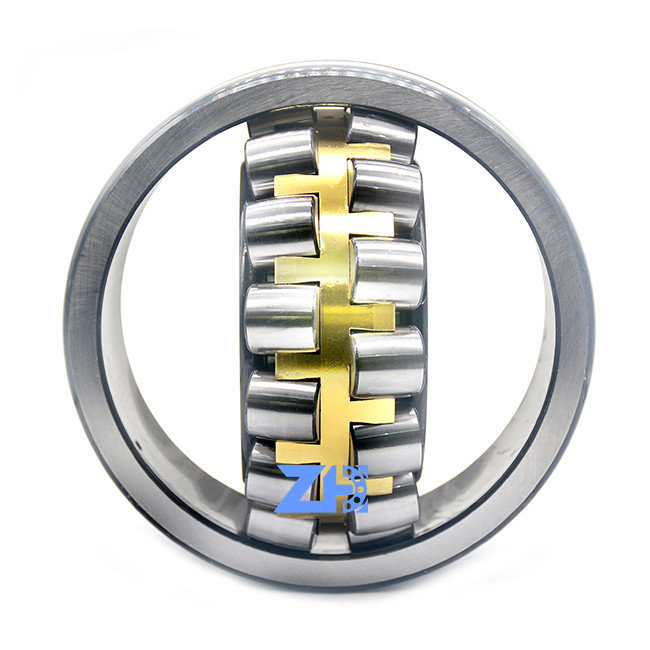

Picture show
