Place of Origin:
ShanDong, China (Mainland)
Brand Name:
CN&ZH
Model Number:
23030

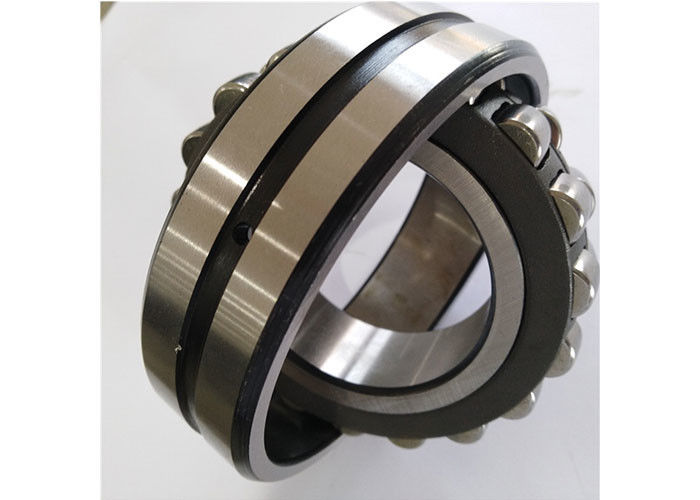

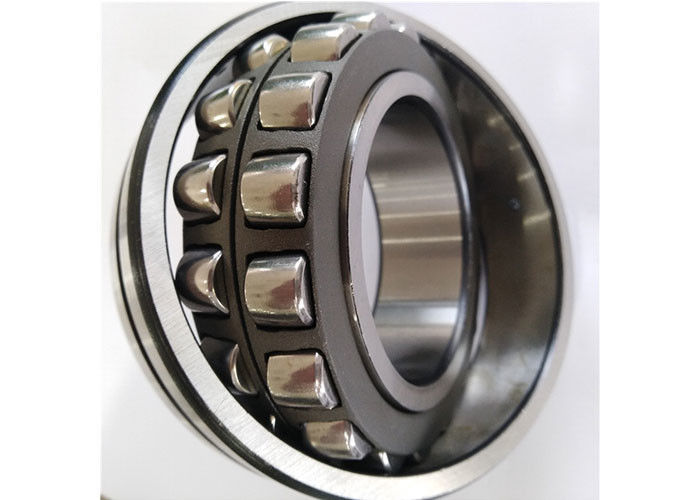

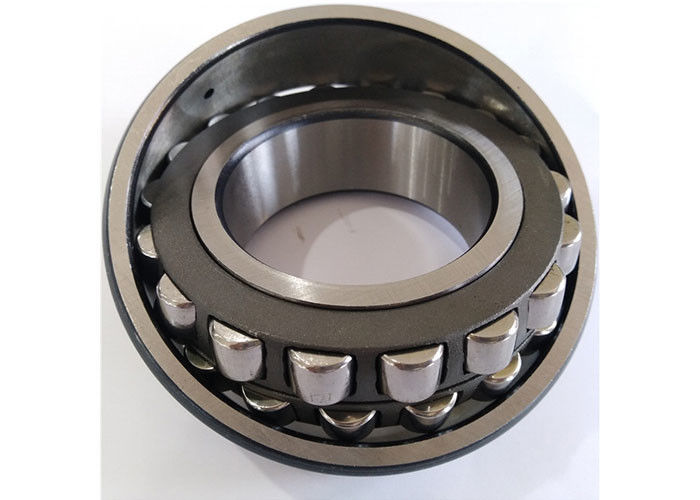

High-Duty Seismic Behavior Printing Press Used Spherical Roller Bearing 24030 CC/W33 Extend The Service Life
Product Description
Spherical roller bearings are designed with doube-row raceway inner ring,spherical raceway outer ring and the convex symmetrical rollers.With the same center as the bearings,the spherically formed outer ring raceway can make self alignment,which can adapt the deflection between axis and housing bore. This kind of bearings can take great radial load,suitable for heavy machines used in paper-making ,mining,vibration sieve,rolling mill and so on .
CC Features a stamped steel cage and strengthened symmetric roller.As a second generation design,these bearing design,these bearing designs are optimized to offer considerably higher load ratings than conventional designs for a broad range of appliexcavatorions and long service life.
CA The alternative design of the second generation ,these bearings feature a precision-mchined brass cage and strengthened symmtric roller and are equivalent to CC design in load ratings .They are used to exchange with C design ,particularly for large size.
MB Feature a two piece precision-machined brass cage.These bearings ncorparate strengthend symmetric rollers,and are equivalent to CC design in load capacity.
Self-aligning roller bearings are mainly applied on mechanical equipments of steel, mine, paper making, shipping, textile machinery, coal mill and electric power industries. It is one of the bearings most widely used in mechanical industry.
Specifiexcavatorion
|
specifiexcavatorion |
dimensions(mm) |
specifiexcavatorion |
dimensions(mm) |
|
22205 |
25*52*18 |
23064 |
320*480*121 |
|
22206 |
30*62*20 |
23068 |
340*520*133 |
|
22207 |
35*72*23 |
23072 |
360*540*134 |
|
22208 |
40*80*23 |
23076 |
380*560*135 |
|
22209 |
45*85*23 |
23080 |
400*600*148 |
|
22210 |
50*90*23 |
23084 |
420*620*150 |
|
22211 |
55*100*25 |
23088 |
440*650*157 |
|
22212 |
60*110*28 |
23092 |
460*680*163 |
|
22213 |
65*120*31 |
23096 |
480*700*165 |
|
22214 |
70*125*31 |
230/500 |
500*720*167 |
|
22215 |
75*130*31 |
230/530 |
530*780*185 |
|
22216 |
80*140*33 |
230/560 |
560*780*195 |
|
22217 |
85*150*36 |
230/600 |
600*870*200 |
|
22218 |
90*160*40 |
230/630 |
630*920*212 |
|
22219 |
95*170*43 |
230/670 |
670*980*230 |
|
22220 |
100*180*46 |
240/850 |
850*1220*365 |
|
22222 |
110*200*53 |
240/900 |
900*1280*375 |
|
22224 |
120*215*58 |
23121 |
105*175*56 |
|
22226 |
130*230*64 |
23122 |
110*180*56 |
|
22228 |
140*250*68 |
23124 |
120*200*62 |
|
22230 |
150*270*73 |
23126 |
130*210*80 |
|
22232 |
160*260*80 |
23128 |
140*225*85 |
|
22234 |
170*310*86 |
23130 |
150*250*80 |
|
22236 |
180*320*86 |
23132 |
160*270*86 |
|
22238 |
190*320*92 |
23134 |
170*280*88 |
|
22240 |
200*360*98 |
23136 |
180*300*96 |
|
22244 |
220*400*108 |
23138 |
190*320*104 |
|
22248 |
240*440*120 |
23140 |
200*340*112 |
|
22252 |
260*480*130 |
23144 |
220*370*120 |
|
22256 |
280*500*130 |
23148 |
240*400*128 |
|
22260 |
300*540*140 |
23152 |
260*440*144 |
|
22308 |
40*90*33 |
23156 |
280*460*146 |
|
22309 |
45*90*33 |
23160 |
300*500*160 |
|
22310 |
50*110*40 |
23164 |
320*540*176 |
|
22311 |
55*120*43 |
23168 |
340*580*190 |
|
22312 |
60*130*46 |
23172 |
360*600*192 |
|
22313 |
65*140*48 |
23176 |
380*620*194 |
|
22314 |
70*150*51 |
23180 |
400*650*200 |
|
22315 |
75*160*55 |
23184 |
420*700*224 |
|
22316 |
80*170*58 |
23188 |
440*720*226 |
|
22317 |
85*180*60 |
23192 |
460*760*240 |
|
22318 |
90*190*64 |
23196 |
480*790*248 |
|
22319 |
95*200*67 |
23218 |
90*160*52.4 |
|
22320 |
100*215*73 |
23220 |
100*180*60.3 |
|
22322 |
110*240*80 |
23222 |
100*180*60.3 |
|
22324 |
120*246*80 |
23224 |
120*200*69.8 |
|
22326 |
130*280*93 |
23226 |
120*230*80 |
|
22328 |
140*300*102 |
23228 |
140*250*88 |
|
22330 |
150*320*108 |
23230 |
150*270*96 |
|
22332 |
1608340*114 |
23232 |
160*290*104 |
|
22334 |
170*360*120 |
23234 |
180*310*110 |
|
22336 |
180*380*126 |
23236 |
180*320*112 |
|
22338 |
190*400*132 |
23238 |
190*340*120 |
|
22340 |
200*420*138 |
23240 |
200*360*128 |
|
22344 |
220*460*145 |
23244 |
200*400*144 |
|
22348 |
240*500*155 |
23248 |
240*440*160 |
|
22352 |
260*540*165 |
23252 |
260*480*174 |
|
22356 |
280*580*175 |
23256 |
280*500*176 |
|
22372 |
360*750*244 |
23260 |
300*540*192 |
|
22380 |
400*820*243 |
23264 |
320*580*208 |
|
23022 |
110*170*75 |
23280 |
400*720*256 |
|
23024 |
120*180*46 |
23284 |
420*760*272 |
|
23026 |
130*200*52 |
23296 |
480*870*310 |
|
23028 |
140*210*53 |
23936 |
180*250*52 |
|
23030 |
150*225*56 |
23940 |
200*280*60 |
|
23032 |
160*240*60 |
23948 |
240*320*60 |
|
23034 |
170*260*67 |
23960 |
300*420*90 |
|
23036 |
180*280*74 |
23972 |
360*480*90 |
|
23038 |
190*290*75 |
23976 |
380*580*106 |
|
23040 |
200*310*82 |
23996 |
480*650*128 |
|
23044 |
230*340*90 |
239/500 |
500*670*128 |
|
23048 |
240*360*92 |
239/670 |
670*900*170 |
|
23052 |
260*400*104 |
239/710 |
710*950*180 |
|
23056 |
280*420*106 |
239/850 |
850*1200*200 |
|
23060 |
300*460*118 |
|
|
