Innovate ZH Bearing,
and Rotate the Peak of Bearing World!
Place of Origin: | CHINA |
Brand Name: | ZH |
Certification: | ISO9001:2008 |
Model Number: | 24024MB |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | 1-2 work day |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 per day |
Product Name: | Spherical Roller Bearing | Model: | 24024MB |
---|---|---|---|
Precision Rating: | P0,P6,P5,P4,P2 | Seals Type: | CC CA MB MA |
SIZE: | 120*180*60 | Material: | GCR15 Material (Chrome Steel) |
Weight: | 5.8kg | Clearance: | C0 C2 C3 C4 |
Applicable Industries: | Mill Mine Metallurgical ETC Engineering Machinery | Place Of Origin: | Shang Dong (China) |
Feature: | High Speed | Brand Name: | X&H OR OEM |
Packag: | According To Customer Requirements | ||
High Light: | split roller bearing,spherical roller thrust bearing |

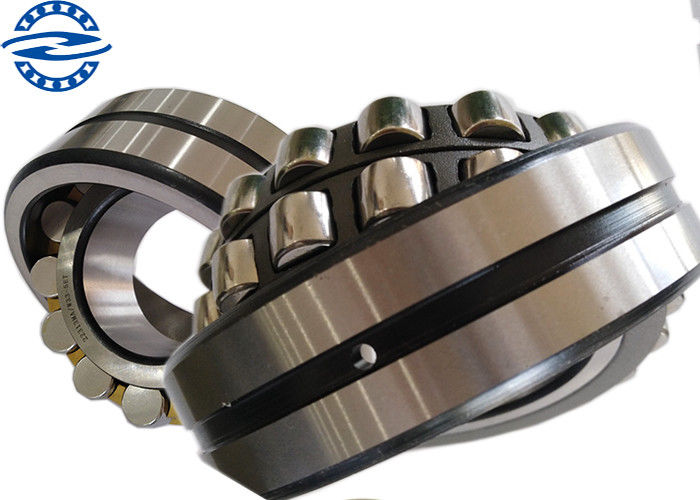

4. 24024MB Double row spherical roller bearing weight 5.15kg
1 . Detailed Product Description
pherical Roller Bearing features:
1. Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings.
2. High load carrying capacity
Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
3. Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust,
providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends.
4. Low friction
Self-guiding rollers keep friction and frictional heat at low levels. A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.
Robust
All BHR spherical roller bearings contain strong window- or prong-type cages.
Specifications |
Cage Tpye C |
Cage Material Steel |
Ring And Roller Material Chrome Steel GCr15 |
Weights 6.33Kgs |
Dimensions |
Bore Sizes d 120.00mm |
Outside Diameter D 180.00mm |
Inside And Outside Ring Width B 60.00mm |
Radius Rs min 2.0mm |
Basic Load Ratings |
Cr Dynamic Load Rating(Two Raws) 231kN |
C0r Static Load Rating 470kN |
Factors |
Reference Thermal Speed Rating(Grease) 1,600rpm |
Reference Thermal Speed Rating(Oil) 2,000rpm |
e-ISO Factor 0.32 |
Y0-ISO Factor 2.1 |
Y1-ISO Factor 3.2 |
Y2-ISO Factor |
2 . PRODUCT SHOW
Subject | Symbol | Description |
Radial internal clearance | C2 | Less than normal. |
CN | Normal clearance. Is not indicated as a standard. | |
C3 | Greater clearance than normal. | |
C4 | Greater than C3. | |
C5 | Greater than C4. | |
Other technical modifications | W33 | All bearings are equipped with an annular groove and three lubrication holes in the outer ring. |
K | Tapered bore. | |
Cage types | C | Steel cage design bearings have two stamped window-type steel cages, an inner ring without flanges and a floating guide ring centered on the inner ring. |
MB | Split brass cage, centered on the inner ring. There are hard board in the center and two boards in the outer sides. | |
M | Machined solid brass cage. | |
Tolerances | P0 | Normal tolerance level. Is not indicated as a standard. |
P6 | Greater tolerance level than P0. | |
P5 | Greater tolerance level than P6. |
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
WORKSHOP
WAREHOUSE
INSPECTION MACHINE
4. PACKAG and SHIPPING
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
4. Negotiable
4 . Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded.
We have a good reputation in the international market by our perfect service and sufficient supply.
5.Quality&Services
Products process: Advanced producing equipment, inspection equipment and good control system to keep the product produce smoothly.
Quality guaranty: Product quality assurance period is over year 2000 miles.
Superficial finish: Carefully work in the assembly line to confirm the products in perfect appearance.Products can also be manufactured according to drawings and samples with customers requirement. We sincerely welcome our friends to visit and negotiate business.
Meanwhile, we are looking forward to finding long-term partners..
6 . FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
