Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | ZH NTN |
| Model Number: | 51406 |
| Certifiexcavatorion: | ISO9001-2000 / CE / ROHS / UL / |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | ZH NTN |
| Delivery Time: | 1-2 work day |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 500 pieces per day |
| Model No: | 51406 | Weight: | 0.53 Kg |
|---|---|---|---|
| Dimensions(mm)(d*D*b): | 30 Mm * 70 Mm * 28 Mm | Appliexcavatorion: | Machine Tool |
| Material: | Gcr15 | Precision Rating: | ABEC-3 / ABEC-5 |
| High Light: | sealed thrust bearing,small thrust bearings |
||

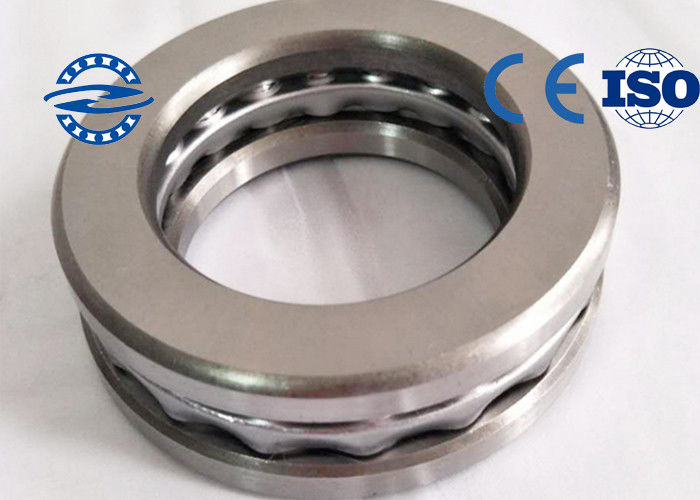

Small Size Thrust Ball Bearing 51406 0.53 KG 30mm * 70mm * 28mm For Mine Machine

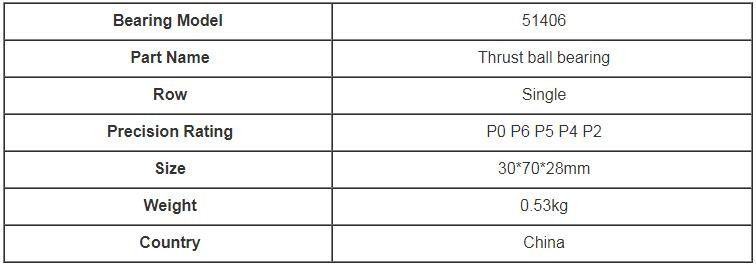

| Bearing Model | 51406 |
| Part Name | Thrust ball bearing |
| Row | Single |
| Precision Rating | P0 P6 P5 P4 P2 |
| Size | 30*70*28mm |
| Weight | 0.53kg |
| Country | China |
1 . Product description

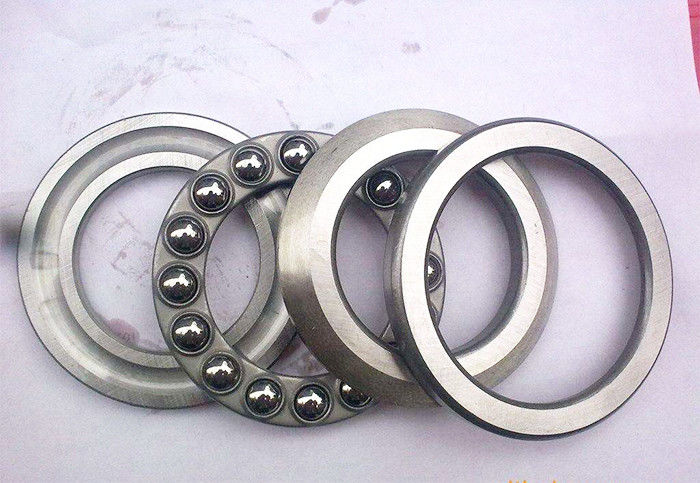

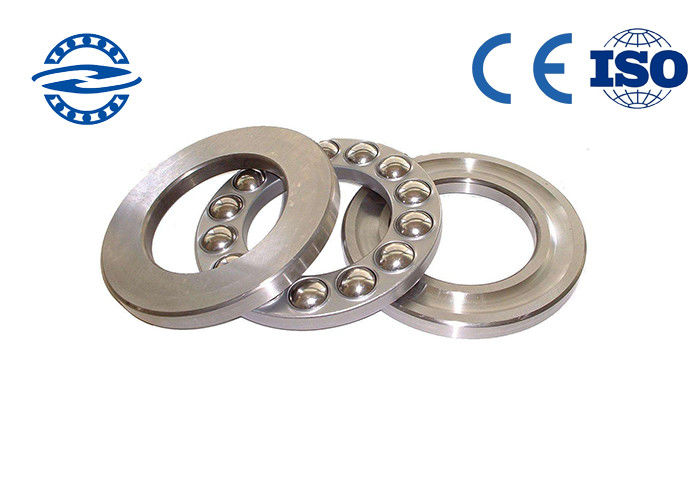

Thrust ball bearing composition: thrust ball bearing consists of three parts: seat ring, shaft and steel ball.
A ring that coordinates with a shaft, which is fitted with a shell
2 . Other size
| d /mm | D/mm | B/mm | Models | Weight/KG |
| 10 | 24 | 9 | 51100 | 0.02 |
| 10 | 26 | 11 | 51200 | 0.03 |
| 12 | 26 | 9 | 51101 | 0.022 |
| 12 | 28 | 11 | 51201 | 0.034 |
| 15 | 28 | 9 | 51102 | 0.024 |
| 15 | 32 | 12 | 51202 | 0.046 |
| 17 | 30 | 9 | 51103 | 0.028 |
| 17 | 35 | 12 | 51203 | 0.053 |
| 20 | 35 | 10 | 51104 | 0.04 |
| 20 | 40 | 14 | 51204 | 0.082 |
| 20 | 47 | 18 | 51304 | 0.13 |
| 25 | 42 | 11 | 51105 | 0.059 |
| 25 | 47 | 15 | 51205 | 0.12 |
| 25 | 52 | 18 | 51305 | 0.18 |
| 25 | 60 | 24 | 51405 | 0.34 |
| 30 | 47 | 11 | 51106 | 0.068 |
| 30 | 52 | 16 | 51206 | 0.15 |
| 30 | 60 | 21 | 51306 | 0.27 |
| 30 | 70 | 28 | 51406 | 0.53 |
| 35 | 52 | 12 | 51107 | 0.09 |
| 35 | 62 | 18 | 51207 | 0.22 |
3 . The characteristics of thrust ball bearing
1. One - way, two - way type thrust ball bearing thrust ball bearing
2. The spherical seat cushion or spherical seat ring can be selected.
3. High quality steel -- ultra clean steel which can extend the life of the bearing by 80%
4. High grease technology - NSK's lubricant technology can extend the life of the grease and improve the performance of the bearing
5. High grade steel ball - quiet and smooth at high speed
6. Use the ring in the selection to allow for installation error
4 . Our ascendancy
quality confirmation
experienced history
professional team
good service
competitive price
bearings stock lots
5 . Packaging
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand
6.FAQ
1. How long can the inquiry be answered?
If we got you inquiry list will feedback within 2-6 hours. Urgent will be faster.
2. How about your quality of bearings?
Strictly follow ISO9001 standard for production.
3. Can I get free samples to test?
Yes.we provide that if you need.
4. What is the MOQ of your products?
Usually >1,depending on the model.
5. How about the Delivery time?
About 3-15days. (According tothequantity.)
6. How do you check the quality before delivery?
Our company has a professional quality inspect!on department,
which strictly controls the quality of products.
7.f there is a problem with the products we receive, how can you solve it?
If have any questions, please con tact us in time.
We will deal with them immediately.
8.How long will our question be answered?
We will respond within 1 hour and solve it within 24 hours.
