Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | ZH |
| Model Number: | 52409 |
| Certifiexcavatorion: | ISO9001-2000 / CE / ROHS / UL / |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | ZH NTN |
| Delivery Time: | 1-2 work day |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 500 pieces per day |
| Product Name: | Thrust Ball Bearing | Weight: | 1.1 Kg |
|---|---|---|---|
| Dimensions(mm)(d*D*b): | 30mm × 70mm × 52mm | Appliexcavatorion: | Machine Tool |
| Material: | Gcr15 | Precision Rating: | ABEC-3 / ABEC-5 |
| High Light: | thrust roller bearing,small thrust bearings |
||

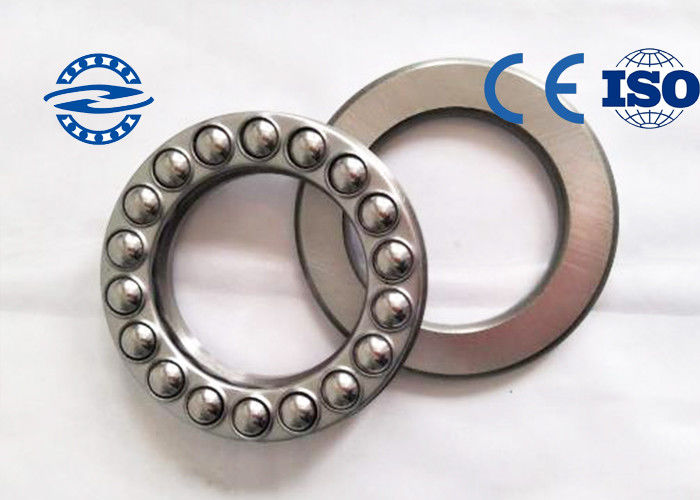

Dimension Accuracy Thrust Ball Bearing 52409 Metric Thrust Bearings For Vertical Pump 30mm × 70mm × 52mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
|
Product Name
|
Thrust ball bearing
|
|
Material
|
steel
|
|
Color
|
nickel white
|
|
Parts number
|
52409
|
|
brand
|
ZH
|
|
size
|
30mm × 70mm × 52mm
|
|
weight
|
0.024KG
|
|
Used
|
building industry machinery
|
Other size
| Specifiexcavatorion (mm) | Model | Dy | St | Limited Speed(rpm) | ||||||
| Basic Load | ||||||||||
| d | d | D | B | R | r1 | Ca(N) | Coa(N) | Grease | Oil | |
| min | min | Co | Cor | |||||||
| 45 | 35 | 100 | 72 | 1.1 | 0.6 | 52409 | 129000 | 243000 | 1600 | 2400 |
| 50 | 40 | 78 | 39 | 1 | 0.6 | 52210 | 48500 | 112000 | 2400 | 3600 |
| 50 | 40 | 95 | 58 | 1.1 | 0.6 | 52310 | 96500 | 202000 | 1800 | 2700 |
| 50 | 40 | 110 | 78 | 1.5 | 0.6 | 52410 | 148000 | 283000 | 1400 | 2100 |
| 55 | 45 | 90 | 45 | 1 | 0.6 | 52211 | 69500 | 159000 | 2100 | 3100 |
| 55 | 45 | 105 | 64 | 1.1 | 0.6 | 52311 | 120000 | 246000 | 1600 | 2400 |
| 55 | 45 | 120 | 87 | 1.5 | 0.6 | 52411 | 178000 | 360000 | 1300 | 1900 |
| 60 | 50 | 95 | 46 | 1 | 0.6 | 52212 | 73500 | 179000 | 2000 | 3000 |
| 60 | 50 | 110 | 64 | 1.1 | 0.6 | 52312 | 123000 | 267000 | 1600 | 2400 |
| 60 | 50 | 130 | 93 | 1.5 | 0.6 | 52412 | 213000 | 435000 | 1200 | 1800 |
| 65 | 55 | 100 | 47 | 1 | 0.6 | 52213 | 75000 | 189000 | 1900 | 2800 |
| 65 | 55 | 115 | 65 | 1.1 | 0.6 | 52313 | 127000 | 287000 | 1500 | 2300 |
| 65 | 50 | 140 | 101 | 2 | 1 | 52413 | 231000 | 495000 | 1100 | 1600 |
| 70 | 55 | 105 | 47 | 1 | 1 | 52214 | 76000 | 199000 | 1800 | 2800 |
| 70 | 55 | 125 | 72 | 1.1 | 1 | 52314 | 148000 | 340000 | 1400 | 2100 |
| 70 | 55 | 150 | 107 | 2 | 1 | 52414 | 250000 | 555000 | 1000 | 1500 |
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact Person: Xiao
Tel: +8613561495066
