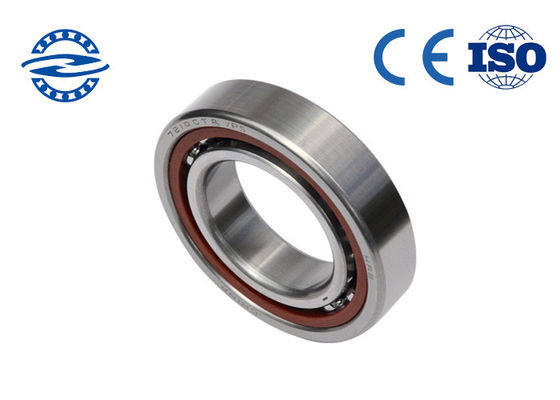

Angular Contact Single Row Axial Ball Bearing , 7220ACD / P4A size 30*55*13mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
1 . product description
Angular Contact bearings are designed to accommodate a combination of both radial and axial loads.
The ratio of radial to axial load capacity is achieved by varying the contact angle of the bearing. For most appliexcavatorion requirements one of two contact angles will usually suffice 40 degree and 20 degree.
The most popular angular contact bearings are the 40 degree 7200B and 7300B series.
2. Size Range:
1, miniature bearings, nominal diameter size range: 26 mm or less
2, small bearings, nominal diameter size range: 28 to 55mm
3, small-medium bearings, nominal diameter size range: 60-115mm
4, large-medium bearings, nominal diameter size range: 120-190mm
5, large bearings, nominal diameter size range: 200-430mm
6, oversize bearings, nominal diameter size range: 440mm or more
3. other size
| Boundary Dimensions | Limiting Speed1) | Bearing | Mass | |||||
| (mm) | (rpm) | Designation2) | (kg) | |||||
| d | D | B | r | r1 | Grease | Oil | Approx | |
| (min.) | (min.) | |||||||
| 100 | 140 | 20 | 1.1 | 0.6 | 7000 | 9200 | 7920C | 0.773 |
| 140 | 20 | 1.1 | 0.6 | 7000 | 9200 | ACH920C | 0.869 | |
| 150 | 24 | 1.5 | 1 | 6700 | 8800 | ACH020C | 1.34 | |
| 150 | 24 | 1.5 | 1 | 4700 | 5900 | 7020 | 1.37 | |
| 150 | 24 | 1.5 | 1 | 3500 | 4700 | 7020B | 1.37 | |
| 150 | 24 | 1.5 | 1 | 6500 | 8600 | 7020C | 1.37 | |
| 180 | 34 | 2.1 | 1.1 | 4100 | 5200 | 7220 | 3.32 | |
| 180 | 34 | 2.1 | 1.1. | 3100 | 4200 | 7220B | 3.32 | |
| 180 | 34 | 2.1 | 1.1 | 5700 | 7600 | 7220C | 3.32 | |
| 215 | 47 | 3 | 1.1 | 3600 | 4600 | 7320 | 7.53 | |
| 215 | 47 | 3 | 1.1 | 2700 | 3600 | 7320B | 7.53 | |
| 215 | 47 | 3 | 1.1 | 5000 | 6700 | 7320C | 7.53 | |
we have our own factory
standard packing can be changed as your requirement
bearings cage could select according to your needs
size and color can be customized
good communiexcavatorion sales team
quality confirmation
experienced history
professional team
good service
competitive price
5 . Angular Contact Ball Bearings Appliexcavatorion
Motor, Machinery, Electric Tools, Sports Apparatus,
office equipment , Scooter Aluminum windows ,
shower blocks, hanging round, closet wheel, toys
Fan, car, truck, tractors and automatic machine,
Textile machine, Pump, Agricultural machinery, Machine tool
window , sliding door , other furniture and some toys.
