Place of Origin:
CHINA
Brand Name:
ZH NTN KOYO
Model Number:
23228CCK / W33

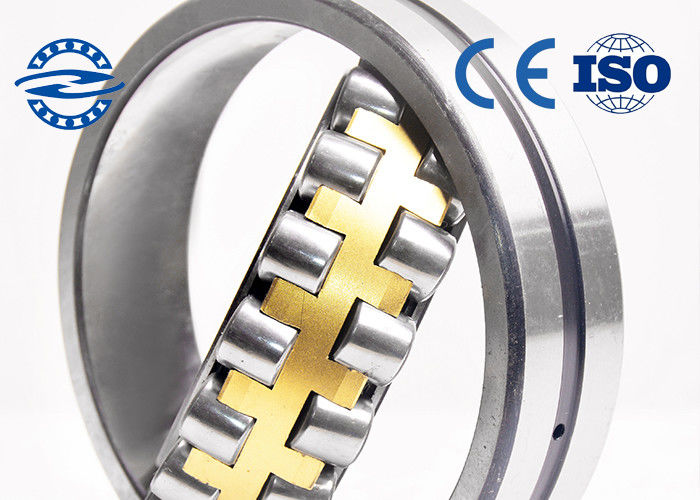

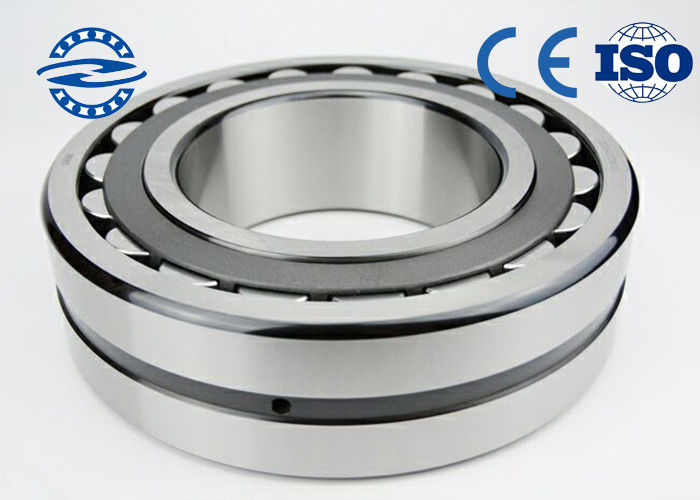

23228CCK / W33 TIMKEN Torrington Spherical Roller Bearing Elevator Traction Machine
1 . Ptoduct description
spherical roller bearing has two roller bearings , mainly bearing radial load , and can also bear axial load in either direction . It has high radial load capacity , especially for heavy load or vibration load , but cannot bear pure axial load .The outer ring of this kind of bearing is a spherical shape , so its tuning performance is good , which can compensate the coaxial error .
2 . Our advantages
1 . Competitive price
Large inventories and strong production capabilities enable us to offer more affordable prices globally.
Customers can get high-quality bearings with attractive prices at the same time
2 . Non-standard Customized Service
We could customize many non-standard bearings as your drawing requests and offer in-house test report by professional engineers . All customized goods are made to order as requests
3 . Perfect Quality Control System
We have perfect quality control system and testing equipment , experienced engineers over 10 years . We test the bearings one by one , ensuring the high performance of all bearings .
3 . other size
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22326 CC/W33 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCK/W33 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 22326 CCKJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 23028 CC/W33 | 140 | 210 | 53 | 465 | 680 | 6.55 |
| 23028 CCK/W33 | 140 | 210 | 53 | 465 | 680 | 6.35 |
| 24028 CC/W33 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 24028 CCK30/W33 | 140 | 210 | 69 | 570 | 900 | 8.4 |
| 24028-2CS2/VT143 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 23128 CC/W33 | 140 | 225 | 68 | 630 | 900 | 10.5 |
| 23128 CCK/W33 | 140 | 225 | 68 | 630 | 900 | 10 |
| 24128 CC/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128 CCK30/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128-2CS2/VT143 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 22228 CC/W33 | 140 | 250 | 68 | 710 | 900 | 14 |
| 22228 CCK/W33 | 140 | 250 | 68 | 710 | 900 | 13.5 |
| 23228 CC/W33 | 140 | 250 | 88 | 915 | 1250 | 19 |
| 23228 CCK/W33 | 140 | 250 | 88 | 915 | 1250 | 18.5 |
| 23228-2CS5/VT143 | 140 | 250 | 88 | 915 | 1250 | 19.5 |
| 22328 CC/W33 | 140 | 300 | 102 | 1290 | 1560 | 36.5 |
| 22328 CCJA/W33VA405 | 140 | 300 | 102 | 1290 | 1560 | 36.5 |
| 22328 CCK/W33 | 140 | 300 | 102 | 1290 | 1560 | 36 |
| 22328 CCKJA/W33VA405 | 140 | 300 | 102 | 1290 | 1560 | 35.5 |
| 23030 CC/W33 | 150 | 225 | 56 | 510 | 750 | 7.95 |
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
