Place of Origin:
China
Brand Name:
Z&H
Model Number:
LEB40A

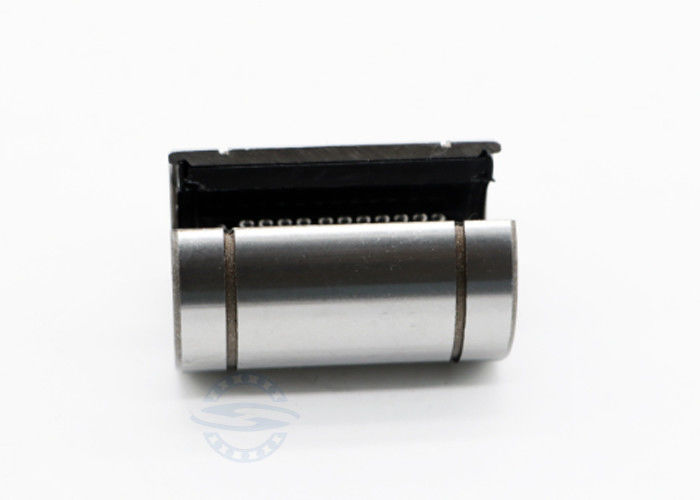

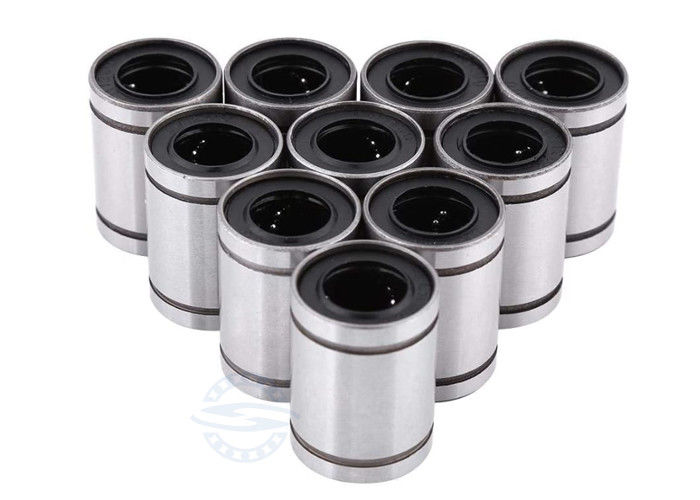

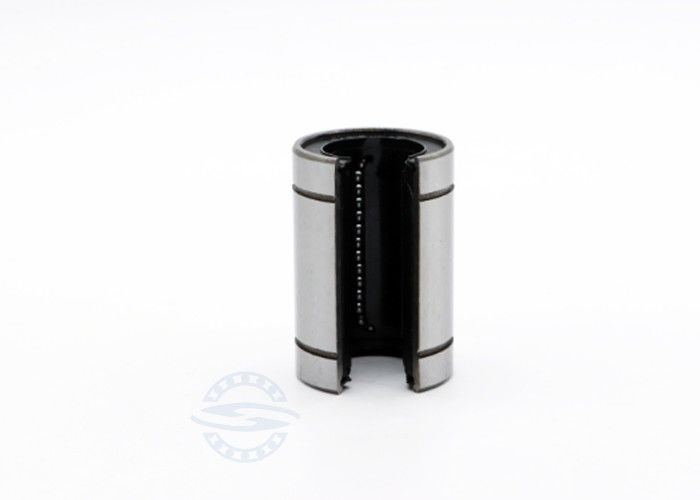

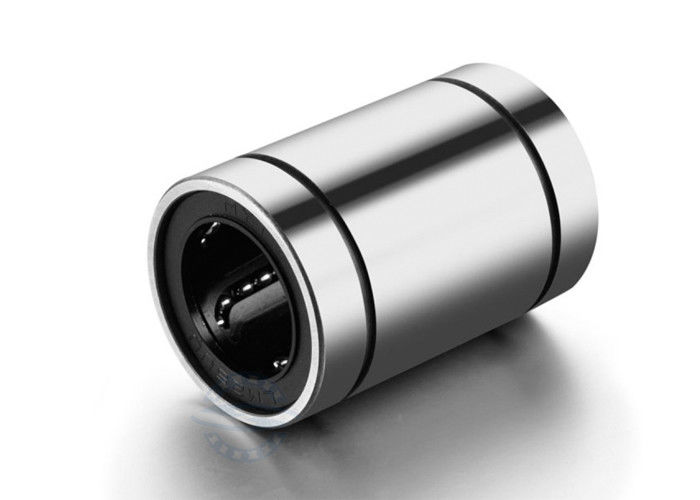

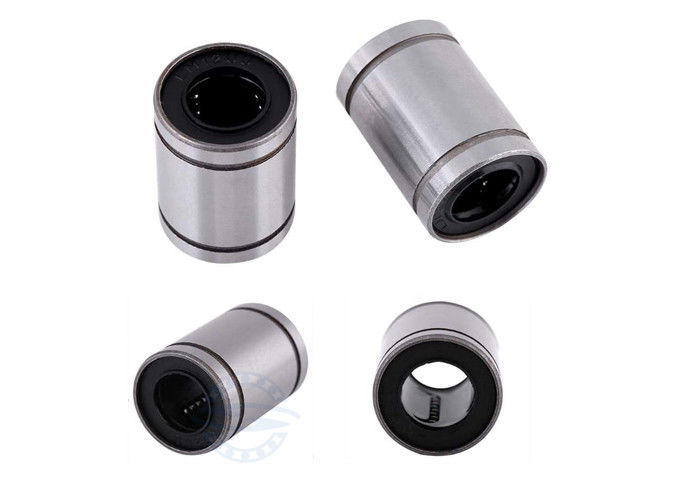

Linear Motion Bearings LM8UU LM3UU
Product Description
| Product Name | High Quality Linear Ball Bushing Bearing |
| Model No. | LM8UU |
| Material | Bearing Steel |
| Inner Diameter | 8mm |
| Outer Diameter | 15mm |
| Length | 24mm |
| Weight(kg/pc) | 0.015KG |
| Cage | Nylon Cage, Steel Cage |
| Brand | Z&H or OEM |
| Delivery Time | 3 - 7 Days for In-stock Products, Others need be Negotiated |
Linear Bearing is also widely used in automatic cutting machine, printer, card sorting machine, etc.Linear Bearing is widely used in precision equipments, like electronic equipment, tension tester, etc.
Related items.
1. LM, LME, LMB, LMF, LMK, LMH, KH, ST.
2. SC, SCE, SCJ, SB, TB, SBR, SK, SHF linear bearing block.

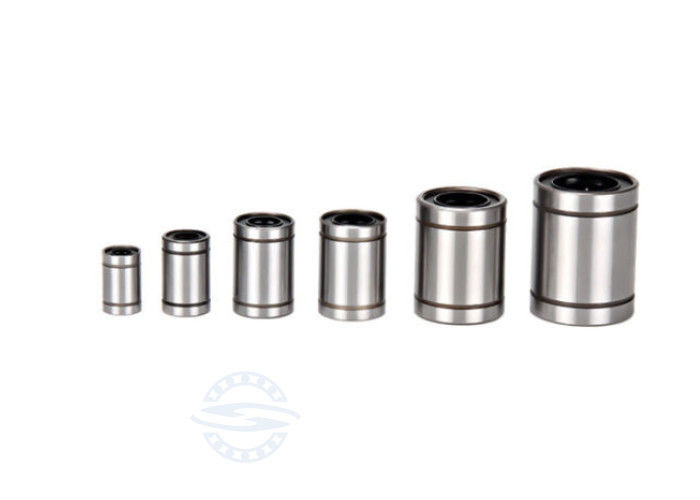

| MAIN DIMENSIONS | |||||||||||
| Model No. | Number of rows | INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | Weight/g | |||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | |||
| LM3 | 4 | 3 | 0 | 7 | 0 | 10 | 0 | ||||
| LM4 | 4 | 4 | 8 | 12 | 3 | ||||||
| LM5 | 4 | 5 | -0.008 | 10 | -0.009 | 15 | -0.12 | 10.2 | 0 | 9.6 | 4 |
| LM6UU | 4 | 6 | 0 | 12 | 0 | 17 | 0 | 13.5 | 11.5 | 6 | |
| LM8S | 4 | 8 | 15 | 19 | 11.5 | -0.2 | 14.3 | 9 | |||
| LM8UU | 4 | 8 | -0.009 | 15 | -0.011 | 24 | -0.2 | 17.5 | 14.3 | 14 | |
| LM10UU | 4 | 10 | 19 | 0 | 29 | 22 | 18 | 28 | |||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 32 | ||||
| LM13UU | 4 | 13 | 23 | -0.013 | 32 | 23 | 22 | 38 | |||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 74 | ||||
| LM20UU | 5 | 20 | 0 | 32 | 0 | 42 | 30.5 | 30.5 | 80 | ||
| LM25UU | 6 | 25 | 40 | 59 | 0 | 41 | 0 | 38 | 206 | ||
| LM30UU | 6 | 30 | -0.01 | 45 | -0.016 | 64 | 44.5 | 43 | 240 | ||
| LM35UU | 6 | 35 | 0 | 52 | 0 | 70 | -0.3 | 49.5 | -0.3 | 49 | 370 |
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 589 | ||||
| LM50UU | 6 | 50 | -0.012 | 80 | -0.019 | 100 | 74 | 76.5 | 1480 | ||
| LM60UU | 6 | 60 | 0 | 90 | 0 | 110 | 85 | 86.5 | 1750 | ||
| -0.015 | -0.022 | ||||||||||
Production Flow
Our Services
1.high precison high speed low friction
2.competitive price
3.short delivery time
4.large stock is available
5.sample is available
6.many brands can choose and oem service
7.various payment terms(T/T,West Union,MoneyGram,Paypal)
8.we will find the perfect transportation ways for you
1.Deep Groove Ball Bearing
2.Self-aliging Ball Bearing
3.Angular Contact Ball Bearing
4.Thrust Ball Bearing
5.Cylindrical Roller Bearing
6.Spherical Roller Bearing
7.Taper Roller Bearing
8.Thrust Roller Bearing
9.Slewing Bearing
10.Pillow Block Bearing
11.Joint Bearing
12.Linear Bearing
FAQ
Q:Why choose SEMRI?
A:1. We are professional,have factory in shandong for many years.
2. We are experienced for 10 years.
3. We can offer a various kind of bearing with high quality:Z1V1,Z2V2,Z3V3 and best price
Q:How is the quality of your products?
A:The same quality, we have lower price.The same price,we have better quality.
Q:Except linear bearings ,what other main bearing do you have?
A:Thrust roller bearing,Cylindrical roller bearing,Taper Roller Bearing,Spherical roller bearing,Deep groove ball bearing,Angular
contact ball bearing etc.
Q:Can I get LBE 12 UU linear bearings free samples?
A:We will charge a little sample fee for our regular designs or customized ones, These charges will be refunded to you when your
mass production order is confirmed.
Q:Can you make the products as our requirement?
A:We have more than 10 years' OEM experience. We supply products fo more than 300 automobile parts factories.
