Place of Origin:
CHINA
Brand Name:
ZH
Certification:
ISO
Model Number:
32010 JR

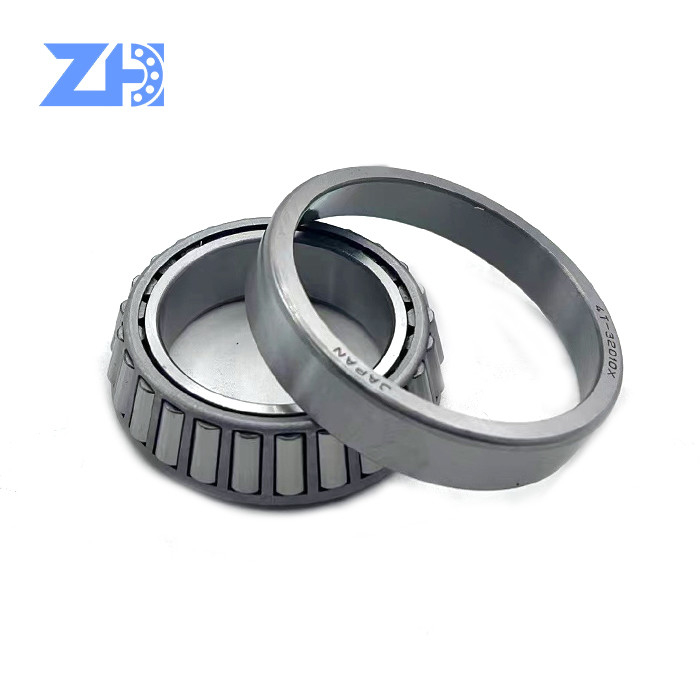

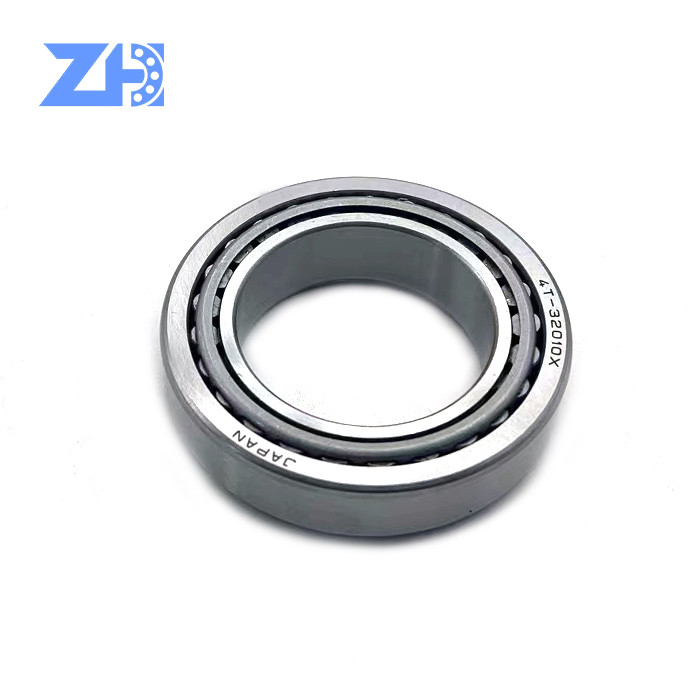

Bearing Manufacture Distributor 32010 32010 JR Tapered Roller Bearing 32010 X 50x80x20 mm
| Inside Ø (mm): | 50 |
| Outside Ø (mm): | 80 |
| Width (mm): | 20 |
| Width Inner Ring (mm): | 20 |
| Width Outer Ring (mm): | 15.5 |
| Seal: | open |
| Ring Material: | Rolling Bearing Steel |
| Rolling Element Material: | Rolling Bearing Steel |
| Cage Material: | Rolling bearing steel |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Tolerance for inside-Ø (mm): | 0/-0,012 |
| Tolerance for outside-Ø (mm): | 0/-0,016 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,15 |
| Tolerance For Width Inner Ring (mm): | 0/-0,15 |
| Norm: | DIN 720 |
| max. Operating Temperature: | +150°C |
| min. Operating Temperature: | -40°C |
| Item weight: | 0,39 kg |
Related Products
| Bearing No. | Miain Dimensions(mm) | Weight (kg) |
||
| d | D | B | ||
| 32008 | 40 | 68 | 19 | 14.5 |
| 32009 | 45 | 75 | 20 | 15.5 |
| 32010 | 50 | 80 | 20 | 15.5 |
| 32011 | 55 | 90 | 23 | 17.5 |
| 32012 | 60 | 95 | 23 | 17.500 |
| 32013 | 65 | 100 | 23 | 17.5 |
| 32014 | 70 | 110 | 25 | 19 |
| 32015 | 75 | 115 | 25 | 19 |
| 32016 | 80 | 125 | 29 | 22 |
| 32017 | 85 | 130 | 29 | 22.00 |
| 32018 | 80 | 140 | 32 | 24 |
| 32019 | 95 | 145 | 32 | 24 |
| 32020 | 100 | 150 | 32 | 24 |
Japan bearing 32010 auto part number cross reference taper roller bearing HR32010XJ
|
Model
|
HR32010XJ
|
|
Product Name
|
deep groove ball bearing
|
|
Material
|
Chrome Steel (GCr15)
|
|
Standard
|
DIN GB ISO JIS BA ANSI
|
|
Grade
|
P6,P5,P4,P3,P2
|
|
Brand
|
NSK/OEM
|
|
Thread
|
fine
|
|
Used
|
building industry machinery, Automobile, Car
|
related taper roller bearings list:
|
Model no
|
d(mm)
|
D(mm)
|
T(mm)
|
W(KG)
|
|
HR32004XJ
|
20
|
42
|
15
|
0.097
|
|
HR32005XJ
|
25
|
47
|
15
|
0.11
|
|
HR32006XJ
|
30
|
55
|
17
|
0.17
|
|
HR32007XJ
|
35
|
62
|
18
|
0.22
|
|
HR32008XJ
|
40
|
68
|
19
|
0.27
|
|
HR32009XJ
|
45
|
75
|
20
|
0.34
|
|
HR32010XJ
|
50
|
80
|
20
|
0.37
|
|
HR32011XJ
|
55
|
90
|
23
|
0.55
|
|
HR32012XJ
|
60
|
95
|
23
|
0.59
|
|
HR32013XJ
|
65
|
100
|
23
|
0.63
|
|
HR32014XJ
|
70
|
110
|
25
|
0.84
|
|
HR32015XJ
|
75
|
115
|
25
|
0.90
|
|
HR32016XJ
|
80
|
125
|
29
|
1.30
|
|
HR32017XJ
|
85
|
130
|
29
|
1.35
|
|
HR32018XJ
|
90
|
140
|
32
|
1.75
|
|
HR32019XJ
|
95
|
145
|
32
|
1.80
|
|
HR32020XJ
|
100
|
150
|
32
|
1.90
|
|
HR32021XJ
|
105
|
160
|
35
|
2.40
|
|
HR32022XJ
|
110
|
170
|
38
|
3.05
|
|
HR32024XJ
|
120
|
180
|
38
|
3.25
|
|
HR32026XJ
|
130
|
200
|
45
|
4.95
|
|
HR32028XJ
|
140
|
210
|
45
|
5.25
|
|
HR32030XJ
|
150
|
225
|
48
|
6.35
|
Metric single row tapered roller bearing
Inch single row tapered roller bearing
Double row tapered roller bearing
Four row tapered roller bearings
Paired single row tpered roller bearings
1. Less coefficient of friction, High limiting speed, Large size range, Variations of structure.
2. Tapered Roller Bearings are designed such like cup. Cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis.
3. Single-row tapered roller bearing is able to carry radial and axial load in one directions simultaneously because an axial component of produced when this type of bearings loaded radically, two bearings are used together facing one another, or two or more bearings are matched and used.
