Place of Origin: | CHINA |
Brand Name: | fAG NSK CNZH |
Certification: | IS09001:2008 |
Model Number: | 6007 |
Minimum Order Quantity: | 10piece |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 1-2 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500 per day |
Material: | GCR15 | Type: | Ball |
---|---|---|---|
Model: | 6007 | Inner Diameter: | 35mm |
Outside Diameter: | 62mm | Weight: | 0.146 |
Seal Type: | Open Zz Rs | Cage: | Stleel |
Package: | Carton | Feature: | Long Life |
Service: | Prompt Deliver | ||
High Light: | deep groove roller bearing,thin section ball bearings |

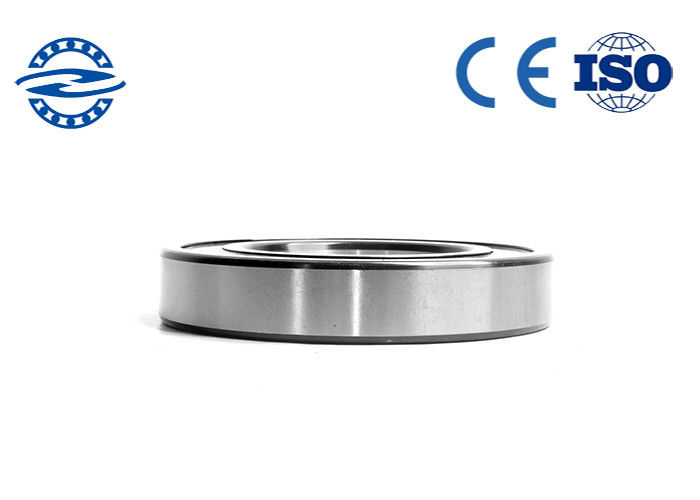

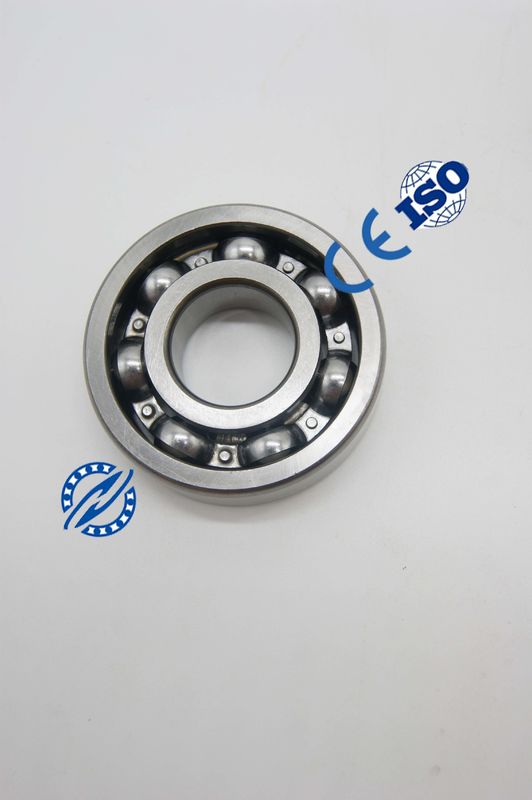

6007zz/rs deep groove ball bearing used in high-rotating speed and low noise low vibration
Introduction
Deep groove ball bearings are in very wide use and they are suitable for high speed operation.
A deep groove is formed on each inner and outer ring of a deep groove ball bearing.
Radial load and axial load in either direction and the resultant forces of these loads can be sustained.
They are available with in open or shielded or sealed type,and are prelubricated with grease or rust preventive oil.
They are also available with a snap ring on outside diameter.
Structure | deep groove | Model Number | 6000 | |
Type | Ball | Precision Rating | P0 P6 P5 | |
Brand Name | CNZH | Seals Type | OPEN /SEALED | |
Material | GCR15 | Number of Row | Single Row Double row | |
Cage | steel/brass | Place of Origin | Shandong, China (Mainland) | |
Clearance | C2, C3,C4,C5 | Samples | Free | |
Hardness | HRC58-62 | Certificate | IS09001:2008 | |
Bore Size | 10 - 140 mm | OEM service | available | |
Outside Diameter | 35 - 300 mm | Supplying ability | great number with stock and new products | |
Bearing Number | Dimension(mm) | Weight(kg) | ||
6004 | 20X42X12 | 0.069 | ||
6005 | 25X47X12 | 0.0743 | ||
6006 | 30X55X13 | 0.112 | ||
6007 | 35X62X14 | 0.146 | ||
6008 | 40X68X15 | 0.182 | ||
6009 | 45X75X16 | 0.229 | ||
6010 | 50X80X16 | 0.249 | ||
6011 | 55X90X18 | 0.374 | ||
6012 | 60X95X18 | 0.38 | ||
6013 | 65X100X18 | 0.43 | ||
6014 | 70X110X20 | 0.586 | ||
6015 | 75X115X20 | 0.63 | ||
6016 | 80X125X22 | 0.858 | ||
6017 | 85X130X22 | 0.88 | ||
6018 | 90X140X24 | 1.16 | ||
6019 | 95X145X24 | 1.18 | ||
6020 | 100X150X24 | 1.22 | ||
6021 | 105X160X26 | 1.56 | ||
6022 | 110X170X28 | 1.95 | ||
6024 | 120X180X28 | 1.99 | ||
6026 | 130X200X33 | 3.08 | ||
6028 | 140X210X33 | 3.17 | ||
6030 | 150X225X35 | 3.903 | ||
6032 | 160X240X38 | 4.83 | ||
6034 | 170X260X42 | 6.5 | ||
6036 | 180X280X46 | 8.51 | ||
6038 | 190X290X46 | 8.865 | ||
6040 | 200X310X51 | 11.64 | ||
6044 | 220X340X56 | 19 | ||
6048 | 240X360X56 | 20 | ||
6052 | 260X400X65 | 28.8 | ||
Material
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.W33: With lubrication groove in outer ring,with three oil holes
6.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4
Application
Our products are mainly used in industrial fields, such as cement equipment, mining equipment, mill equipment, power plant equipment, paper making equipment, oil field equipment, metallurgical equipment, and so on. Large size bearing is our advantage.
Package& Our Services
1 . Single box packing, then in carton then in Pallet
2 . Standard export packing
3 . According customer demand .
a.In the Progress of the production,we completed testing and tracking
b.12 months gurantee peripd
c.The best service for you and the shortest delivery time.
Our company
Linqing zhonghong bearing co., LTD. Is a company with bearing production and sales, our company has many years of bearing support and industrial service experience in the industrial field. The company specializes in imported bearings, Domestic brands include: ZWZ bearing. Harbin HRB bearing, luoyang etc. Involving type: deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearing, spherical roller bearings, angular contact bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, needle roller bearings, joint bearings, outer spherical bearings, bearing special applications.
We seek development by reputation, benefit from management, and use service to compete with customers.Over the years,with good reputation and excellent quality, a complete set of sales system has been established, which has established long-term cooperative relations with hundreds of customers throughout the country.
Why chose us? What advantage do we have?
1, high evaluation
2, OEM is acceptable
3, Small order is ok, goods is in stock.
4, Sample lead time: 1 days, bulk delivery day: 1-3 days
5, Our moldings are over 4000 sets.
6, Our company is factory manufacturer with 10 years experience.
7, gold service, diamond quality, stone price
