Innovate ZH Bearing,
and Rotate the Peak of Bearing World！
Begins with customer needs ,and finally customer satisfaction.
Sales & Support:

|
| Place of Origin: | China Fujian |
| Brand Name: | ZH |
| Certification: | IS09001 |
| Model Number: | 22313CA |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | interview |
| Packaging Details: | Your requirement |
| Delivery Time: | 5-15 days |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 30000 Set/Sets per Month |
| Product Name: | Spherical Roller Bearing | Model: | 22313CA |
|---|---|---|---|
| MOQ: | 1 | Price: | Factory Price |
| Supply: | 30000 Set/Sets Per Month | Quality: | Good Quality |
| Material: | CHROME STEEL | Size: | 65*140*48mm |
| High Light: | 22313E Spherical Roller Bearing,22313W33 Spherical Roller Bearing |
||
Professional production CHROME STEEL 22313CA 22313W33 22313E Spherical Roller Bearing 65*140*48mm
P0 P5 P4 P3 P2 Quality Level
Product introduction
22313 CA Spherical Roller Bearing are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. The performance of these spherical is achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications. Spherical roller bearings are due to their design subjected to significant axial and radial loads.
| d |
65 mm
|
Bore diameter |
|---|---|---|
| D |
140 mm
|
Outside diameter |
| B |
48 mm
|
Width |
| d2 |
≈81.6 mm
|
Shoulder diameter of inner ring |
| D1 |
≈118 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| Da |
max.128 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
357 kN
|
|---|---|---|
| Basic static load rating | C0 |
360 kN
|
| Fatigue load limit | Pu |
38 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 000 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Da |
max.128 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
22313CA Collection
| NUP306 | NUP307=110 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | JMF151 |
| NUP307 | M2X146 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 | JMF195 |
| T7FC065 | M2X150 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | KMF125-PC200-8 |
| NUP207 | M2X170 | 15578 | NUP309 | NUP206=100 | KMF41-PC60-7 | 30309D=110 | T7FC055=300 | KMF160-PC360-7 |
| HMS072 | M2X210 | NUP306 | NUP206 | KMF90-PC200-6 | M2X63 | NUP207/NUP306 | NUP309 | MSG-27P |
| AP5S67 | AP5S53 | NUP307 | 6305M | M5X180 | NUP308=140 | 30309D | 30312D | HMGF57 |
| 11749/11710 | M5X130 | NUP205E | TM09 | 32205 | NUP307 | 30312D | 30314D | NUP2211=250 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | T7FC060 | NUP2208 | NUP2209 | 30312D | NUP207 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | NUP207 | NUP2211 | NUP2209 | 6008 | |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | 6213 | NUP308 | NUP2209 | NUP307 | |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | NUP308 | NUP309 | NUP2212 | 30311D | |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP307 |

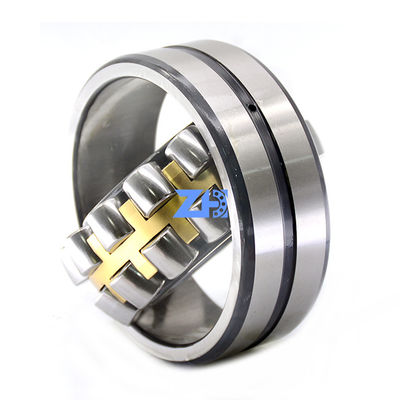

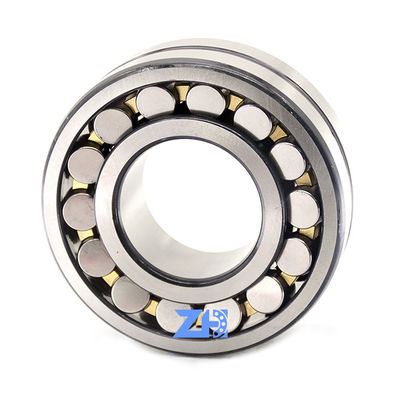

Picture show
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
