Place of Origin: | China |
Brand Name: | ZH |
Certification: | IS09001 |
Model Number: | 6203LLU |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | 1usd/pcs |
Packaging Details: | QR brand and Normal packing;Accoding to your requestment |
Delivery Time: | 2-5 days |
Payment Terms: | Western Union, L/C, D/A, D/P, T/T |
Supply Ability: | 1000 Pieces per month |
Product Name: | Deep Groove Radial Ball Bearing | Model: | 6203LLU |
---|---|---|---|
Weight: | 0.06 | MOQ: | 1 |
Size: | 17*40*12 | Supply: | 30000 Set/Sets Per Month |
Material: | CHROME STEEL | Quality: | P0、P2、P4、p5、p6 |
High Light: | excavator spare parts,mini excavator parts |
P0 P6 P5 P4 P3 QUALITY6203 6203LLU 6203z 62032z 62032RS 6203 6203N 6203ZN Deep Groove Radial Ball Bearing CHROME STEEL
This is a factory and the products are sold at the factory price (below the market price). Don't you want to have a try
Product introduction:
Deep groove ball bearing (GB/T 276-2003) formerly known as single-row radial ball bearing, is the most widely used rolling bearing. It is characterized by small friction resistance, high speed, can be used to bear radial load or radial and axial simultaneous action of the combined load on the machine parts, can also be used to bear axial load on the machine parts, such as small power motor, automobile and tractor transmission, machine tool gearbox, general machines, tools, etc
d |
17 mm
|
Bore diameter |
---|---|---|
D |
40 mm
|
Outside diameter |
B |
12 mm
|
Width |
d1 |
≈24.5 mm
|
Shoulder diameter |
D2 |
≈34.98 mm
|
Recess diameter |
r1,2 |
min.0.6 mm
|
Chamfer dimension |
da |
min.21.2 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.35.8 mm
|
Diameter of housing abutment |
ra |
max.0.6 mm
|
Radius of shaft or housing fil |
Basic dynamic load rating | C |
9.95 kN
|
---|---|---|
Basic static load rating | C0 |
4.75 kN
|
Fatigue load limit | Pu |
0.2 kN
|
Reference speed |
38 000 r/min
|
|
Limiting speed |
24 000 r/min
|
|
Minimum load factor | kr |
0.025
|
Calculation factor | f0 |
13
|
Product model | 6203LLU | specification | Standard - Dust proof | Inner and outer ring material | steel | Oil lubrication speed | 20000 |
Product type | Deep groove ball bearings | Rolling element material | steel | Size specifications | metric system | Model | 6014LLU |
General shipping date | Inquiry | Seal part structure | Open type | Inner diameter d | 17 | Internal clearance symbol | CM |
Load direction | radial | Internal clearance symbol | CM | Outer diameter D | 40 | Accuracy (JIS) | Level 0 |
Raceway wheel shape | Ball | Accuracy (JIS) | Level 0 | Width B(mm) | 12 | Grease lubrication speed | 16000 |
WEIGHT | 0,062 KG |
---|---|
SECTION | DEEP GROOVE BALL BEARING |
N° EAN13 | 3616060516572 |
INNER DIAMETER | 17 MM |
OUTER DIAMETER | 40 MM |
WIDTH | 12 MM |
PACKAGING | 1 |
PRODUCT REF | 6203-LLU |
We can offer:
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209
p0 p5 p2 p3 p4 p1
LLU ZZ DDU 2RS VV M 2Z ZN N
5908ZC | 2206ZC | 503806ZC | 30302ZC | 2209ZC | 309ZC |
206ZC | 055ZC | 32012ZC | 2304ZC | 6014ZC | 30209ZC |
207ZC | 060ZC | 32013ZC | 2305ZC | 6206ZC | 3020ZC |
30314ZC | 065ZC | 32207ZC | 243320ZC | 6208ZC | 2211ZC |
6906ZC | 070ZC | 32211ZC | 2820ZC | 6213ZC | 308ZC |
6922ZC | 205ZC | 32212ZC | 30205ZC | 6905ZC | 309ZC |
33207ZC | 208ZC | 354520ZC | 30211ZC | 304020ZC | 2208ZC |
345233ZC | 208ZC | 502515ZC | 30212ZC | 5904ZC | 30305ZC |
553830ZC | 209ZC | 503303ZC | 30213ZC | 2212ZC | 305ZC |

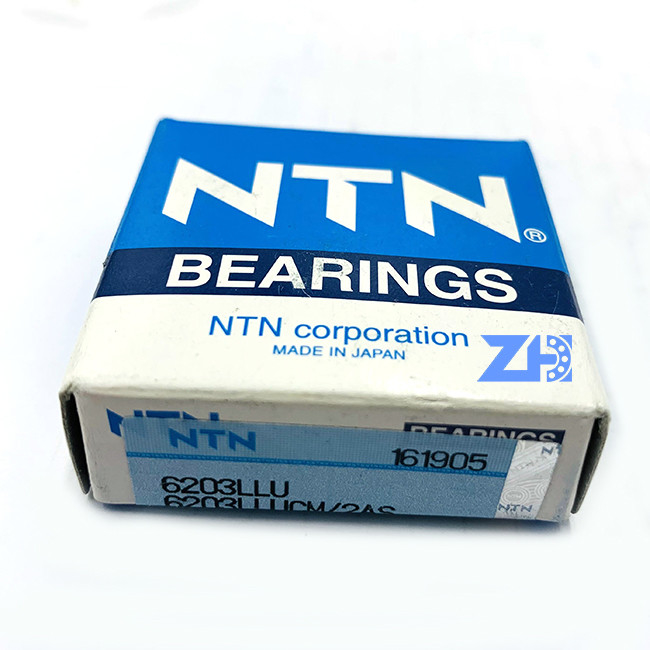

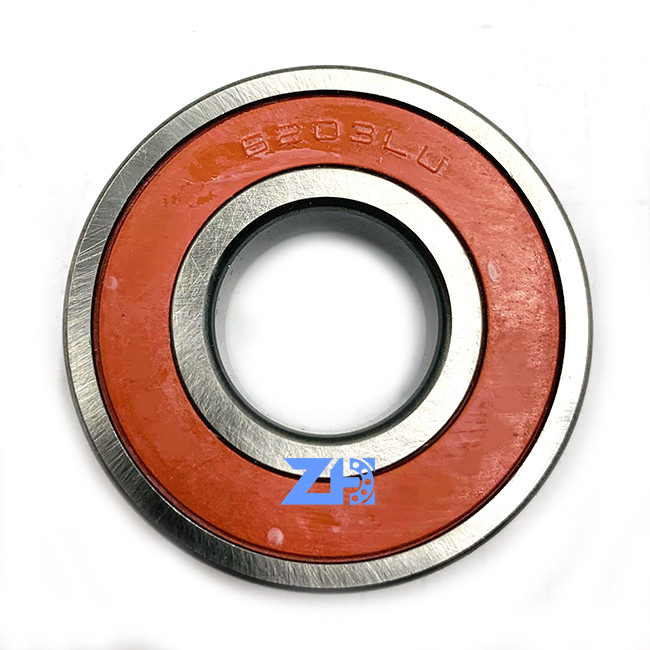

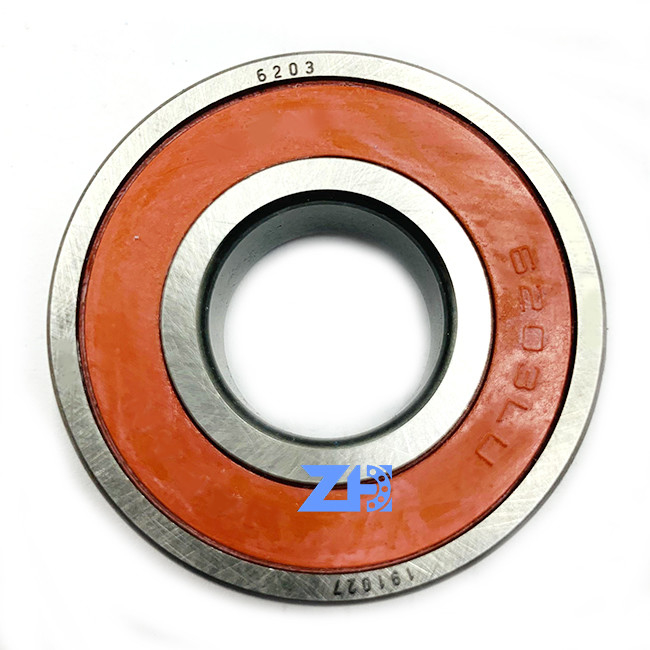

Picture show
Our advantages:
1. Let’s talk—we have NO barrier in language
2. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a
ready products!
3. Strong part number database. If you can provide the right model and part number, we can supply
the right product.
4. Professional and experienced salesperson.
5. Strict and complete company rules. We will try our best to meet customer’s delivery time. Before
delivery, we must verify the part number or pictures of products one by one, to make sure that
customers can receive high-quality and right-quantity goods.
6. Good management system. No matter how big or small order, as long as customers place the order, we
will provide exporting services free of charge.
7. Good service attitude. As long as customers’ requirements are reasonable, we will endeavour to make
them satisfied.
FAQ
Q : Do your product have quality guaranteed?
A : Sure.First of all, we have a group of responsible workers.However, if the product quality problem occurs
within one year, we will replace the goods for you or refund your money.
Q : Can your company provide sample?
A : Yes, if you want to check the goods, we can provide sample.
Q : How can i trace my order ?
A : We‘ll send you tracing no. by email and upddated details to you in time
Q : What should we do if we can't find what we want on your website?
A :
You can email us the descriptions and pictures of the products youneed,we will check whether we have them. We develop new itemsevery month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this itemfor bulk purchasing.
Q : Why choose us?
A :
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---We will have a ready - made product ready within 2 minutes of receiving the
quotation
