Place of Origin: | ShanDong, China (Mainland) |
Brand Name: | CN&ZH |
Model Number: | 23056 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD =-1-10 piece |
Packaging Details: | Conventional Package/As your request |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces days |
Bore Size: | 280 Mm | Outside Diameter: | 420 Mm |
---|---|---|---|
High: | 106 Mm | Feature: | High Quality/Long Life |
Material: | Chrome Steel/GCR 15 | Precision Rating: | P0 P6 P5 P4 P2 |
High Light: | roller cage bearing,split roller bearing |

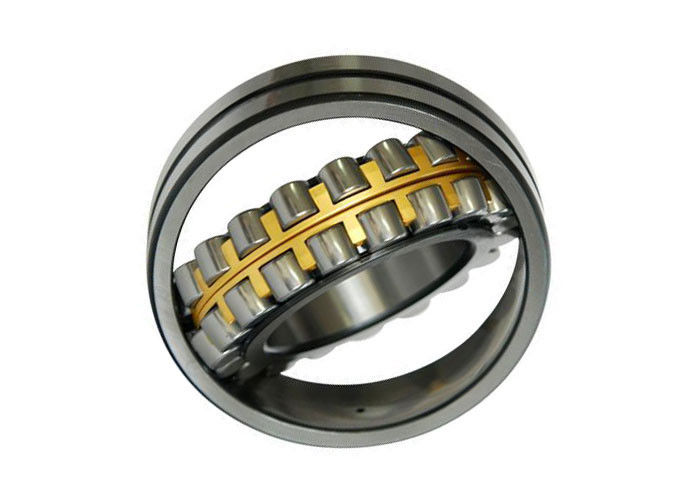

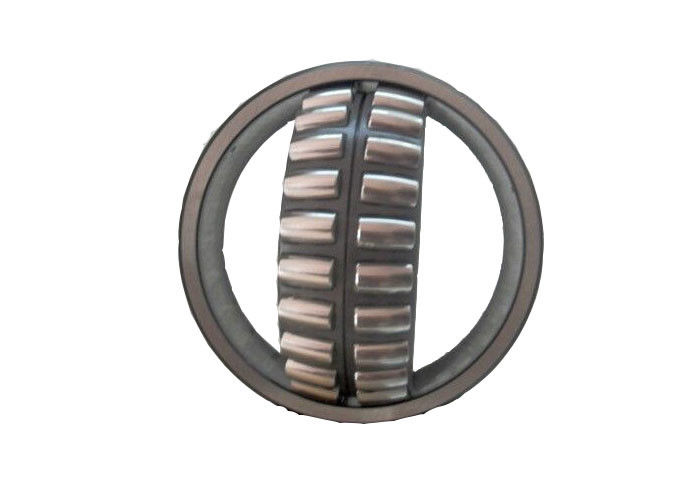

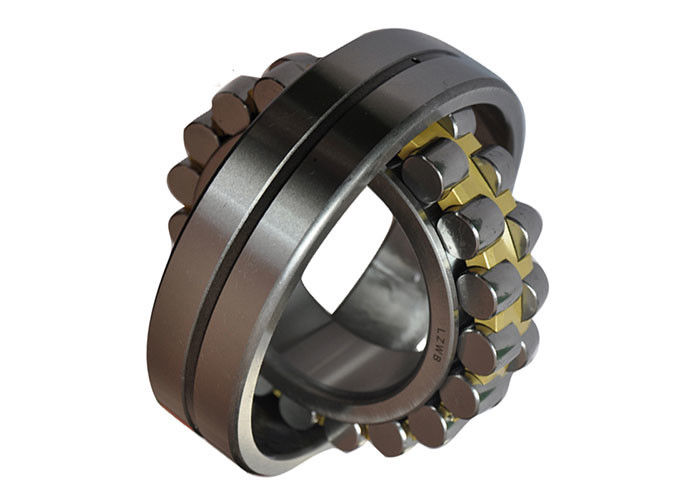

Product Description
Spherical roller bearing is divided into symmetrical and non symmetrical spherical roller spherical roller two different structure according to roller shape, non symmetrical spherical roller bearing is the early products, mainly for the host service, the new design is rarely used host symmetrical spherical roller bearing, through the comprehensive improvement of internal structure design and parameter optimization, compared with the spherical roller bearing early production, able to withstand greater axial load, the bearing operating temperature is low, so it can adapt to high speed requirements, according to the inner ring without flange and the holder is not the same can be divided into C type and CA type two, C type bearings without inner ring ribs and is the stamping steel cage, the characteristics of CA type bearing inner ring for Trent on both sides of the wall and the used car business entity retainer. In order to improve bearing lubriexcavatorion, to the user to provide outer ring spherical roller bearing with annular groove and three oil hole, expressed as a bearing post code /W33. According to the requirements of the user can also supply with spherical roller bearing inner ring oil hole, in order to facilitate customer handling and replacement of bearings, with taper roller bearings with inner hole, taper taper 1:12, after placing code is k said, in order to adapt to the user's special requirements can also provide taper 1:30 of the bearing and the rear code for the K30. The bearing with the taper of the inner hole can be directly mounted on the conical shaft neck by the locking nut, and the bearing can be installed on the cylindrical shaft neck by means of a tight set or a withdrawal sleeve.
Spherical roller bearings are divided into: cylindrical hole, tapered bore. Tapered bore taper 1:12 rear code for K spherical roller bearing type 153000 or 113000 (type) and 1:30 post code for K30 of spherical roller bearing, respectively. This kind of bearing shaft with a conical distribution, inner ring along the axial movement of the bearing can adjust radial clearance.
Specifiexcavatorion
New | Old | d | D | B | Cr | Cor | Grease | Oil | wt | da(min) | Da(max) | ra(max) |
22222BR | 3522 | 110 | 200 | 53 | 306 | 482 | 1500 | 2000 | 7.69 | 123 | 187 | 2.1 |
22322BR | 3622 | 110 | 240 | 80 | 536 | 769 | 1100 | 1500 | 18.3 | 125 | 225 | 3 |
22224BR | 3524 | 120 | 215 | 58 | 361 | 559 | 1400 | 1900 | 9.06 | 133 | 202 | 2.1 |
22324BR | 3624 | 120 | 260 | 86 | 628 | 949 | 1100 | 1400 | 23.4 | 136 | 244 | 3 |
22226BR | 3526 | 130 | 230 | 64 | 428 | 675 | 1400 | 1700 | 11.2 | 144 | 216 | 3 |
22326BR | 3626 | 130 | 280 | 93 | 720 | 1110 | 1000 | 1300 | 28.5 | 147 | 263 | 4 |
22228BR | 3528 | 140 | 250 | 68 | 490 | 770 | 1200 | 1700 | 14.3 | 155 | 235 | 3 |
22328BR | 3628 | 140 | 300 | 102 | 840 | 1300 | 900 | 1200 | 35.9 | 158 | 282 | 4 |
22230BR | 3530 | 150 | 270 | 73 | 560 | 890 | 1100 | 1500 | 18.1 | 165 | 255 | 3 |
22330BR | 3630 | 150 | 320 | 108 | 940 | 1470 | 800 | 1100 | 43.7 | 168 | 302 | 4 |
22232BR | 3532 | 160 | 290 | 80 | 650 | 1020 | 1100 | 1400 | 22.8 | 176 | 274 | 3 |
22332BR | 3632 | 160 | 340 | 114 | 1000 | 1560 | 800 | 1100 | 51.9 | 179 | 321 | 4 |
22234BR | 3534 | 170 | 310 | 86 | 730 | 1160 | 1000 | 1400 | 29.2 | 187 | 293 | 4 |
22334BR | 3634 | 170 | 360 | 120 | 1110 | 1760 | 700 | 1000 | 61.1 | 190 | 340 | 4 |
22236BR | 3536 | 180 | 320 | 86 | 770 | 1250 | 1000 | 1300 | 30 | 197 | 303 | 4 |
22336BR | 3636 | 180 | 380 | 126 | 1210 | 1920 | 700 | 900 | 71.4 | 201 | 359 | 4 |
22238BR | 3538 | 190 | 340 | 92 | 850 | 1430 | 900 | 1200 | 37.3 | 208 | 322 | 4 |
22338BR | 3638 | 190 | 400 | 132 | 1340 | 2130 | 700 | 900 | 82.7 | 211 | 379 | 5 |
SLJ08-106 | 34.925 | 80 | 23 | 74.6 | 76.9 | 3400 | 4400 | 0.816 | ||||
23148CA | 3053748 H | 240 | 400 | 128 | 1680 | 3060 | 700 | 930 | 66.3 | 259 | 381 | 4 |
23148MB | 240 | 400 | 128 | 1680 | 3060 | 700 | 930 | 66.3 | 259 | 381 | 4 | |
24148CA | 4053748 H | 240 | 400 | 160 | 2110 | 3880 | 520 | 700 | 83.2 | 259 | 381 | 4 |
23052CA | 3053152 H | 260 | 400 | 104 | 1420 | 2520 | 870 | 1200 | 49.8 | 278 | 382 | 4 |
24052CA | 4053152 H | 260 | 400 | 140 | 1650 | 3340 | 560 | 750 | 66 | 278 | 382 | 4 |
24152CA | 4053752 H | 260 | 440 | 180 | 2650 | 4940 | 480 | 640 | 115 | 281 | 419 | 4 |
23056CA | 3053156 H | 280 | 420 | 106 | 1480 | 2710 | 870 | 1200 | 53.8 | 299 | 401 | 4 |
23060CA | 3053160 H | 300 | 460 | 118 | 1810 | 3280 | 870 | 1200 | 74.5 | 320 | 440 | 4 |
22206BR | 3506 | 30 | 62 | 20 | 38 | 46 | 5100 | 6800 | 0.294 | 36 | 56 | 1 |
22207BR | 3507 | 35 | 72 | 23 | 50 | 62 | 4400 | 5900 | 0.447 | 42 | 65 | 1 |
22208BR | 3508 | 40 | 80 | 23 | 57 | 71 | 3900 | 5200 | 0.536 | 47 | 73 | 1 |
22308BR | 3608 | 40 | 90 | 33 | 85 | 107 | 3000 | 4000 | 1.03 | 48 | 82 | 1.5 |
22209BR | 3509 | 45 | 85 | 23 | 60 | 77 | 3700 | 4900 | 0.597 | 52 | 78 | 1 |
22309BR | 3609 | 45 | 100 | 36 | 108 | 141 | 2700 | 3600 | 1.43 | 53 | 92 | 1.5 |
22210BR | 3510 | 50 | 90 | 23 | 61 | 82 | 3400 | 4500 | 0.641 | 57 | 83 | 1 |
22310BR | 3610 | 50 | 110 | 40 | 134 | 175 | 2400 | 3200 | 1.87 | 59 | 101 | 2 |
22211BR | 3511 | 55 | 100 | 25 | 75 | 100 | 3100 | 4100 | 0.849 | 63 | 92 | 1.5 |
22311BR | 3611 | 55 | 120 | 43 | 158 | 208 | 2300 | 2900 | 2.43 | 65 | 110 | 2 |
